Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the idler arm on the frame.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the idler arm mounting bolts and nuts to the frame.

    Tighten

    Tighten the idler arm mounting bolt and nuts to 108 N.m (79 lb ft).

    Fig 1: Installing Idler Arm Mounting Bolts & Nuts To Frame
    G01467344Courtesy of GENERAL MOTORS CORP.
  3. Install the relay rod to the idler arm ball stud. Ensure that the seal is on the stud.
  4. Seat the taper using J 29193  or J 29194.

    Tighten

    Tighten the J 29193  or J 29194  to 54 N.m (40 lb ft).

  5. Remove J 29193  or J 29194  from the idler arm ball stud.
  6. Install the new nut to the idler arm ball stud.

    Tighten

    Tighten the idler arm ball stud nut to 82 N.m (60 lb ft).

  7. Install differential carrier shield.
  8. Install differential carrier shield mounting bolts.

    Tighten

    Tighten the differential carrier shield mounting bolts to 25 N.m (19 lb ft).

  9. Install steering linkage shield. Refer to STEERING LINKAGE SHIELD REPLACEMENT .
  10. Lower the vehicle.
  11. Adjust the front toe. Refer to FRONT TOE ADJUSTMENT in Wheel Alignment.

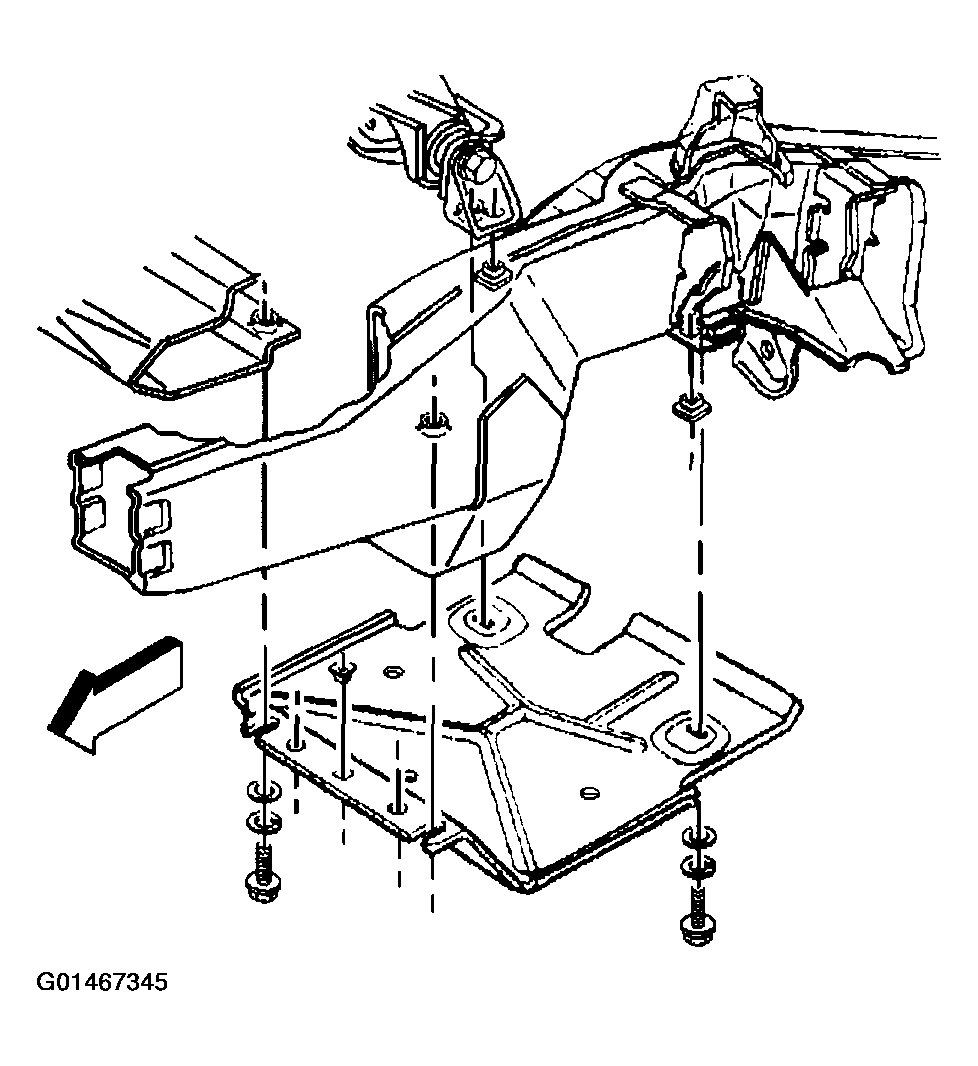

    Fig 2: Differential Carrier Shield Mounting Bolts
    G01467345Courtesy of GENERAL MOTORS CORP.
