Assembly Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the O-ring seal (3) with power steering fluid.
  2. Install the O-ring seal (3) into the steering gear housing (5).
  3. Install the plug (2).
  4. Install the retaining ring (1). Ensure that the retaining ring open end is approximately 25 mm (1 in) from the access hole in the steering gear housing (5).

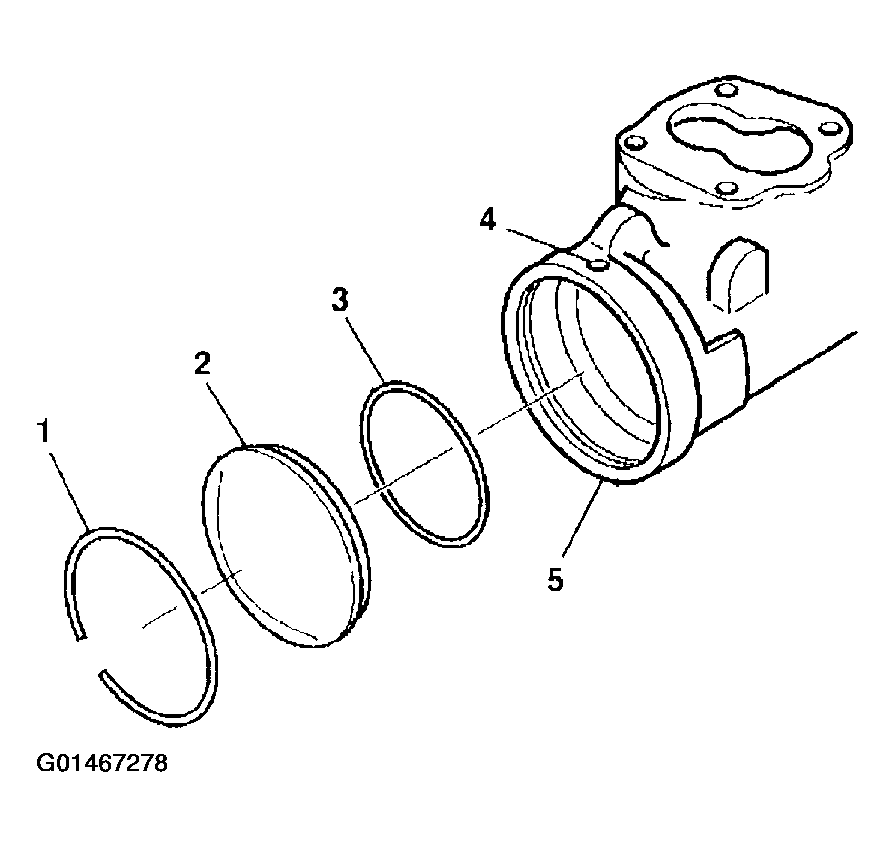

Fig 1: Installing O-Ring Seal Into Steering Gear Housing
G01467278Courtesy of GENERAL MOTORS CORP.
