Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE in Cautions and Notices.
  1. Remove the air cleaner assembly.
  2. Install a drain pan under the vehicle.
  3. Disconnect the power steering gear pressure hose from the power steering pump.

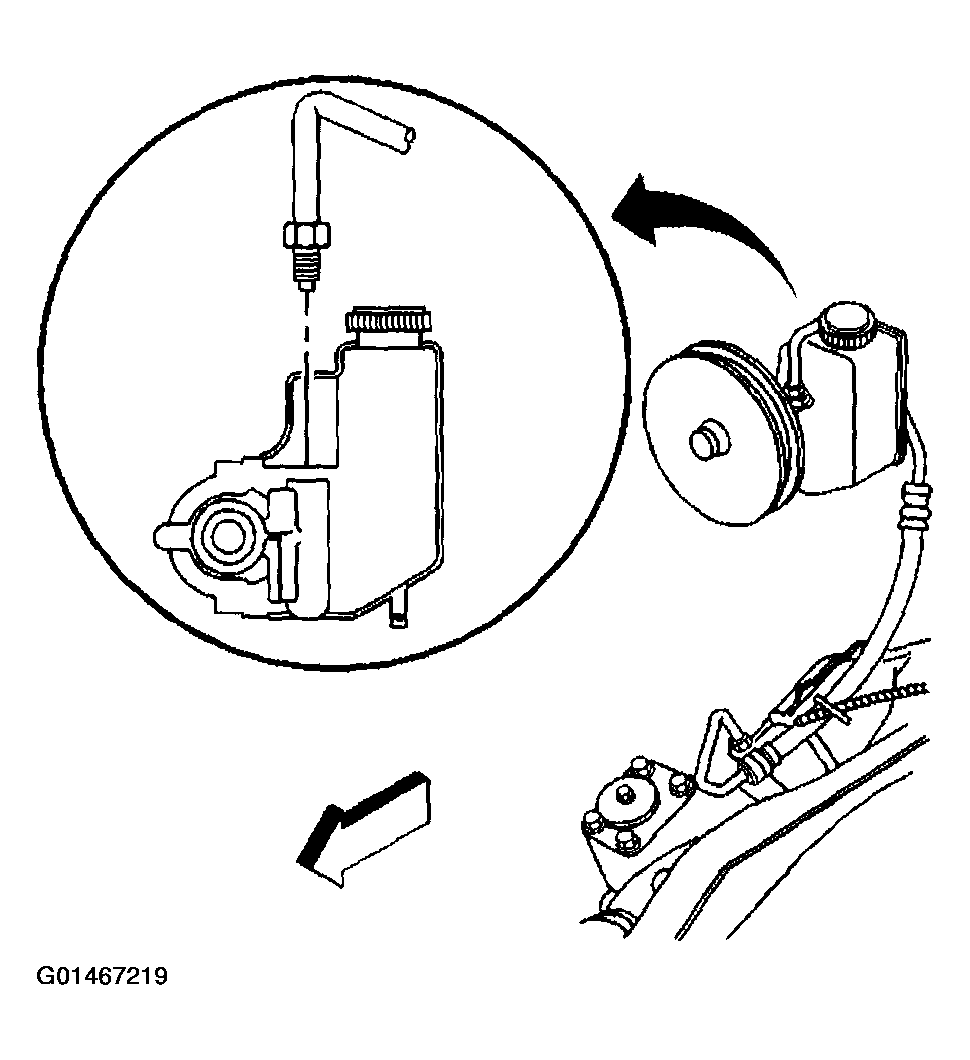

    Fig 1: Disconnecting Power Steering Gear Pressure Hose From Power Steering Pump
    G01467219Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the power steering gear pressure hose from the power steering gear.
  5. Remove the power steering gear pressure hose from the vehicle.

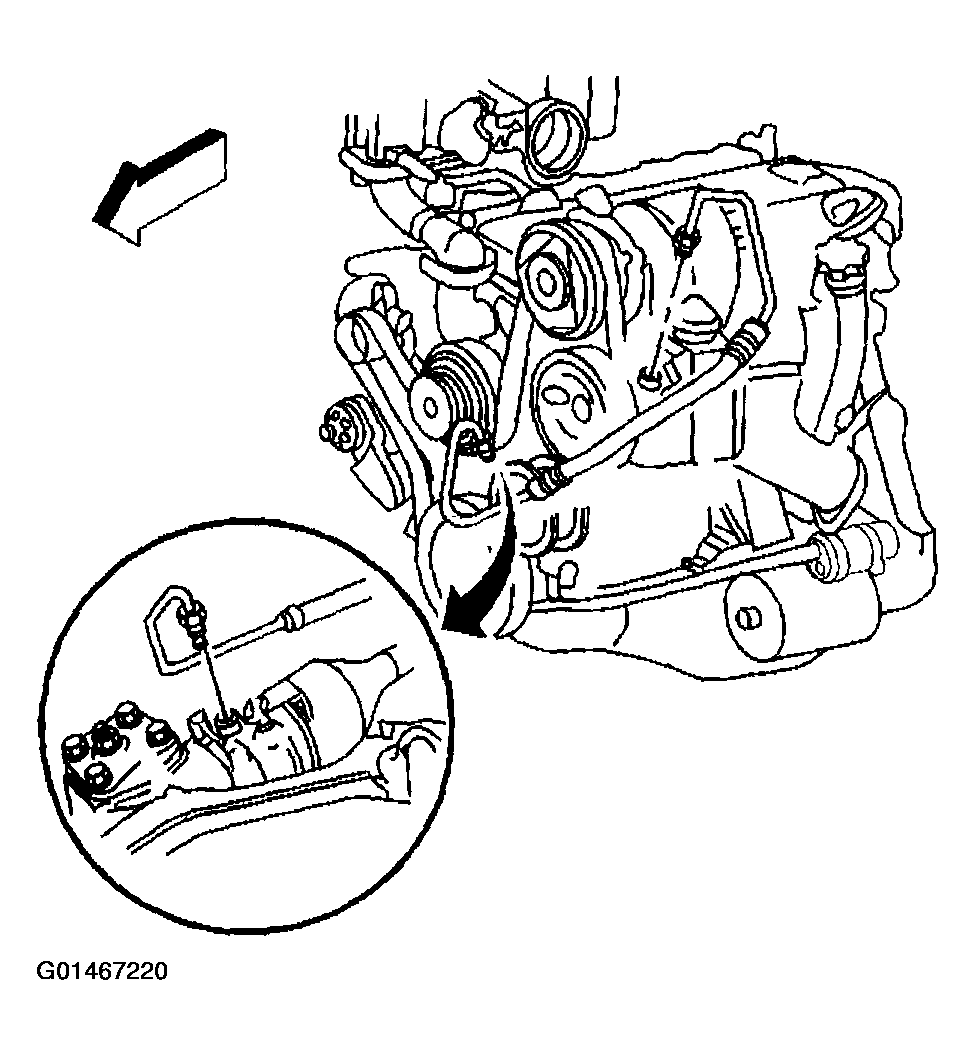

Fig 2: Removing Power Steering Gear Pressure Hose From Vehicle
G01467220Courtesy of GENERAL MOTORS CORP.
