Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to INSTALLING HOSES WITHOUT TWISTS OR BENDS NOTICE in Cautions and Notices.
  1. Install the power steering gear pressure hose to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Connect the power steering gear pressure hose to the power steering gear.

    Tighten

    Tighten the power steering gear pressure hose to the power steering gear to 25 N.m (18 lb ft).

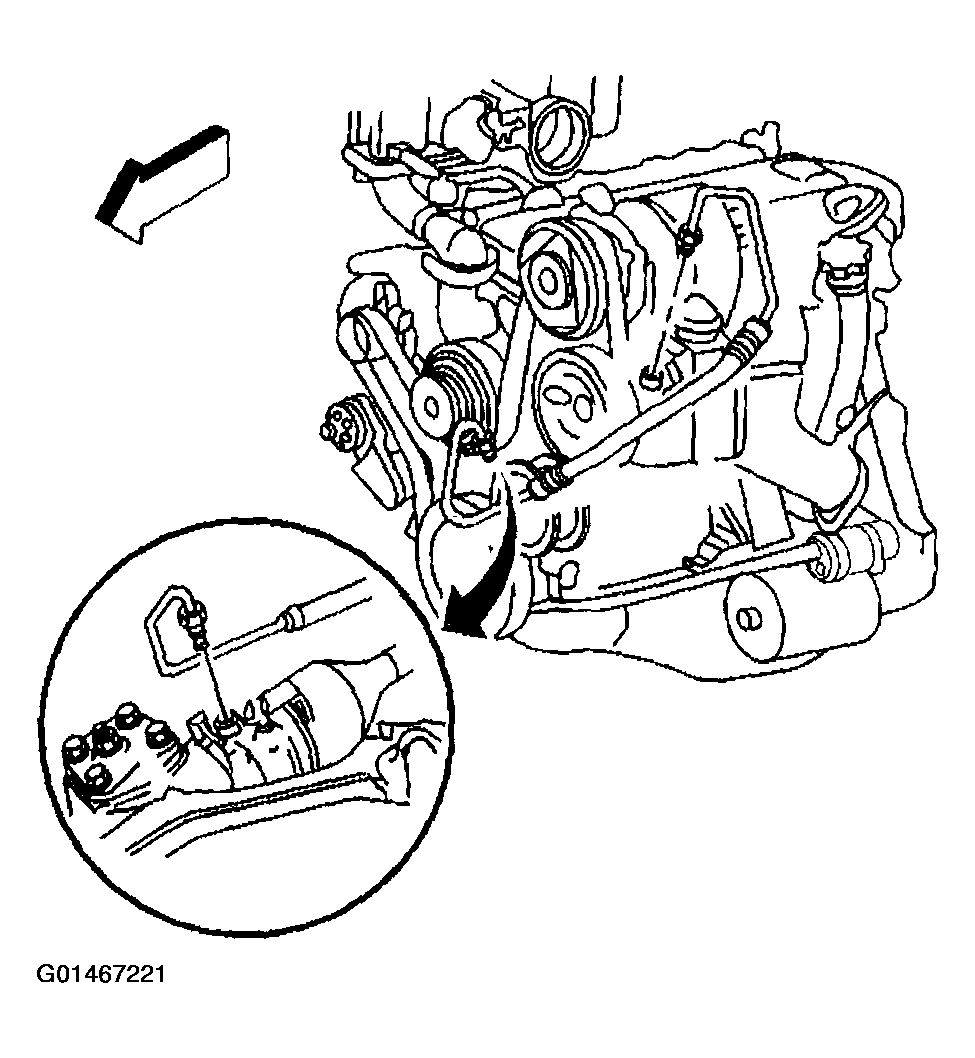

    Fig 1: Installing Power Steering Gear Pressure Hose To Vehicle
    G01467221Courtesy of GENERAL MOTORS CORP.
  3. Connect the power steering gear pressure hose to the power steering pump.

    Tighten

    Tighten the power steering gear pressure hose to the power steering pump to 25 N.m (18 lb ft).

  4. Remove the drain pan from under the vehicle.
  5. Install the air cleaner assembly.
  6. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM .

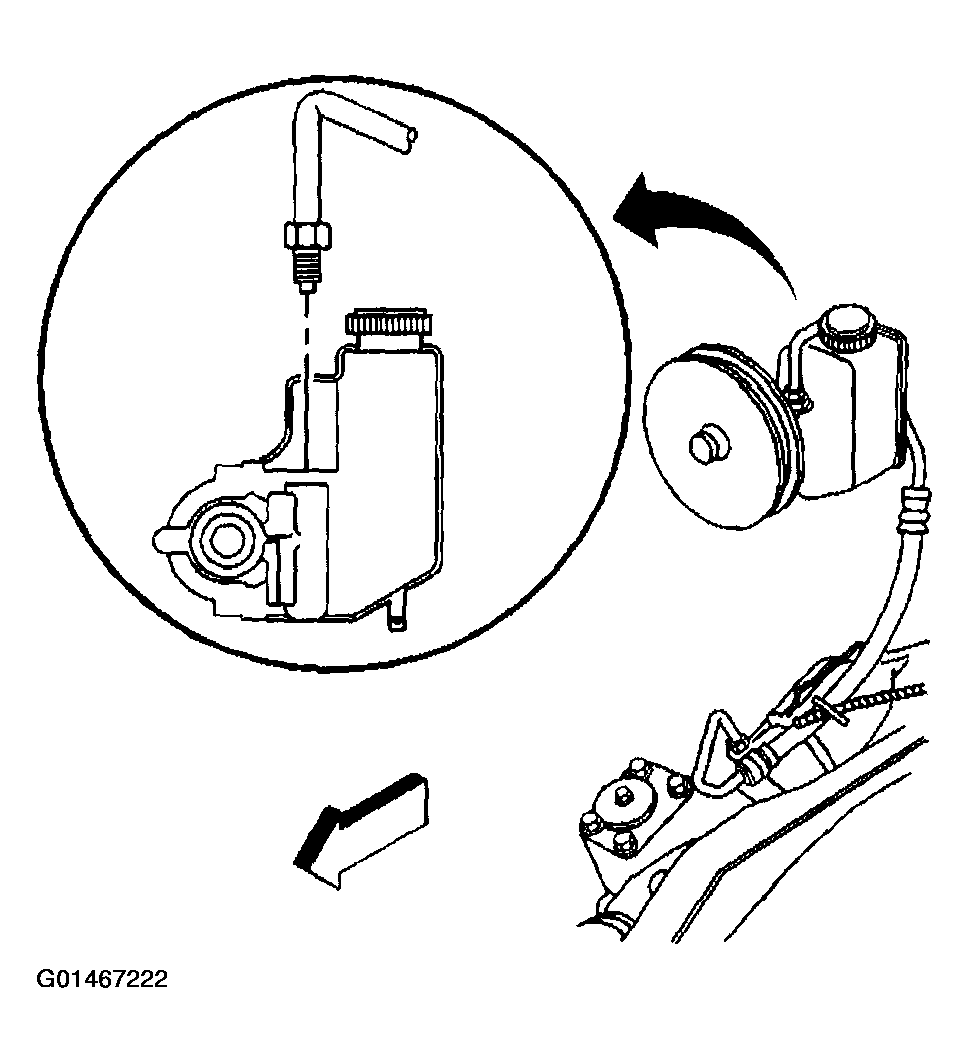

Fig 2: Connecting Power Steering Gear Pressure Hose To Power Steering Pump
G01467222Courtesy of GENERAL MOTORS CORP.
