Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE in Cautions and Notices.

Remove the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY REPLACEMENT in Engine Controls 4.3L.
Install a drain pan under the vehicle.
Disconnect the power steering cooler hoses from the power steering cooler.
Remove the Grille. Refer to GRILLE REPLACEMENT (GMC) or GRILLE REPLACEMENT (CHEVROLET) in Exterior Trim.

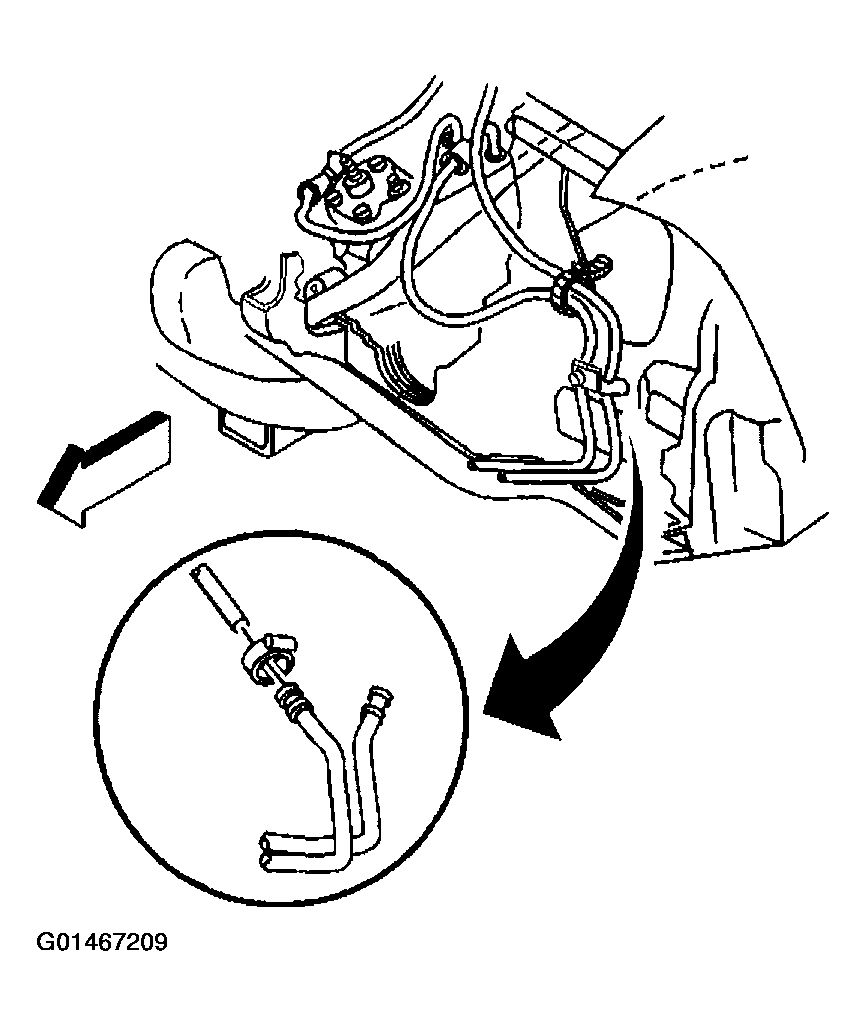

Fig 1: Disconnecting Power Steering Cooler Hoses From Power Steering Cooler (4.3L)
Courtesy of GENERAL MOTORS CORP.
Remove the radiator air intake baffle retaining clips from LH side.
Position the radiator air intake baffle out of the way.

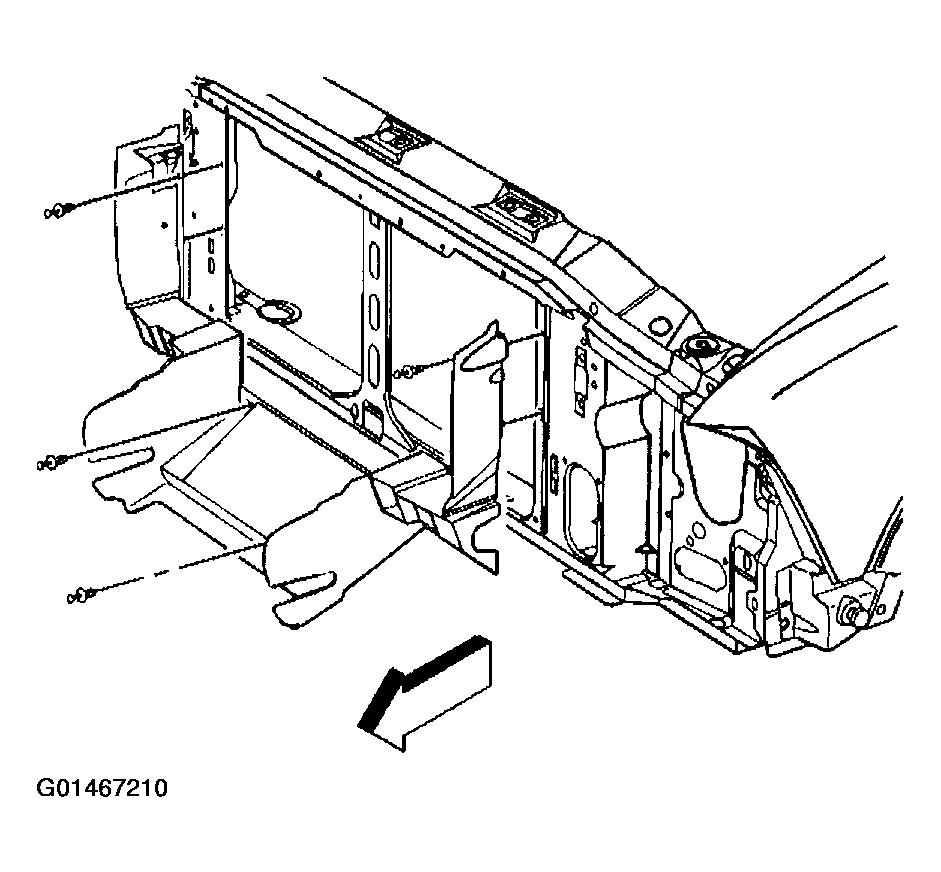

Fig 2: Removing Radiator Air Intake Baffle Retaining Clips From LH Side
Courtesy of GENERAL MOTORS CORP.
Remove the hood latch support mounting bolts.
Move the hood latch support forward.

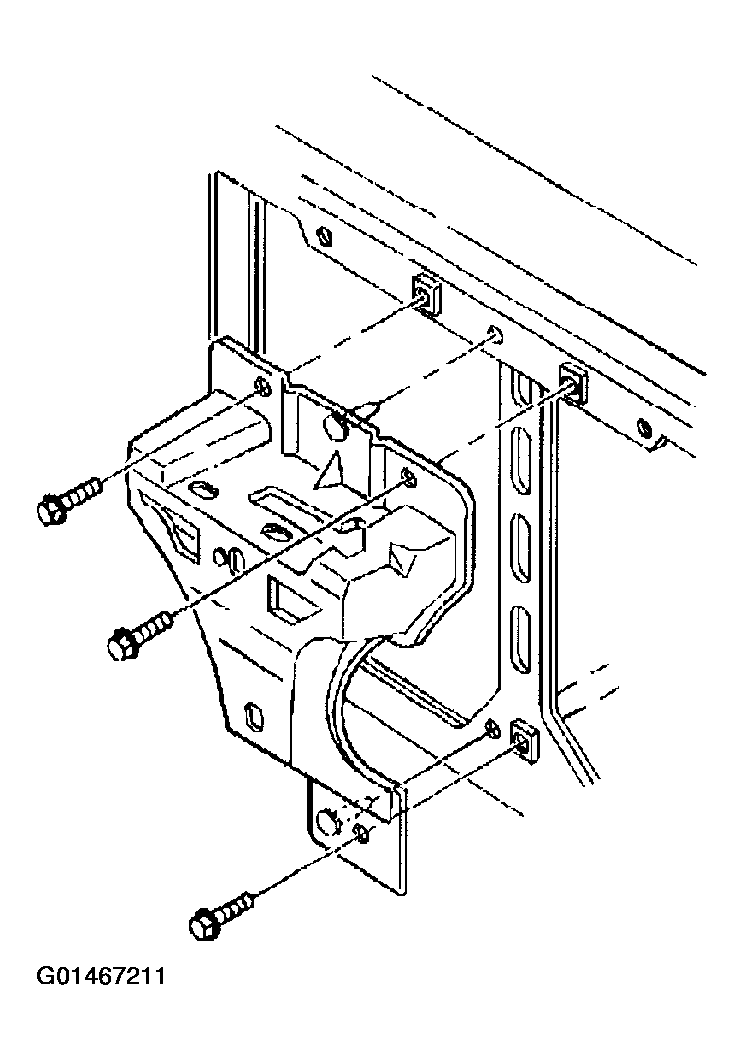

Fig 3: Hood Latch Support Mounting Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the power steering cooler retaining bolts.

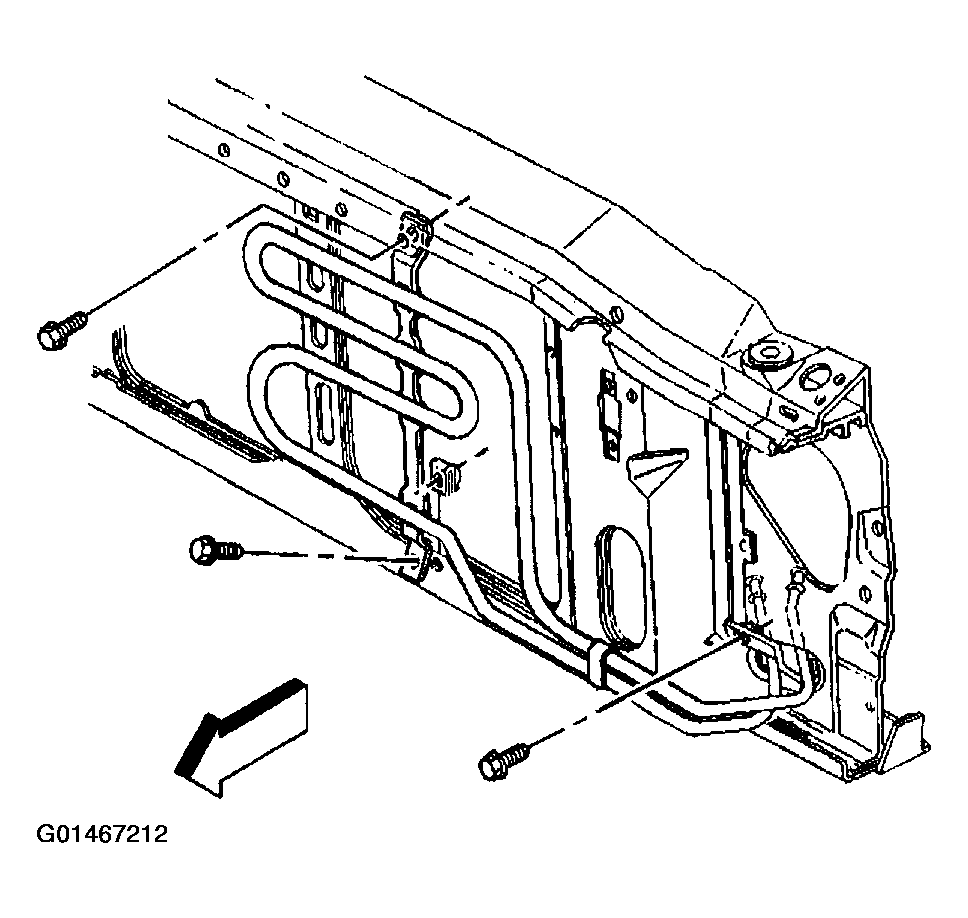

Fig 4: Power Steering Cooler Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the power steering cooler from the radiator support.

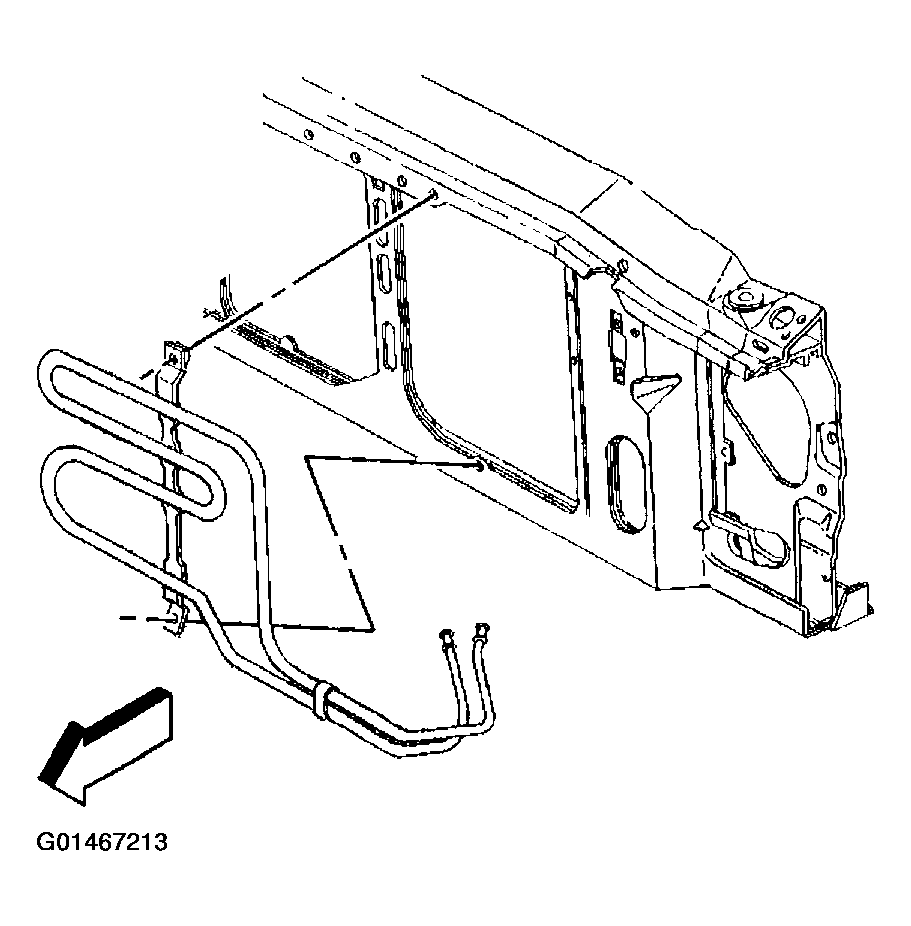

Fig 5: Removing Power Steering Cooler From Radiator Support

Courtesy of GENERAL MOTORS CORP.
