Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE in Cautions and Notices.

Remove the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY REPLACEMENT in Engine Controls 4.3L.
Install a drain pan under the vehicle.
Disconnect the power steering cooler hose from the power steering pump.

Fig 1: Disconnecting Power Steering Cooler Hose From Power Steering Pump (4.3L)
Courtesy of GENERAL MOTORS CORP.
Disconnect the power steering cooler hose from the power steering cooler.
Remove the power steering cooler hose from the vehicle.

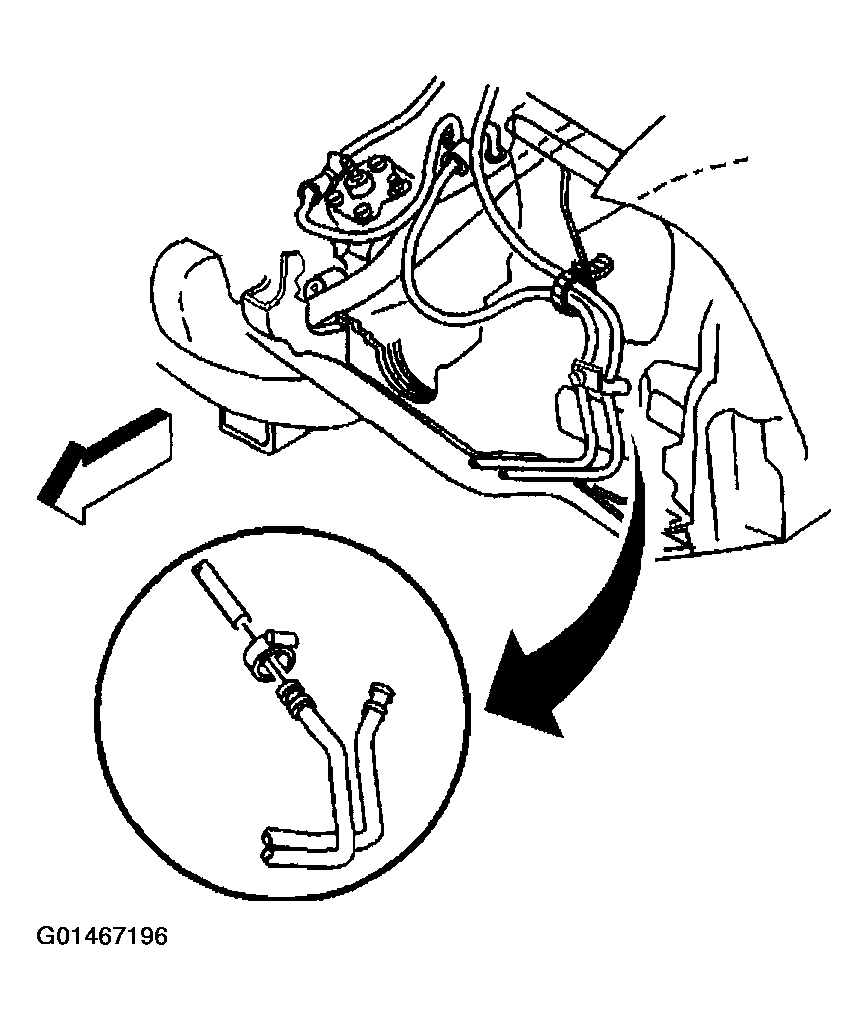

Fig 2: Removing Power Steering Cooler Hose From Vehicle

Courtesy of GENERAL MOTORS CORP.
