Power Steering Pump Disassembled View (CB Series)

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

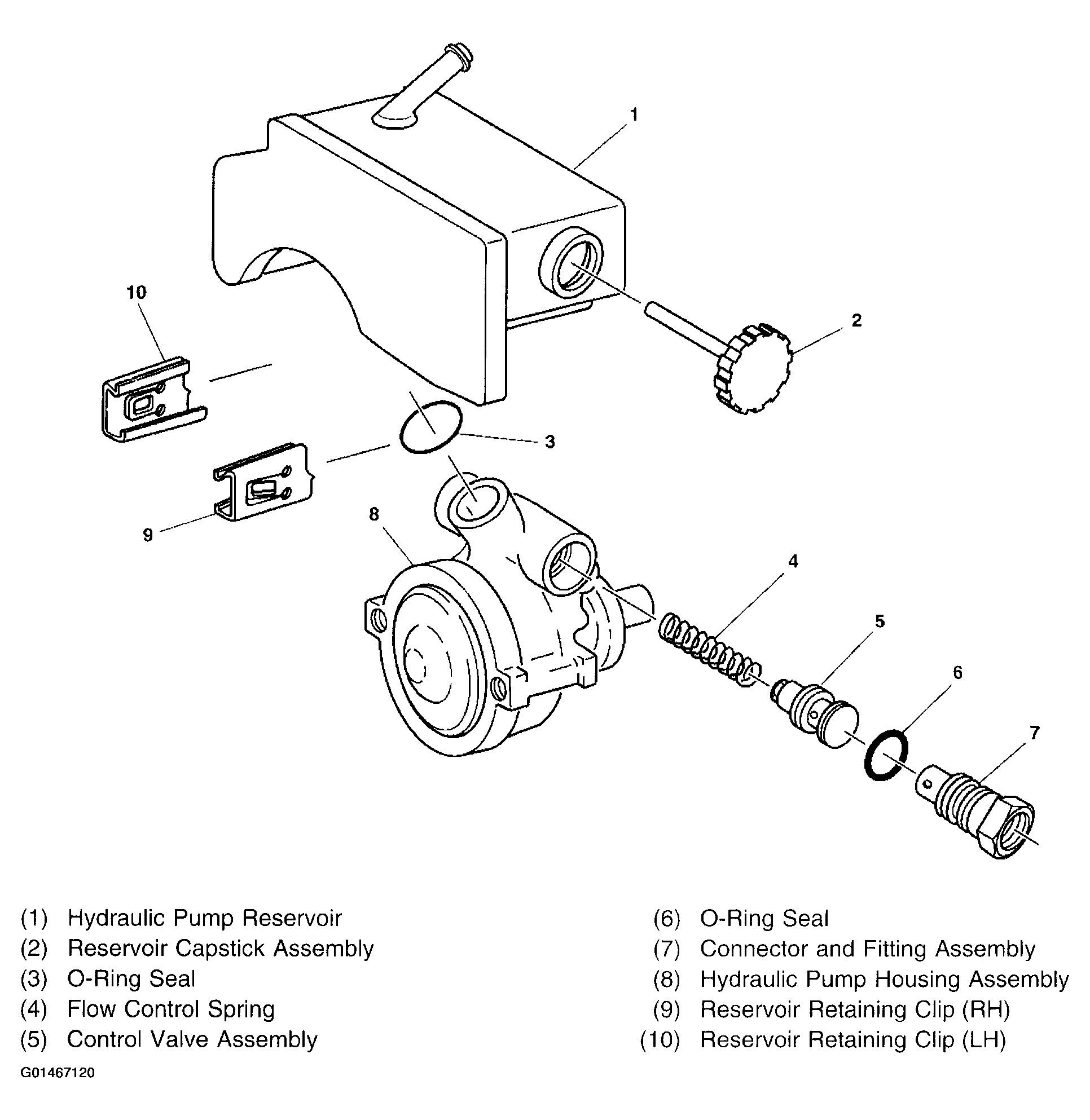

Fig 1: S/T Truck CB Series Power Steering Pump Reservoir
G01467120Courtesy of GENERAL MOTORS CORP.
