Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push up on the J-spring in order to release the storage compartment door.
  2. Firmly pull rearward to release the recirculation actuator (2) locking tab.

    Important:  The air inlet door is behind the air distribution duct.

  3. Remove the actuator rod from the recirculation door (1) by pushing the actuator up and to the left.
  4. Disconnect the vacuum connector from the recirculation actuator (2).
  5. Remove the recirculation actuator (2).

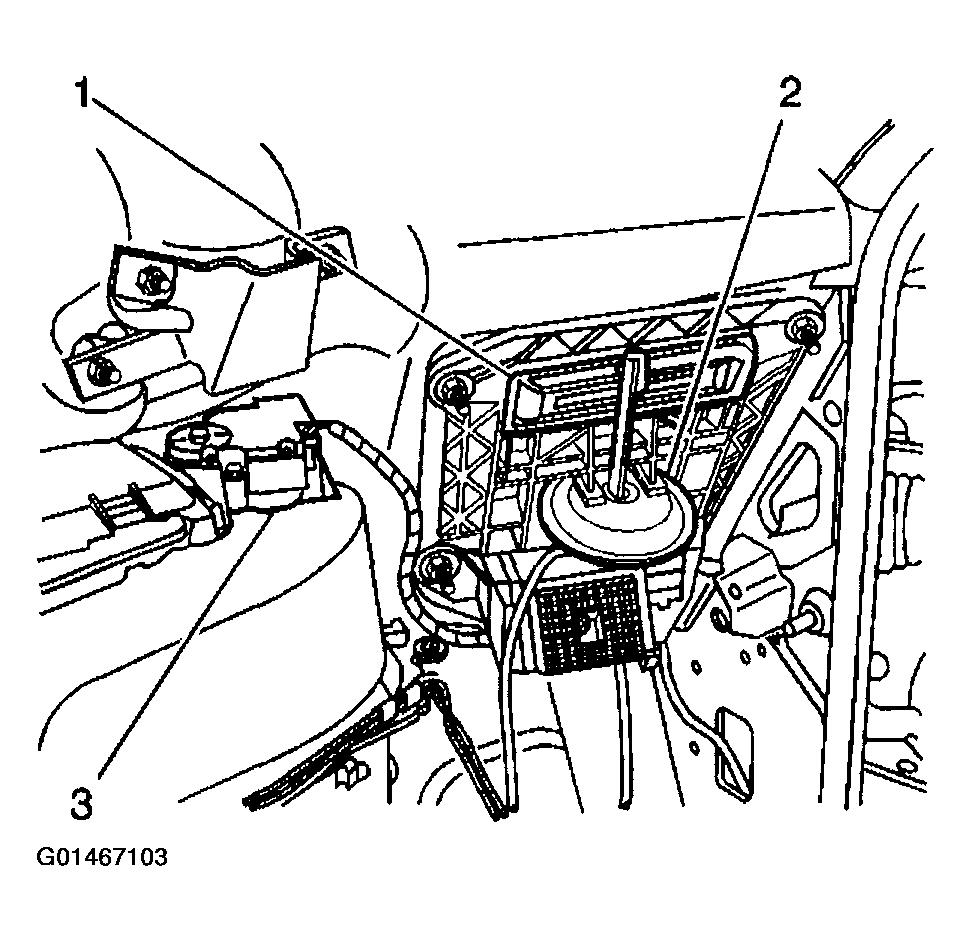

    Fig 1: Removing Actuator Rod From Recirculation Door
    G01467103Courtesy of GENERAL MOTORS CORP.
