Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

The mode actuator is located on the top left side of the HVAC module.

Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT in Instrument Panel, Gages, and Console.
Remove the right side driver knee bolster bracket (2) from the steering column bracket (1) and the intermediate bracket (3).

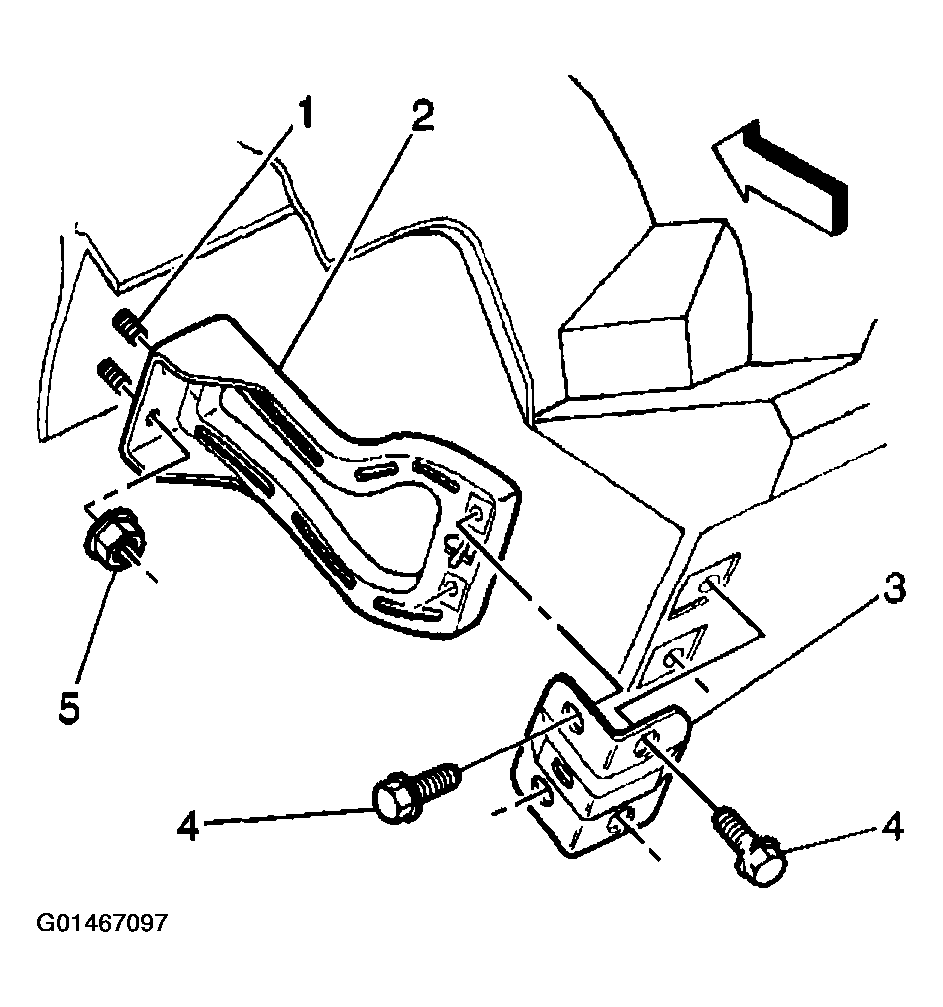

Fig 1: Removing Right Side Driver Knee Bolster Bracket From Steering Column Bracket
Courtesy of GENERAL MOTORS CORP.
Disconnect the vacuum connectors (1) from the mode actuator (5).
Remove the actuator rod retaining clip (4).
Remove the actuator rod (2) from the mode door lever (3).

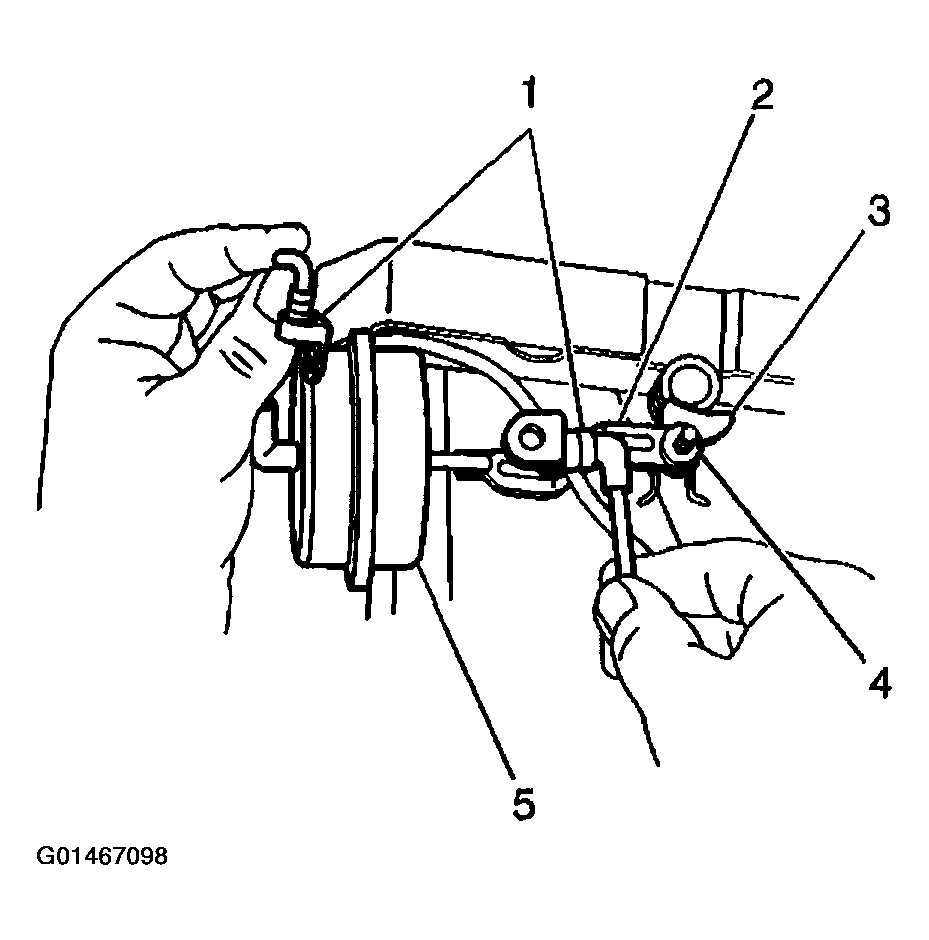

Fig 2: Disconnecting Vacuum Connectors From Mode Actuator
Courtesy of GENERAL MOTORS CORP.
Firmly pull on the mode actuator in order to remove the actuator from the HVAC module.

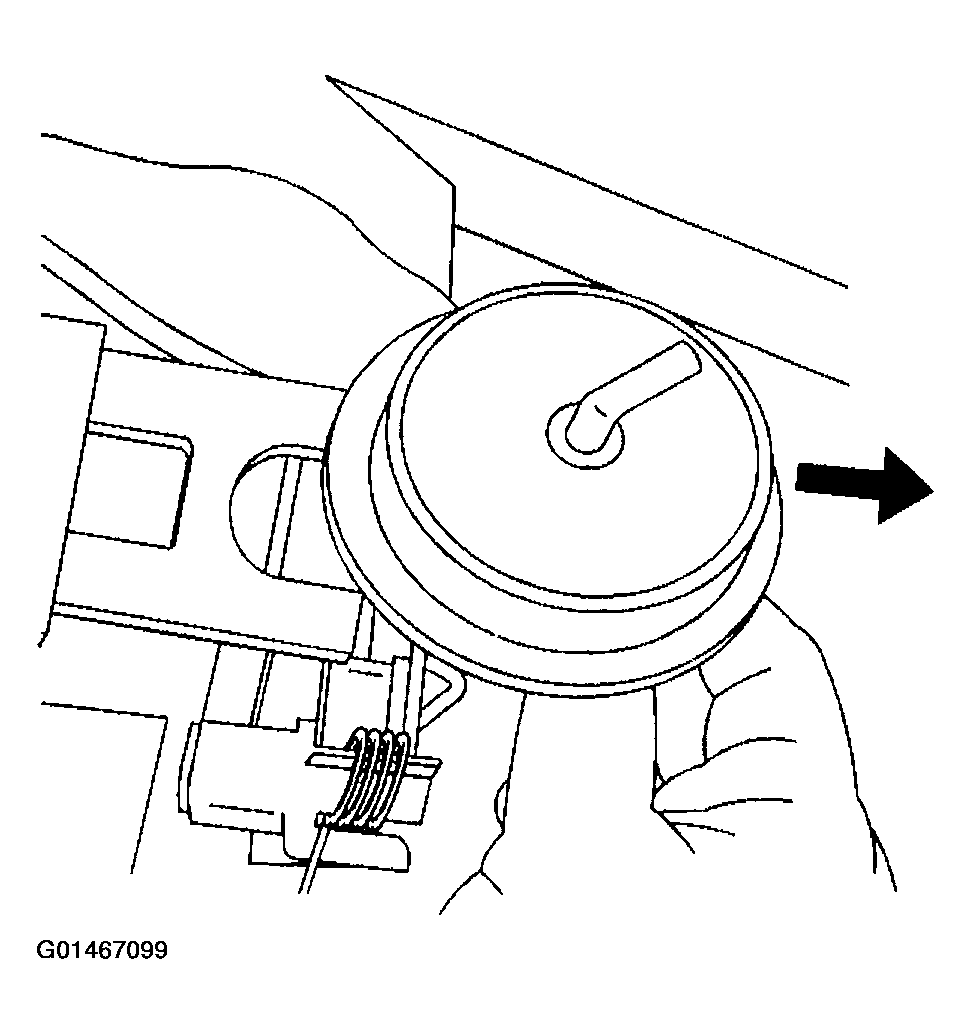

Fig 3: Removing Actuator From HVAC Module
Courtesy of GENERAL MOTORS CORP.
