Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the defroster actuator. Ensure that the retaining tab locks into place.

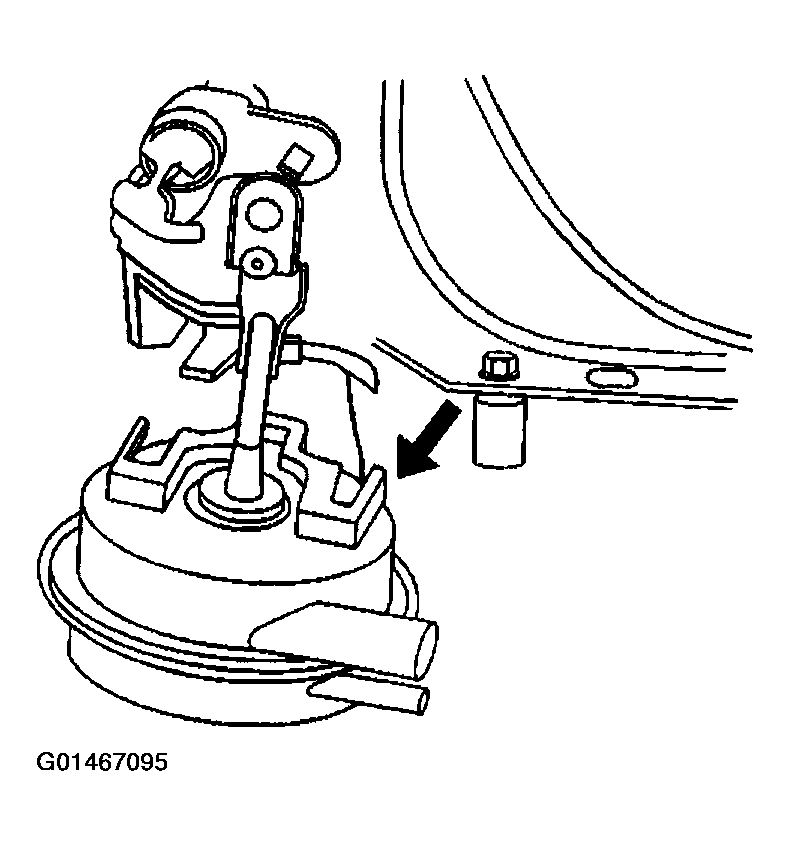

    Fig 1: Defroster Actuator
    G01467095Courtesy of GENERAL MOTORS CORP.
  2. Install the actuator rod (2) to the defroster door lever (5).
  3. Install the actuator rod retaining clip (1).
  4. Connect the vacuum connector (3) to the defroster actuator (4).
  5. Install the lower IP instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- INSTRUMENT PANEL (I/P) LOWER in Instrument Panel, Gages, and Console.
  6. Install the left side instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT in Instrument Panel, Gages, and Console.

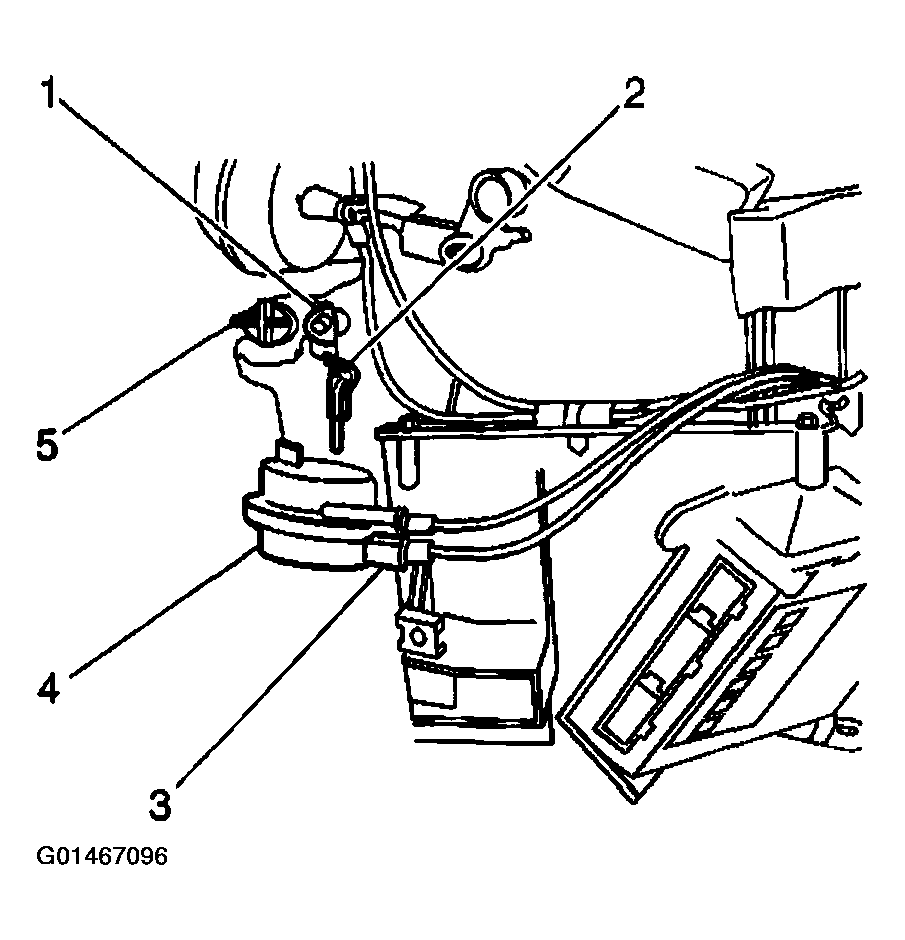

    Fig 2: Connecting Vacuum Connector To Defroster Actuator
    G01467096Courtesy of GENERAL MOTORS CORP.
