Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

The air temperature actuator is located on the top right hand side of the HVAC module.

Remove the instrument panel carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages, and Console.

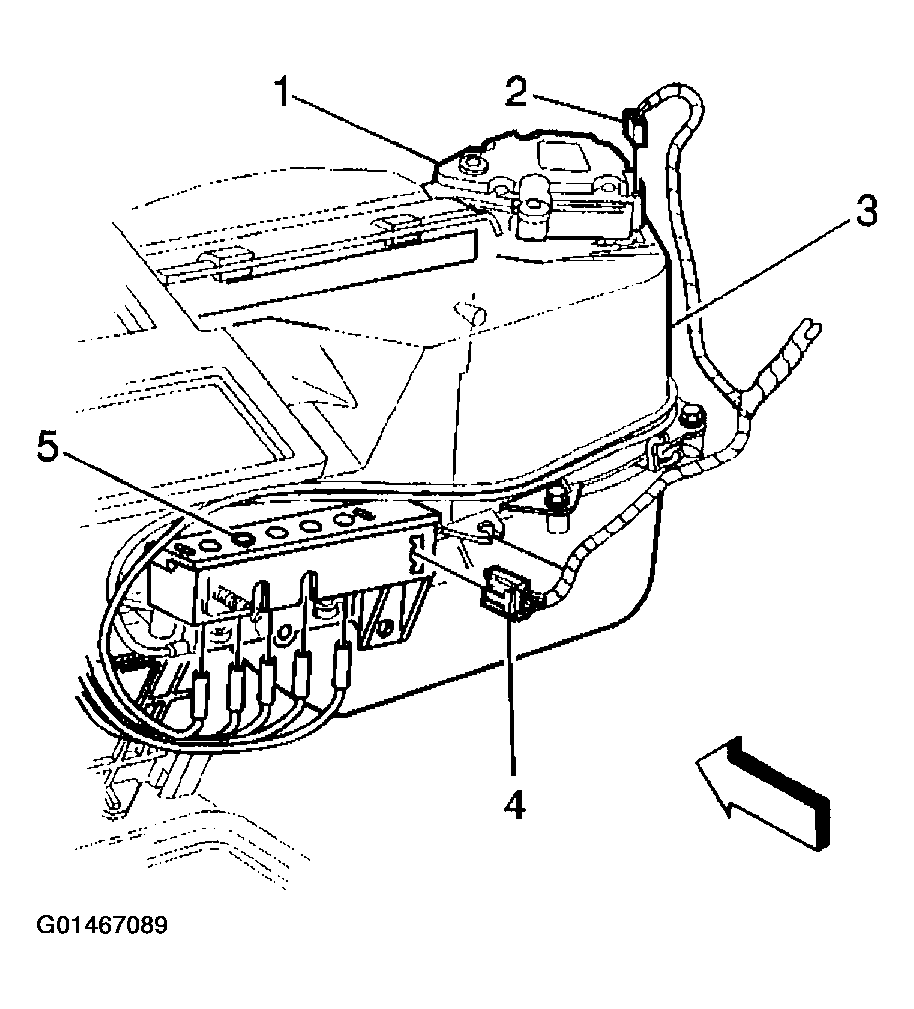

Fig 1: Disconnecting Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector (2).
Remove the air temperature actuator retaining screws.
Remove the air temperature actuator from the HVAC module.

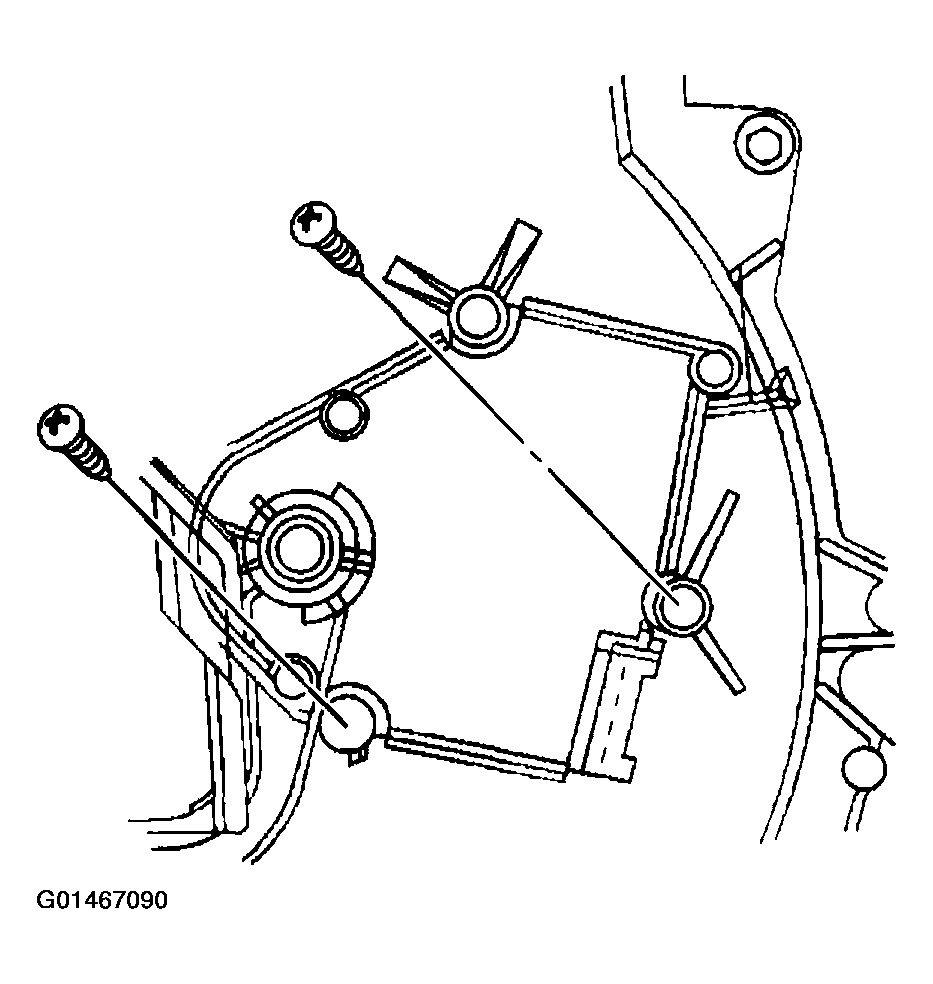

Fig 2: Air Temperature Actuator Retaining Screws
Courtesy of GENERAL MOTORS CORP.
