Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air temperature actuator to the HVAC module. Ensure that the actuator is seated on the locating tab.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the air temperature actuator retaining screws.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb ft).

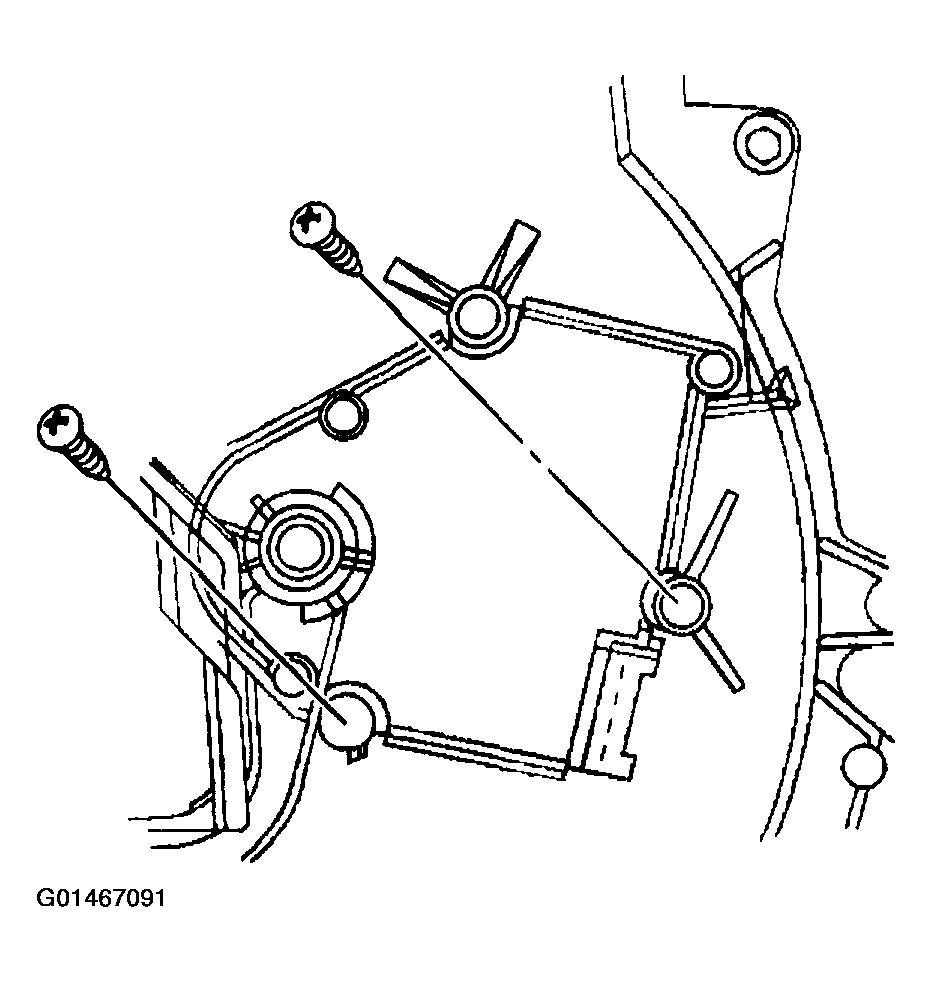

    Fig 1: Air Temperature Actuator Retaining Screws
    G01467091Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector (2).

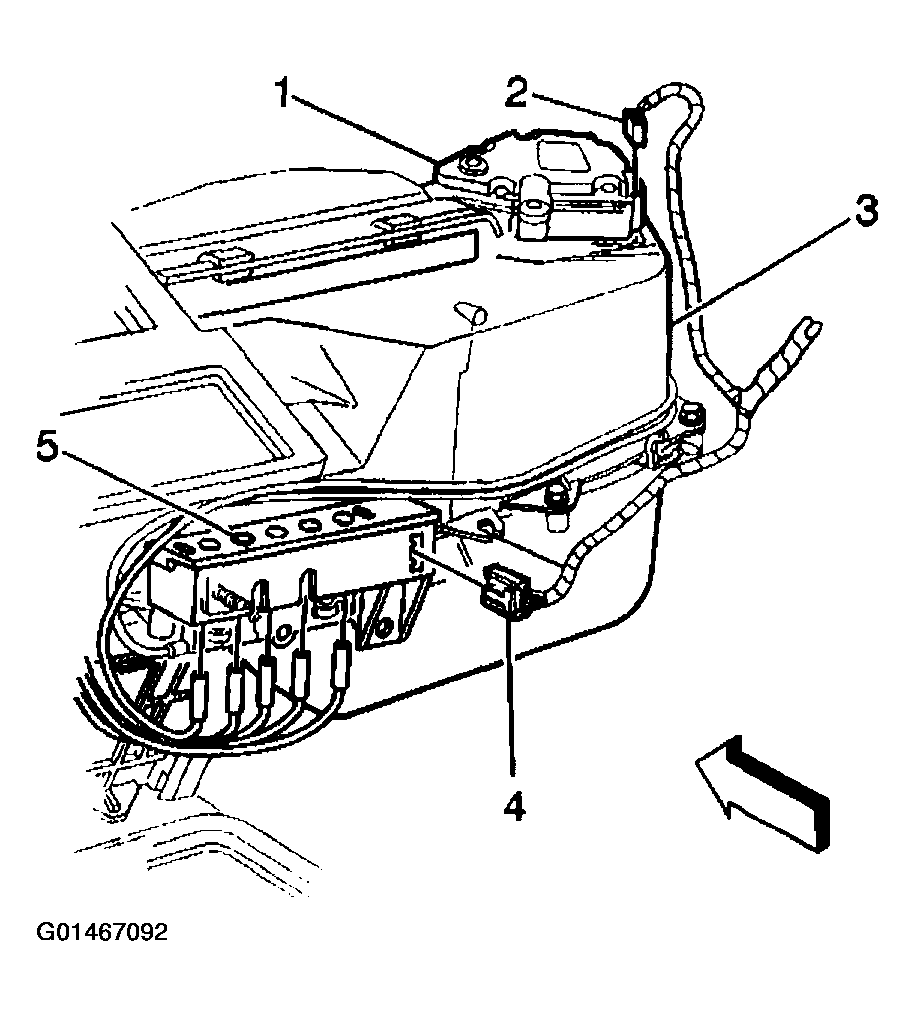

    Fig 2: Connecting Electrical Connector
    G01467092Courtesy of GENERAL MOTORS CORP.
  4. Install the instrument panel carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages, and Console.
