HVAC Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

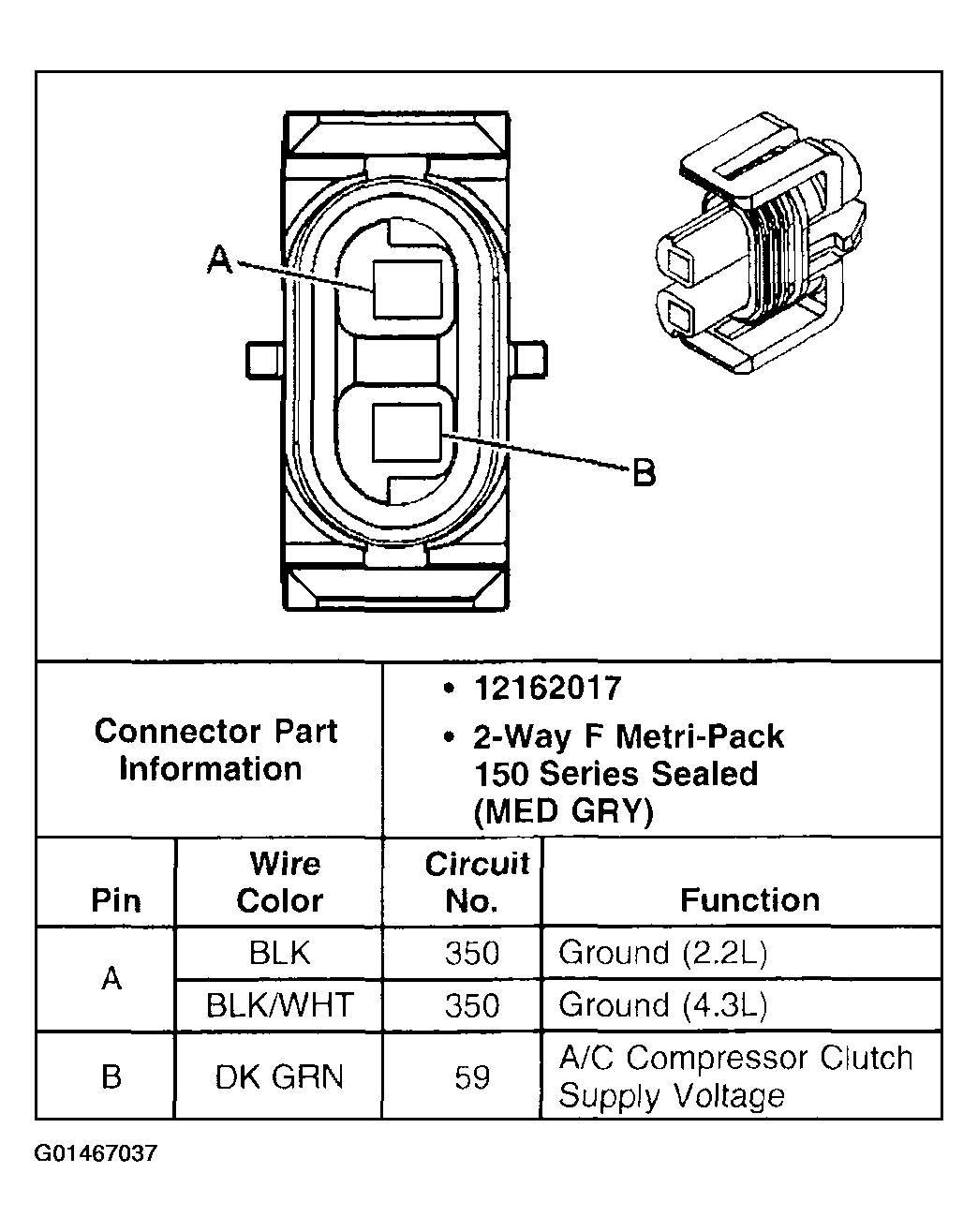

Fig 1: A/C Compressor Clutch

Courtesy of GENERAL MOTORS CORP.

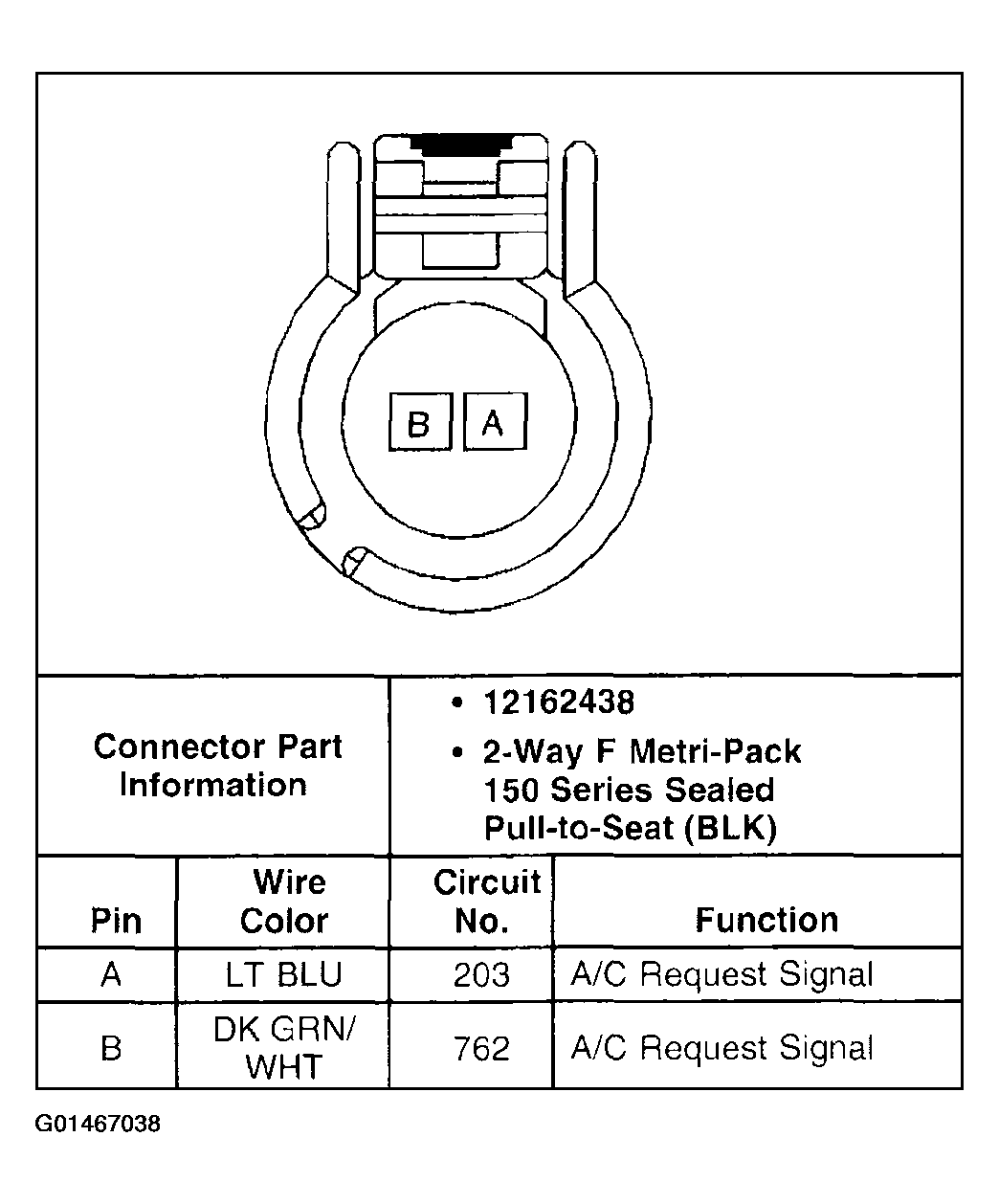

Fig 2: A/C High Pressure Switch (4.3L)

Courtesy of GENERAL MOTORS CORP.

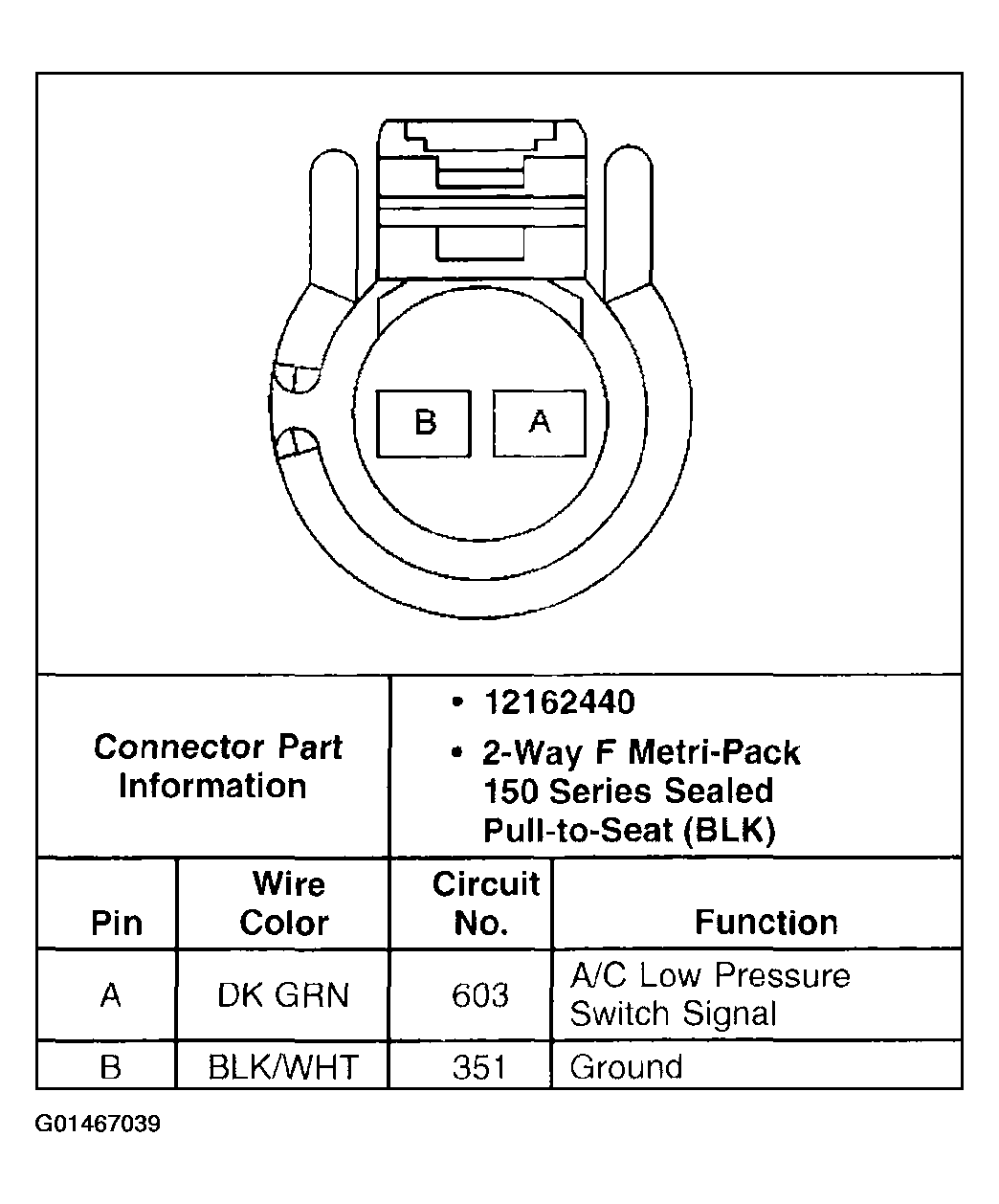

Fig 3: A/C Low Pressure Switch (4.3L)

Courtesy of GENERAL MOTORS CORP.

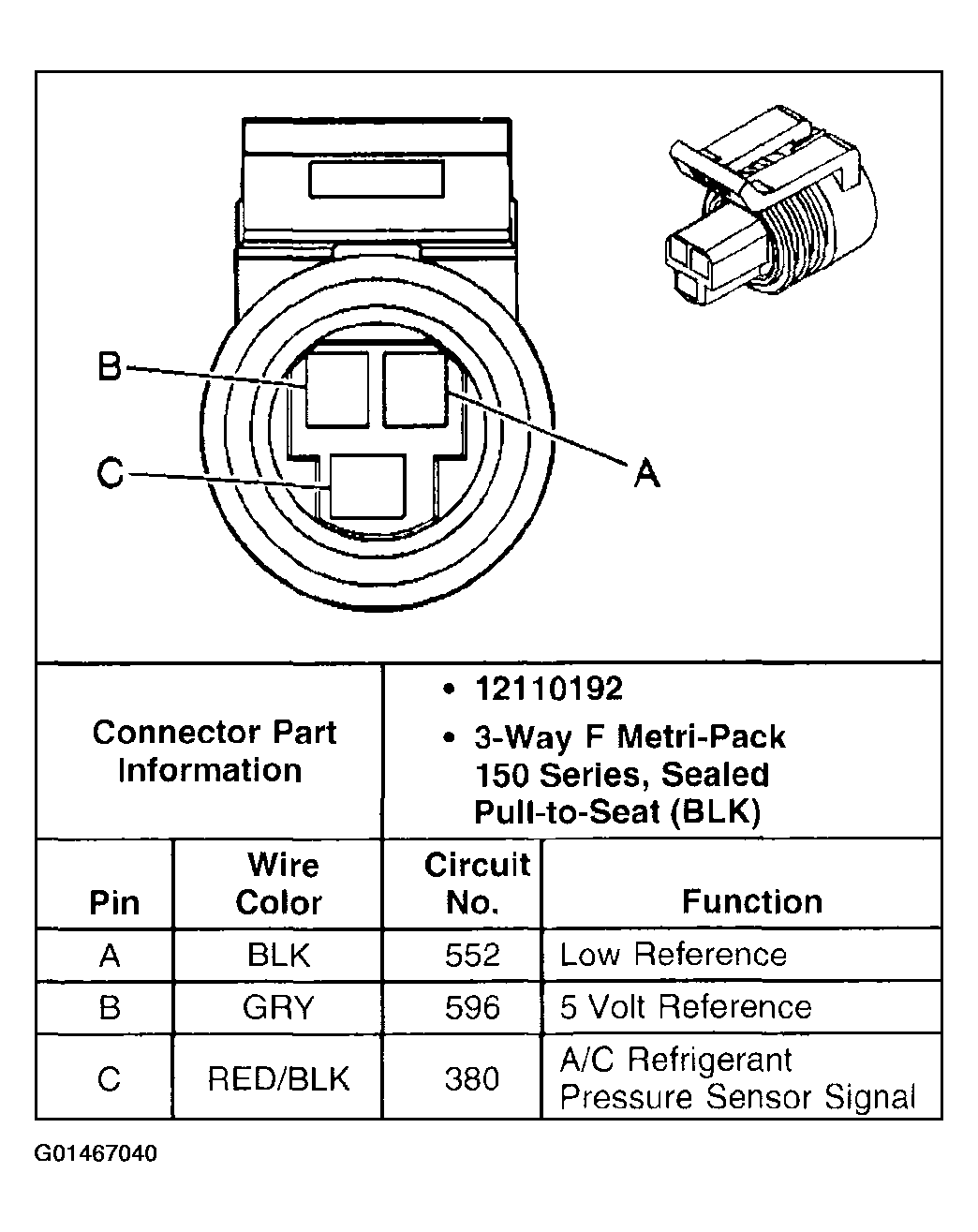

Fig 4: A/C Refrigerant Pressure Sensor (2.2L)

Courtesy of GENERAL MOTORS CORP.

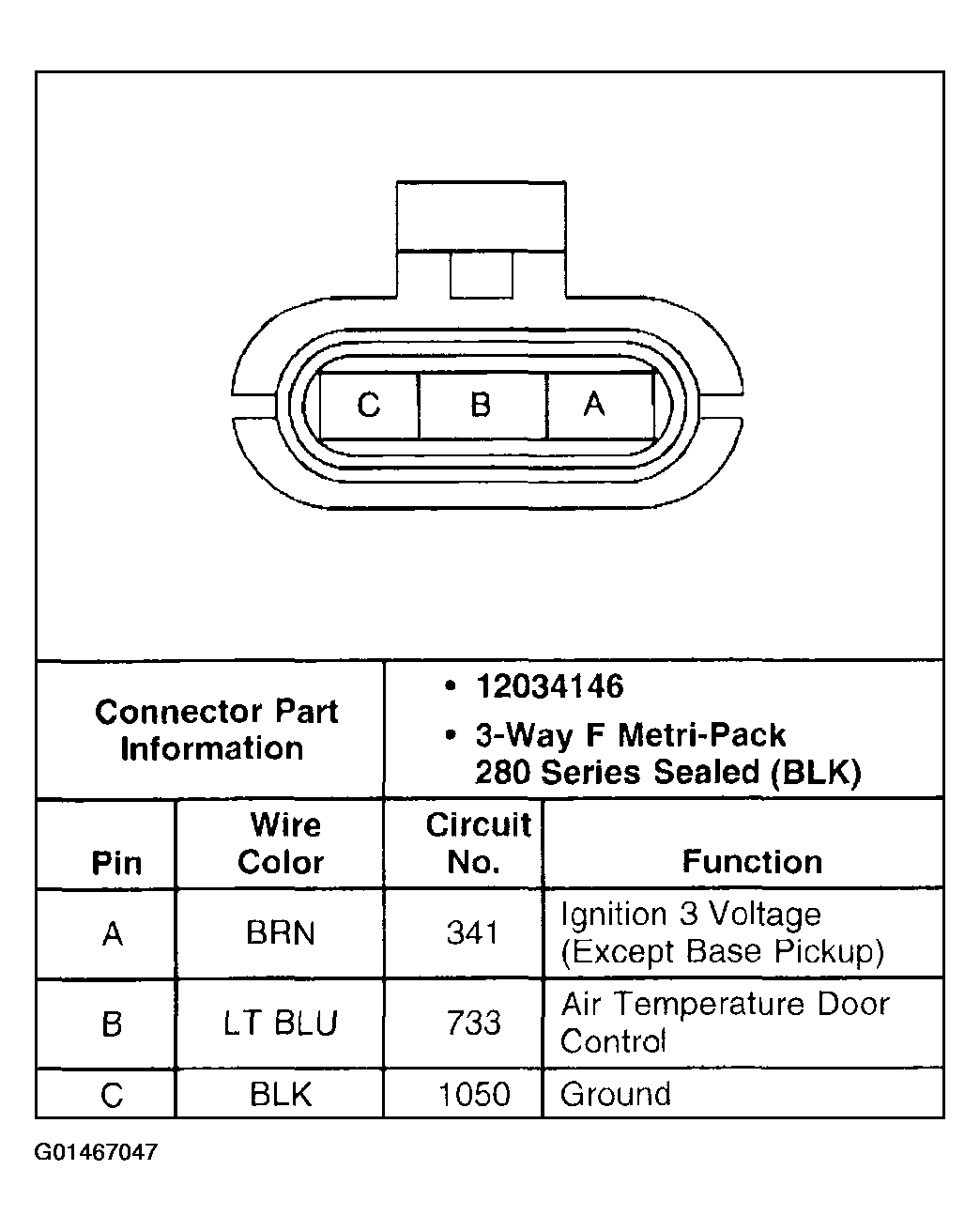

Fig 5: Air Temperature Actuator

Courtesy of GENERAL MOTORS CORP.

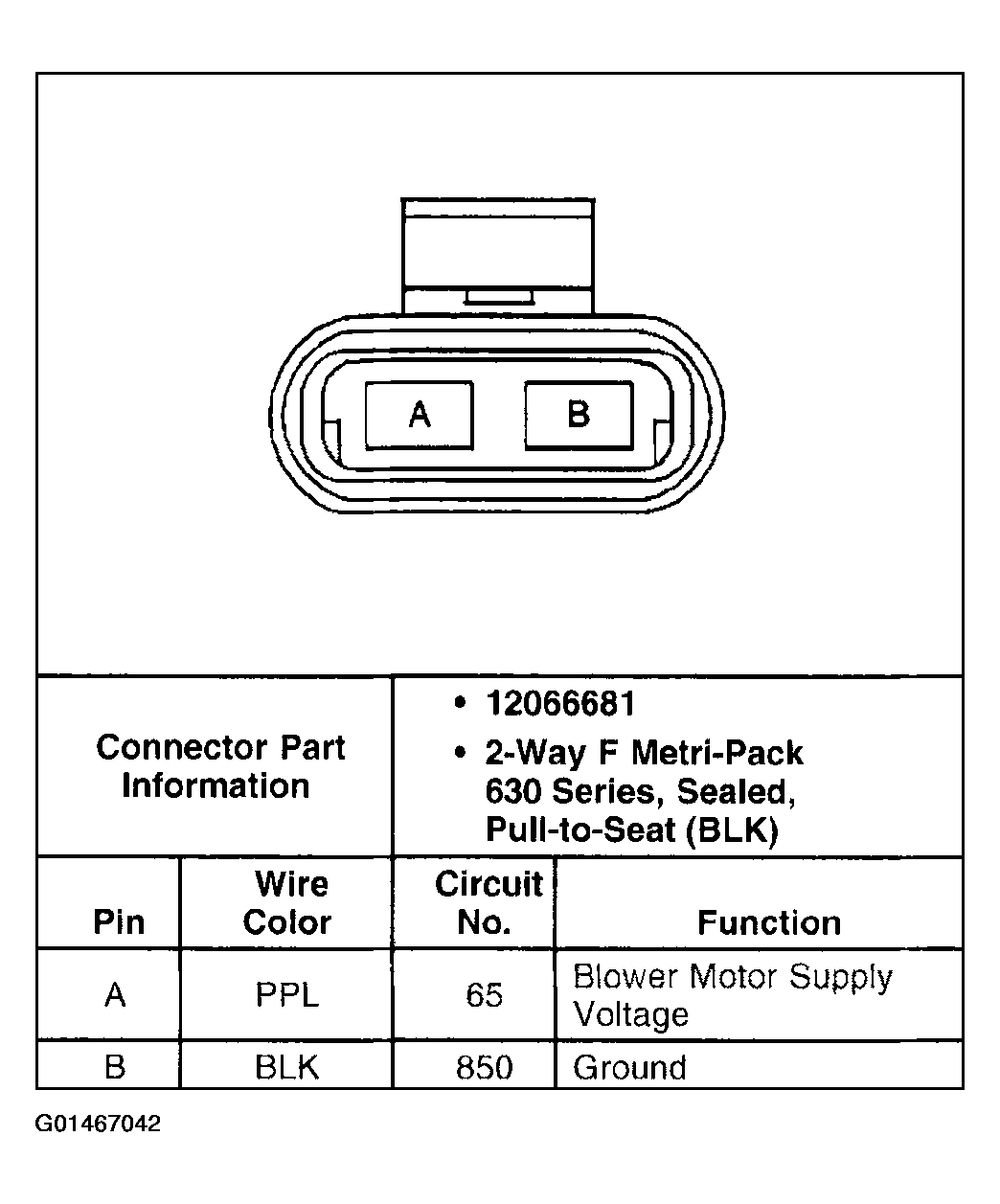

Fig 6: Blower Motor

Courtesy of GENERAL MOTORS CORP.

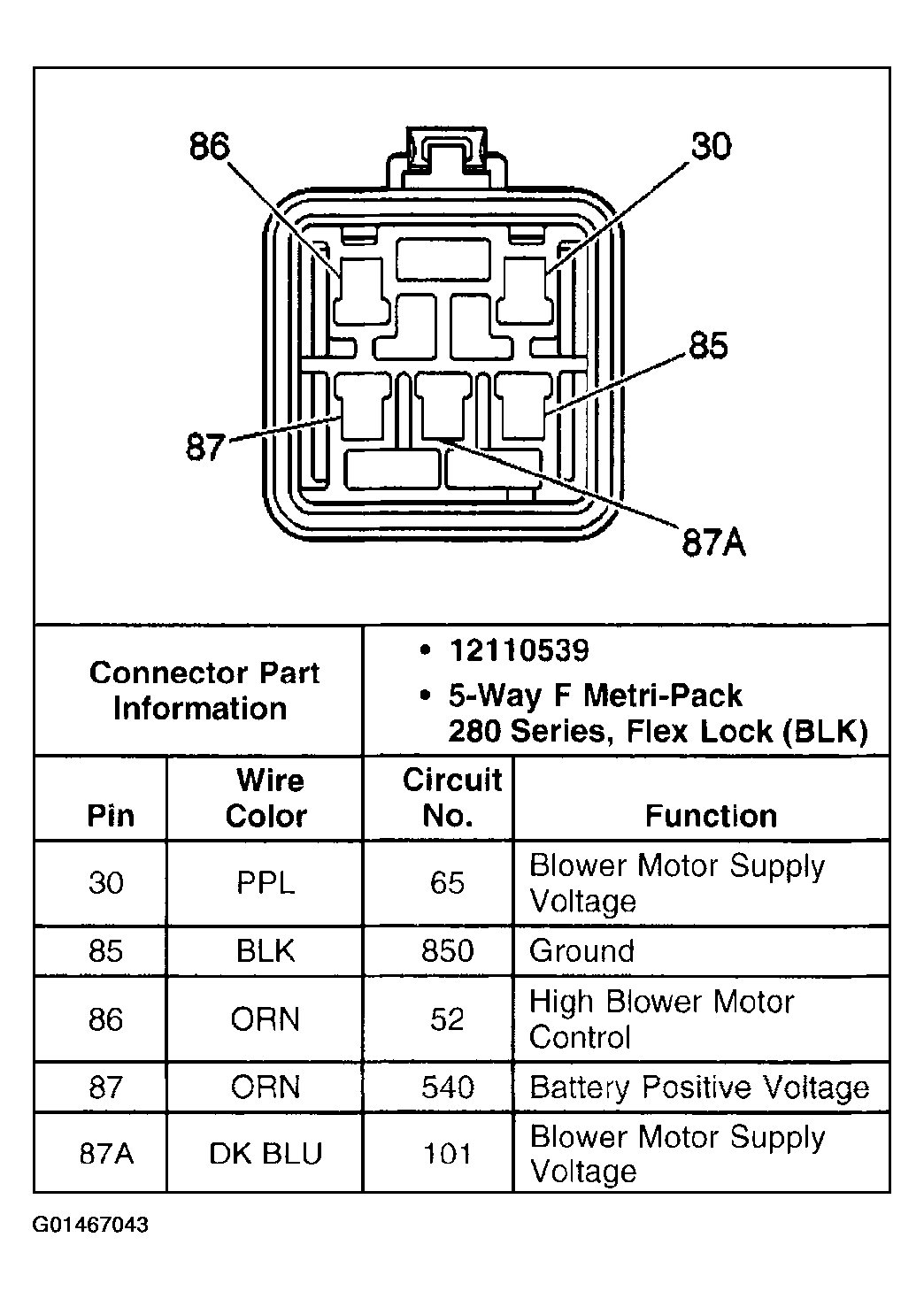

Fig 7: Blower Motor Relay

Courtesy of GENERAL MOTORS CORP.

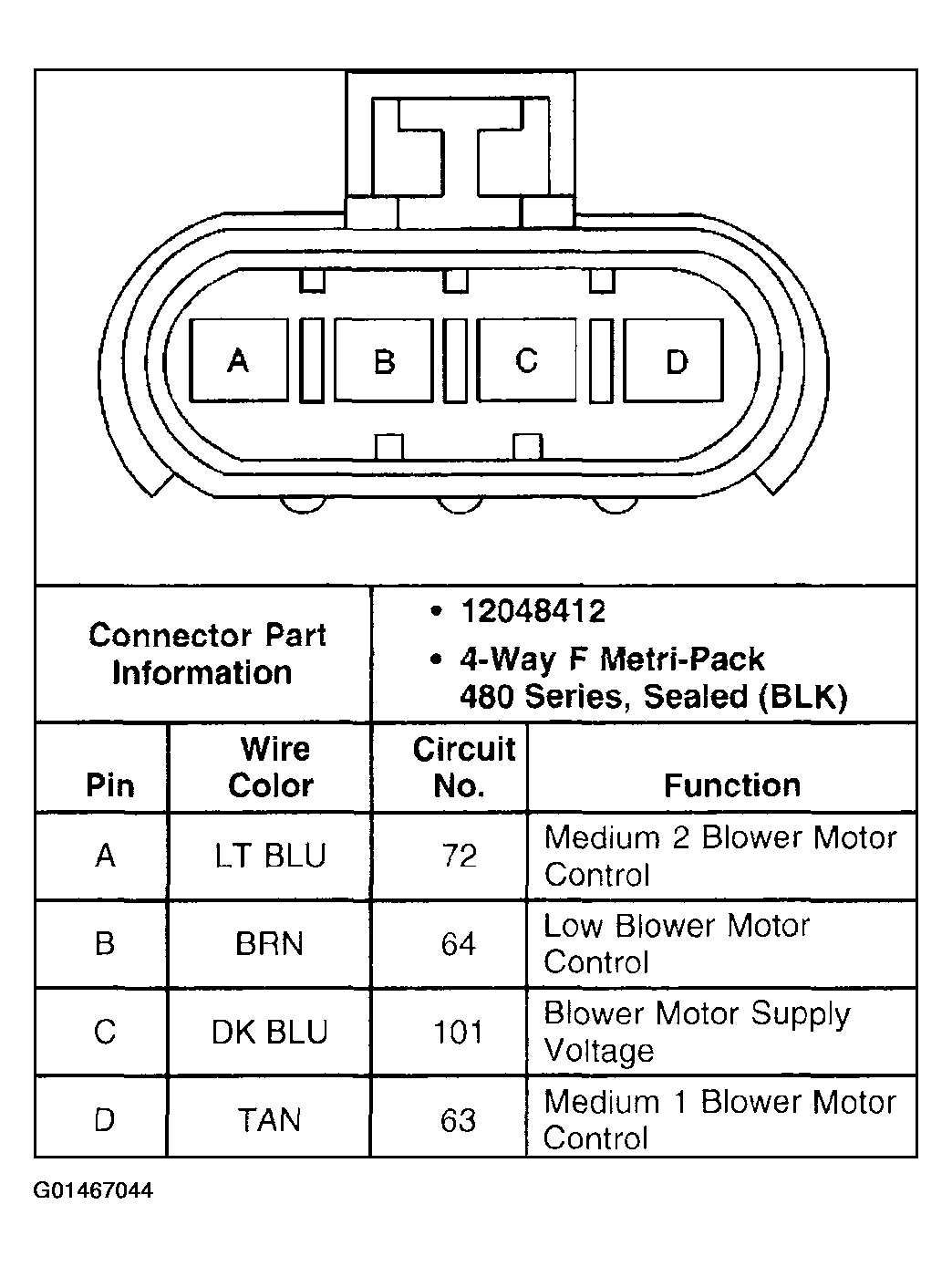

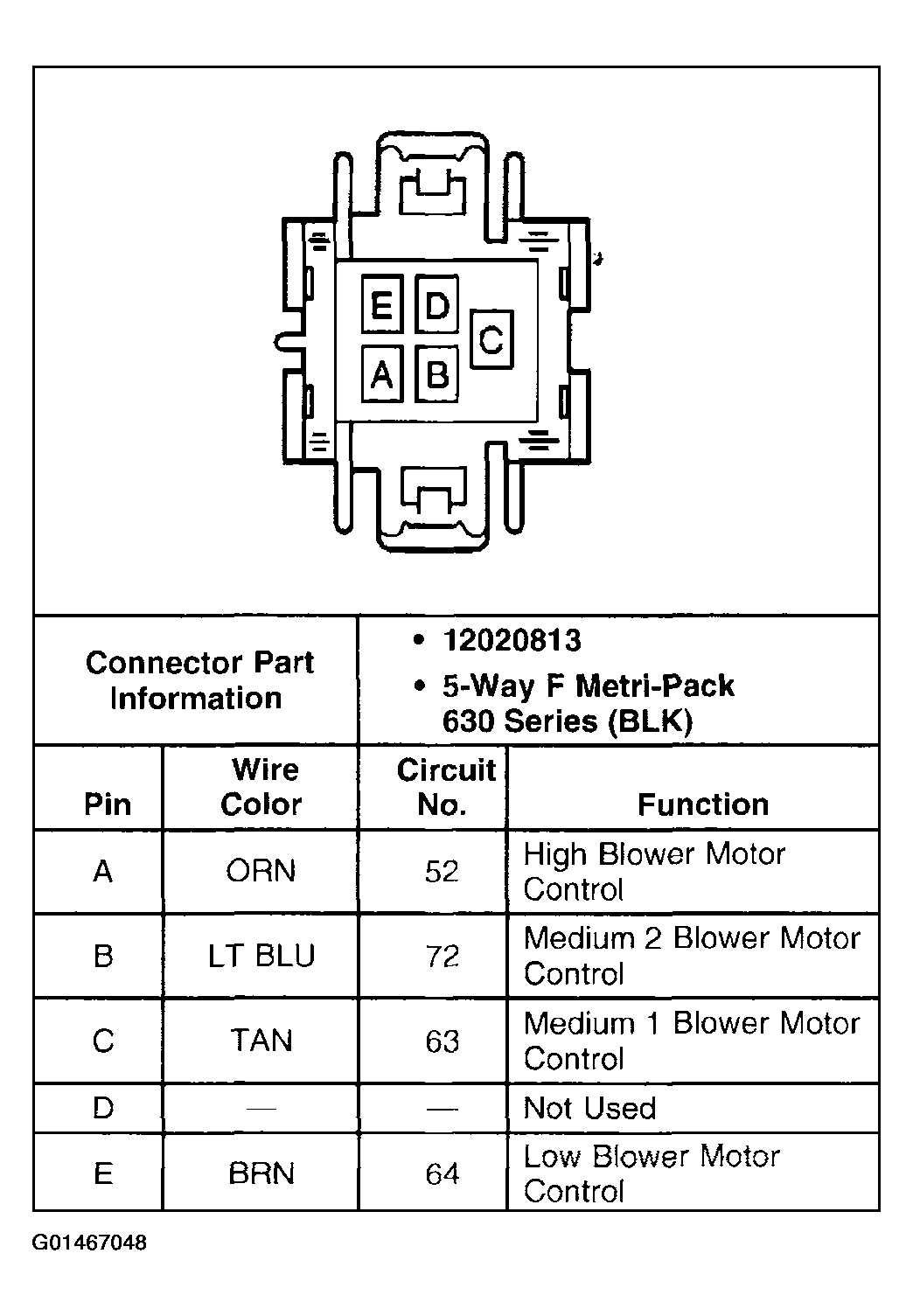

Fig 8: Blower Motor Resistor

Courtesy of GENERAL MOTORS CORP.

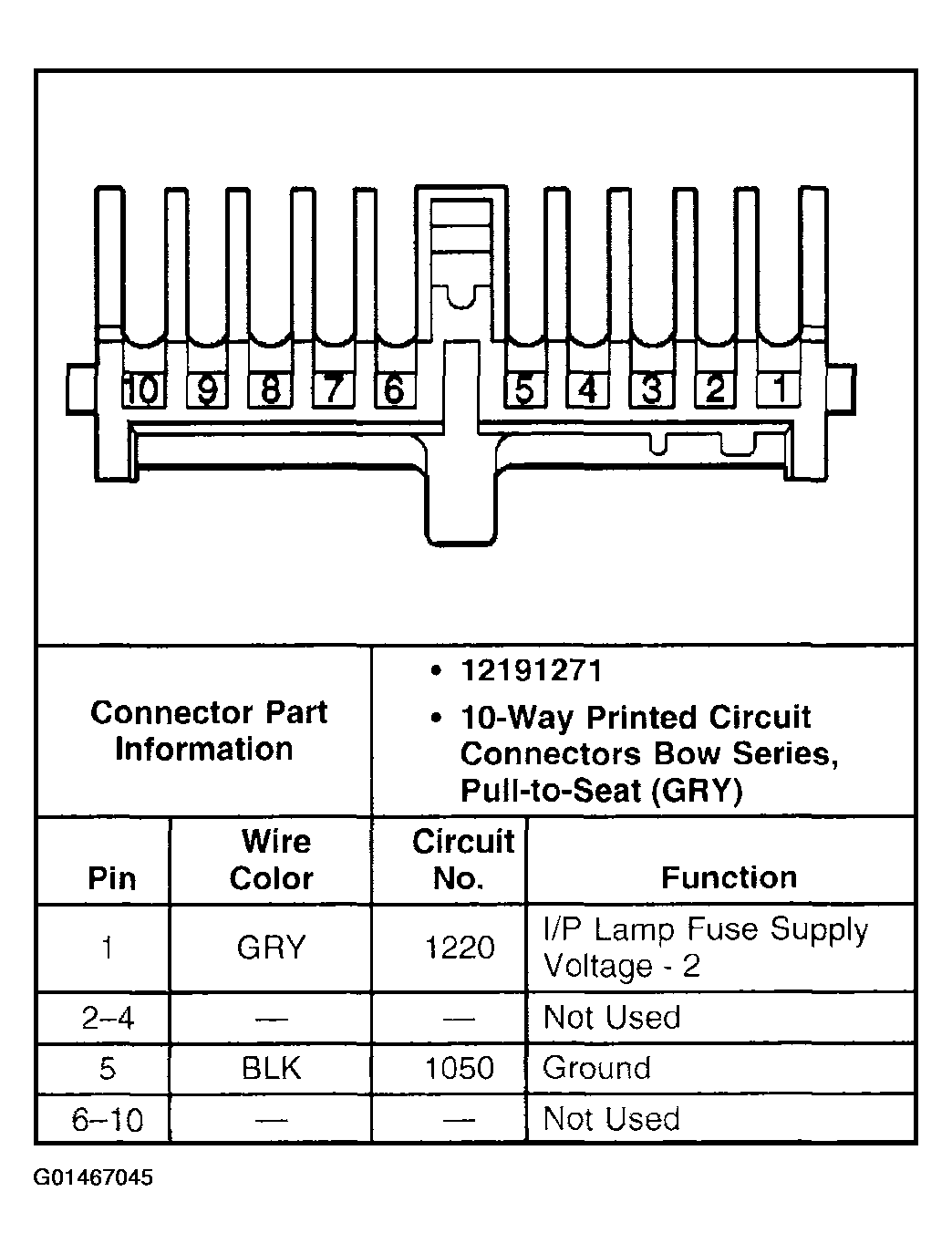

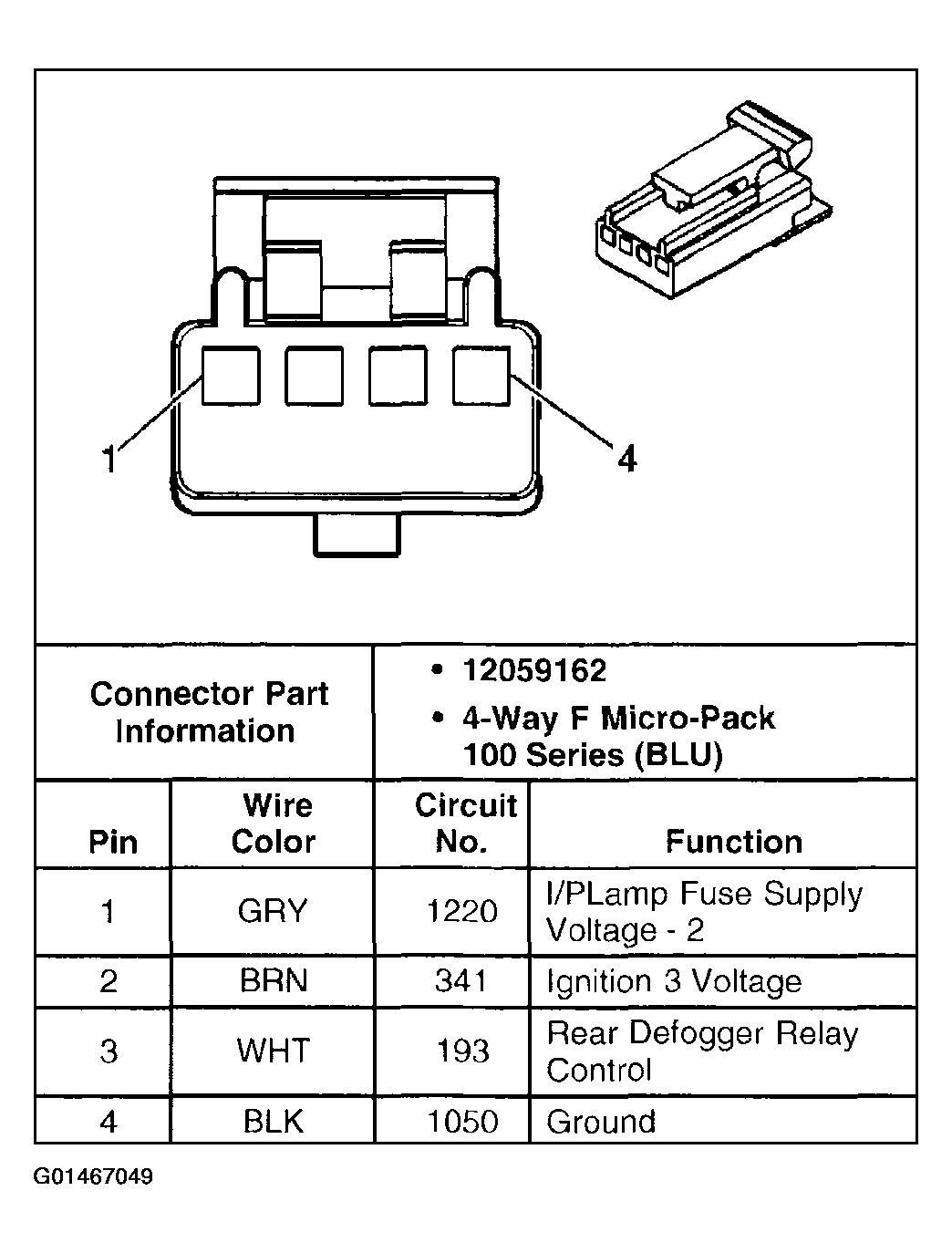

Fig 9: HVAC Control Assembly C1

Courtesy of GENERAL MOTORS CORP.

Fig 10: HVAC Control Assembly C2

Courtesy of GENERAL MOTORS CORP.

Fig 11: HVAC Control Assembly C3

Courtesy of GENERAL MOTORS CORP.

Fig 12: HVAC Control Assembly C4

Courtesy of GENERAL MOTORS CORP.

Fig 13: HVAC Control Assembly C5

Courtesy of GENERAL MOTORS CORP.
