Removal (8.1L)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

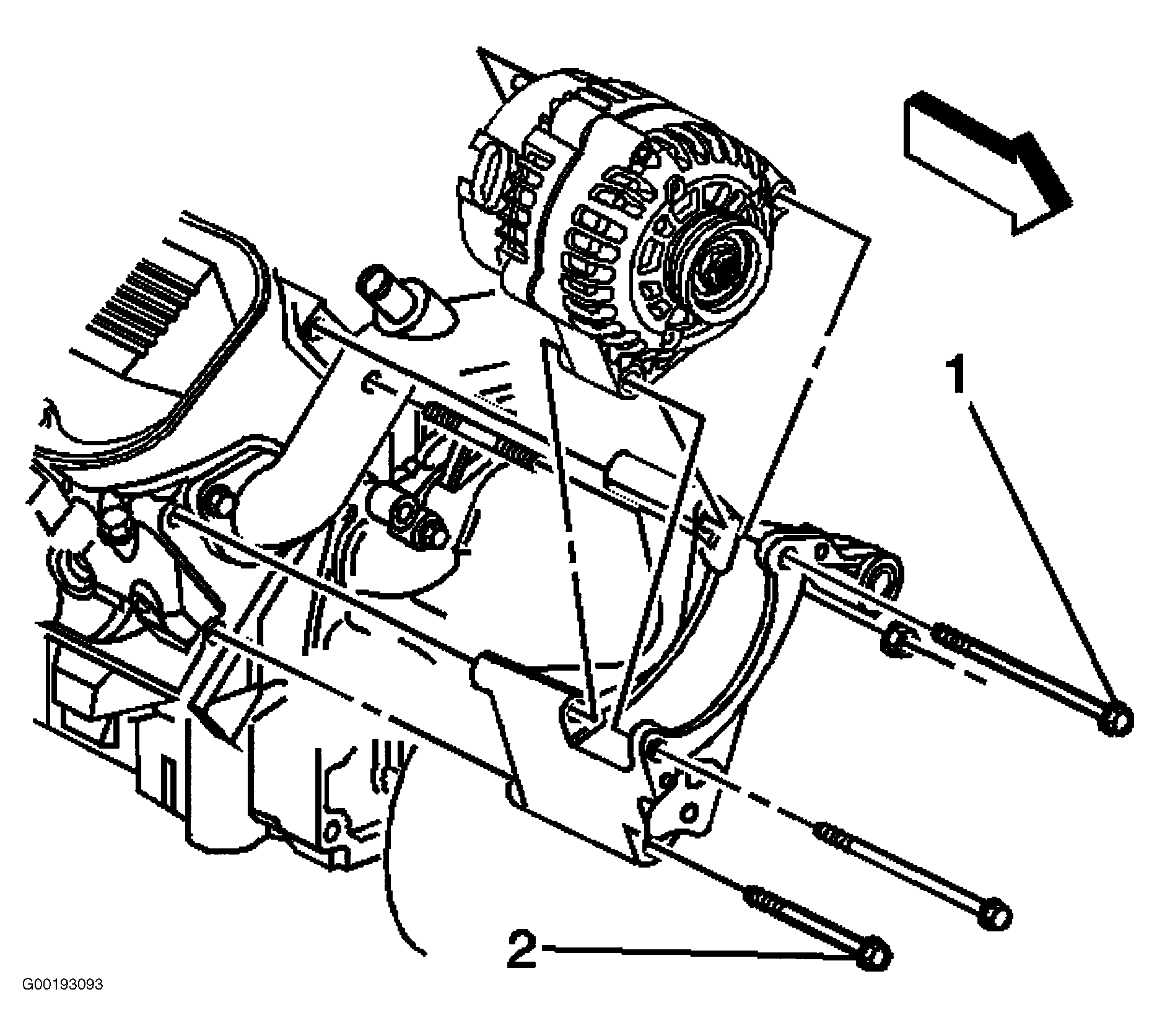

Disconnect negative battery cable. Remove drive belt and upper fan shroud. Remove indicator tube bracket bolts, and reposition bracket. Remove heater inlet pipe bolt from bracket. Remove indicator tube bracket. Remove generator bolts and reposition generator. See Figure . Reposition positive cable boot at generator. Remove positive cable nut and cable. Disconnect generator electrical connectors.
