Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the muffler and NEW gasket to the vehicle.
Connect the insulator to the muffler and tail pipe hanger.

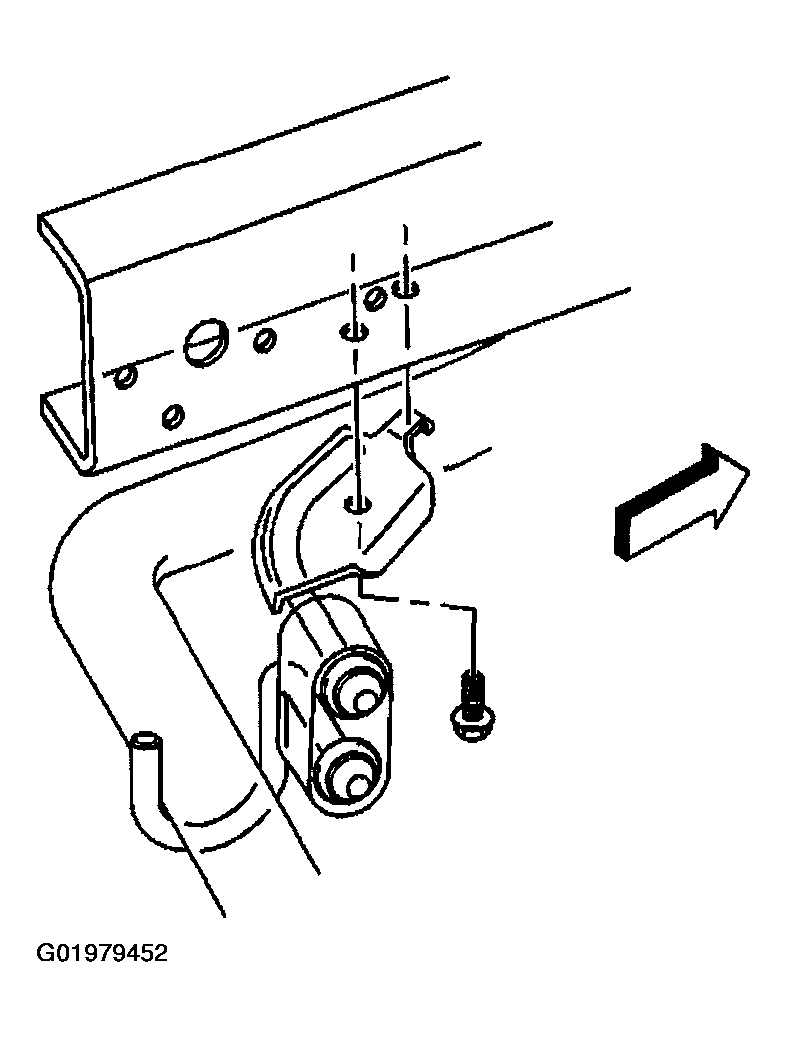

Fig 1: Connecting Insulator To Muffler And Tail Pipe Hanger
Courtesy of GENERAL MOTORS CORP.
Connect the insulator to the tail pipe hanger.

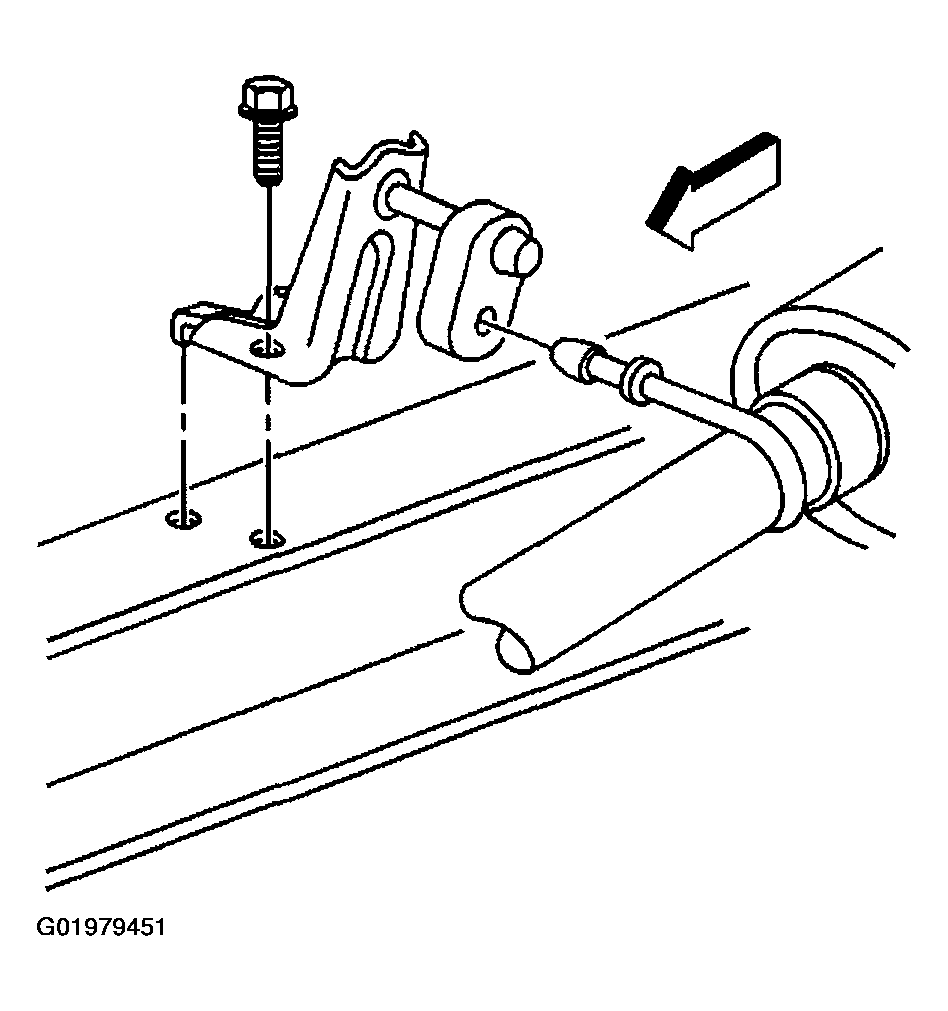

Fig 2: Connecting Insulator To Tail Pipe Hanger
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the muffler to catalytic converter flange nuts.
Tighten

Tighten the muffler to catalytic converter flange nuts to 40 N.m (30 lb ft).
Lower the vehicle.

Fig 3: Installing Muffler To Catalytic Converter Flange Nuts
Courtesy of GENERAL MOTORS CORP.
