Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .
  2. Raise and suitably support the vehicle. Refer to JACKING AND LIFTING in General Information.
  3. Remove the differential carrier shield mounting bolts, if equipped.
  4. Remove the differential carrier shield, if equipped.

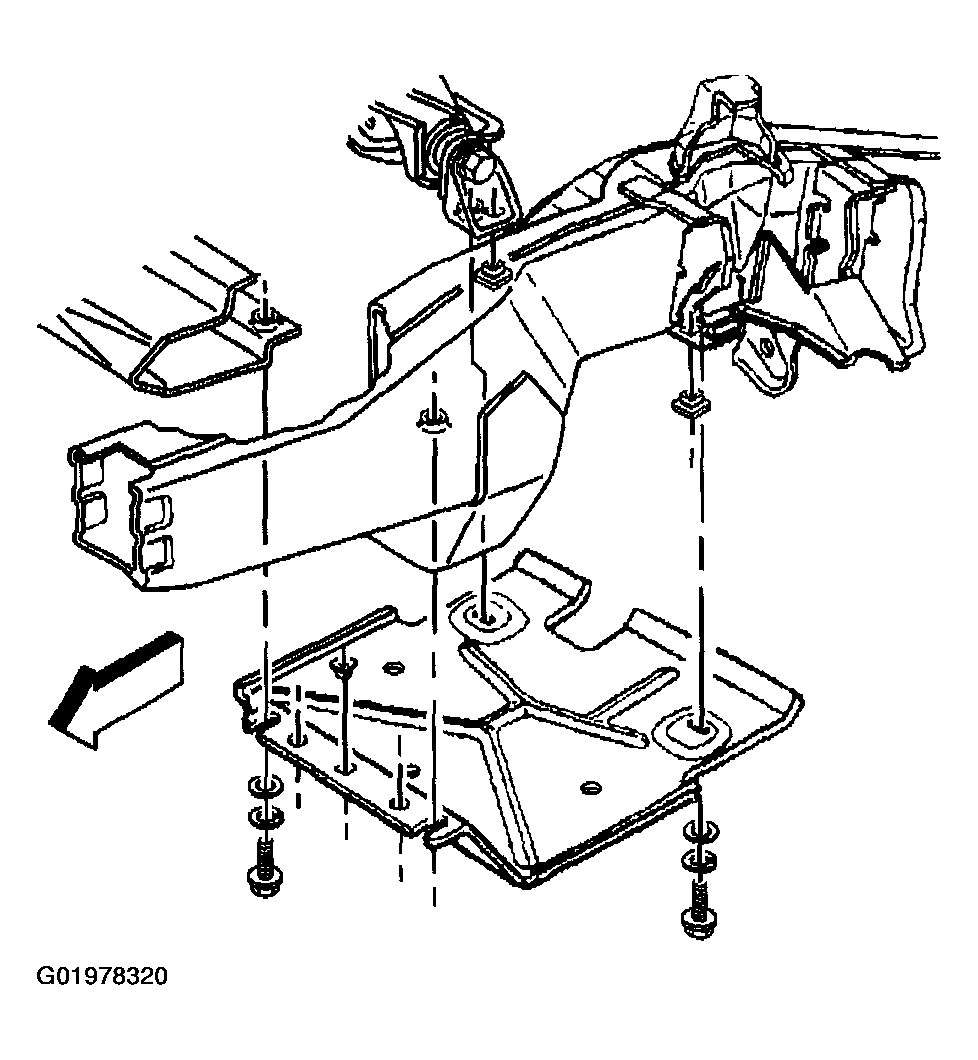

    Fig 1: Removing Differential Carrier Shield
    G01978320Courtesy of GENERAL MOTORS CORP.
  5. Remove the starter mounting bolts.

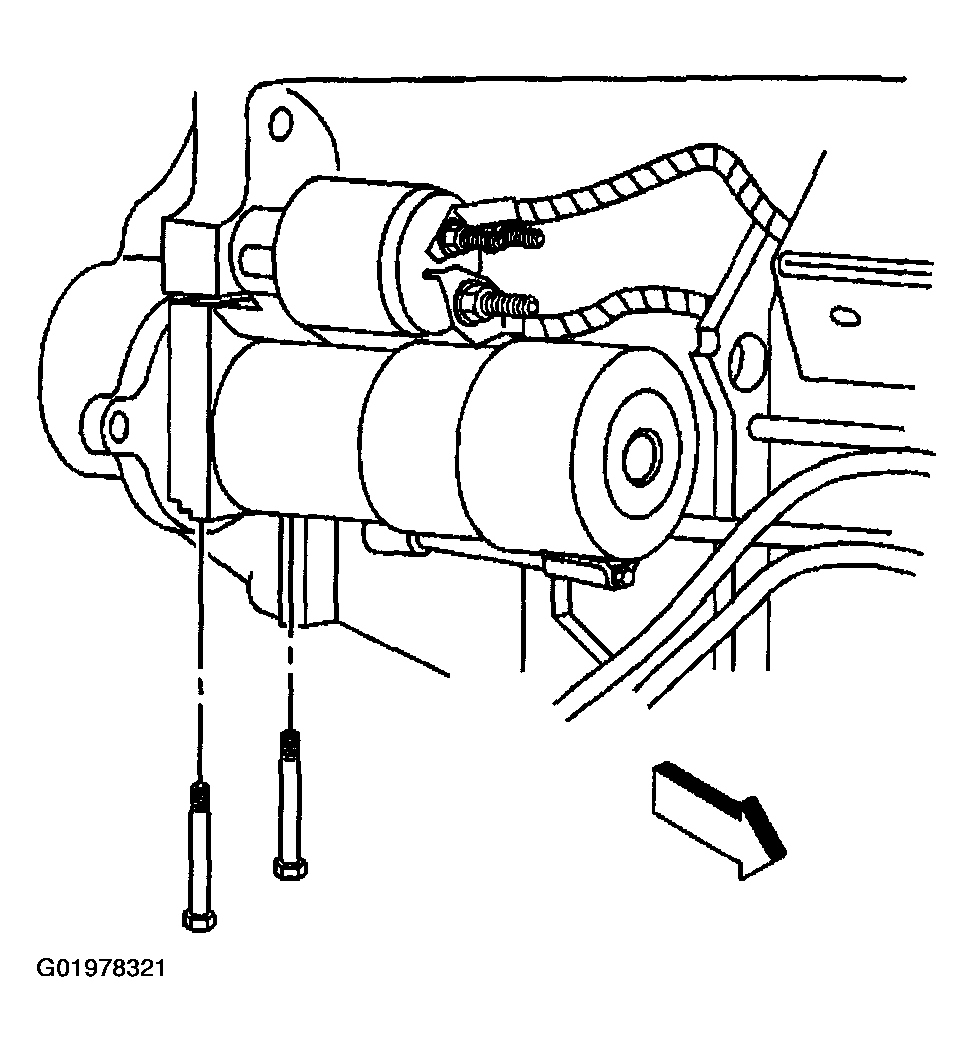

    Fig 2: Removing Starter Mounting Bolts
    G01978321Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the wires from the solenoid.

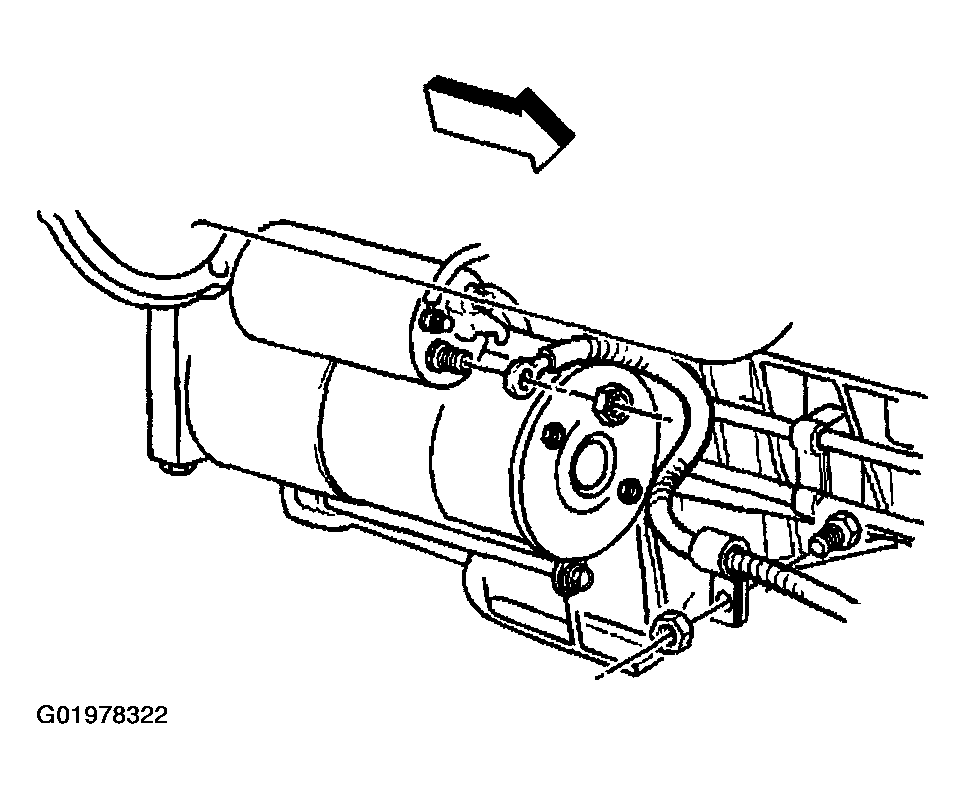

    Fig 3: Disconnecting Wires From Solenoid
    G01978322Courtesy of GENERAL MOTORS CORP.
  7. Remove the starter from the vehicle. Note the location of the shims, if equipped.

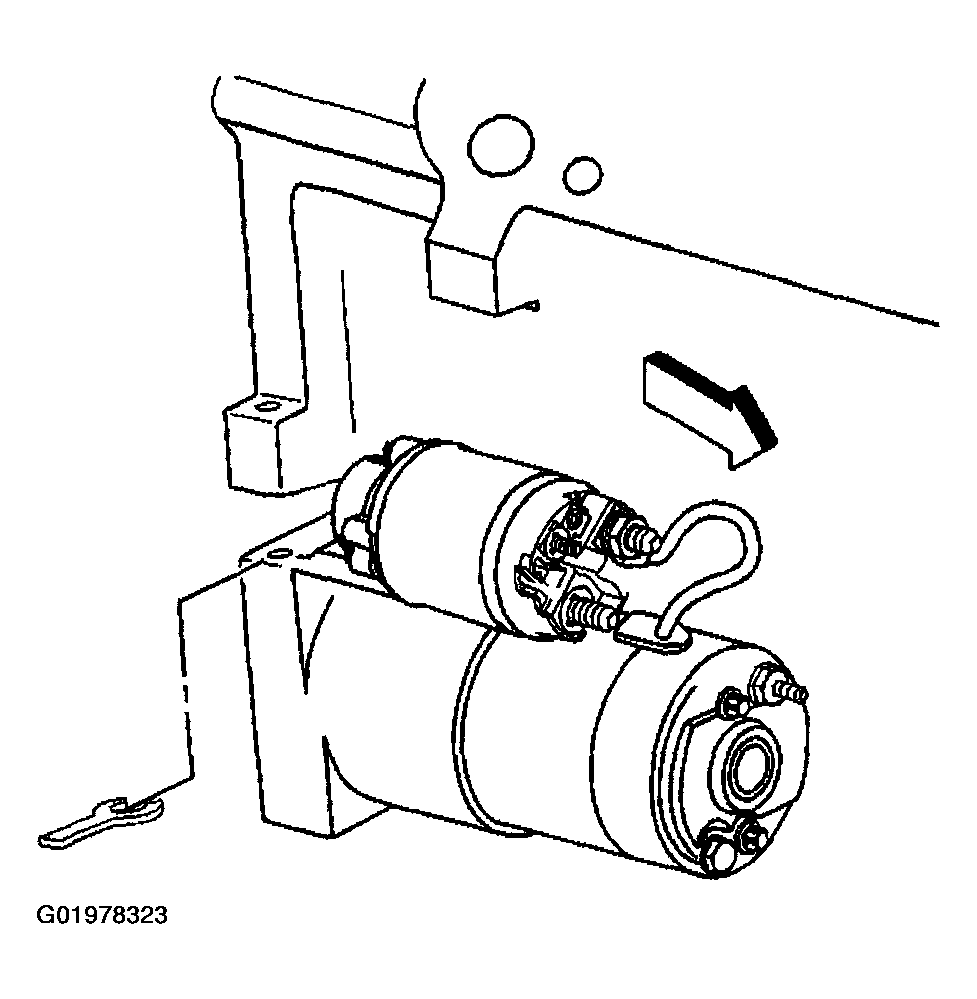

    Fig 4: Removing Starter From Vehicle
    G01978323Courtesy of GENERAL MOTORS CORP.
