Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the starter motor to the vehicle.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the starter mounting bolts.
Tighten

Tighten the starter motor mounting bolts to 43 N.m (32 lb ft).

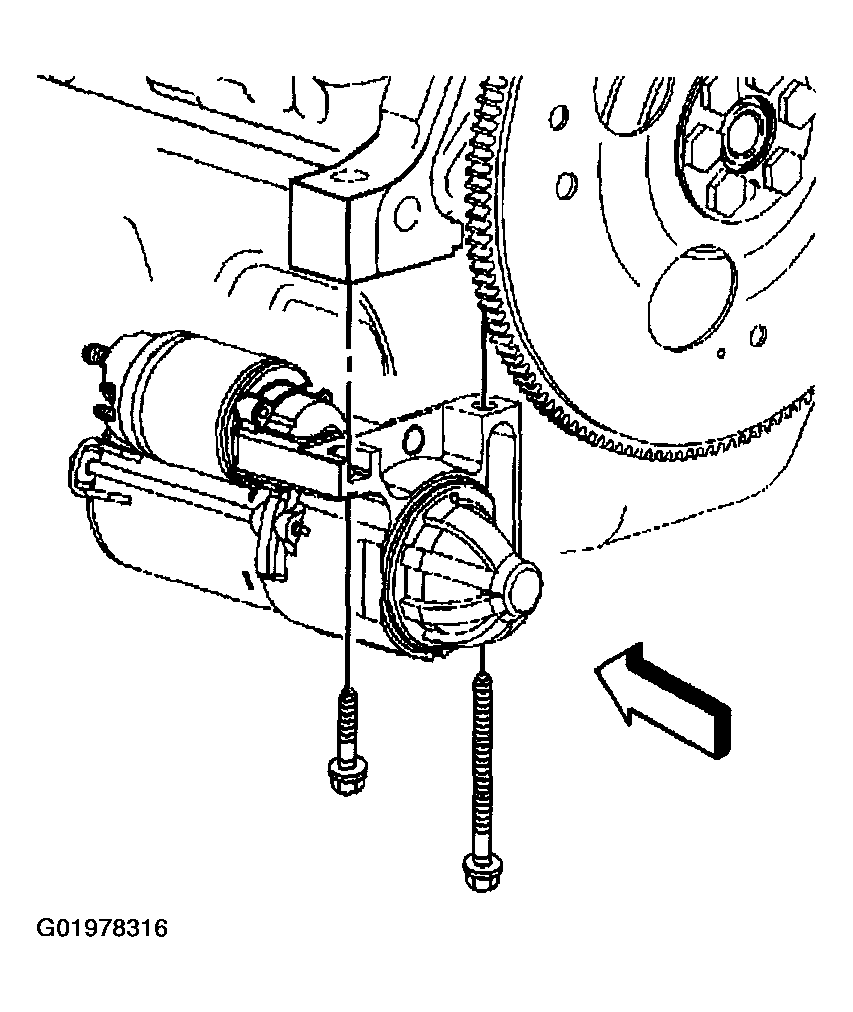

Fig 1: Installing Starter Motor To Vehicle
Courtesy of GENERAL MOTORS CORP.
Connect the wires to the starter solenoid.
Tighten
- Tighten the battery positive cable to starter nut to 9 N.m (80 lb in).
- Tighten the engine wiring harness to starter nut to 1.9 N.m (17 lb in).

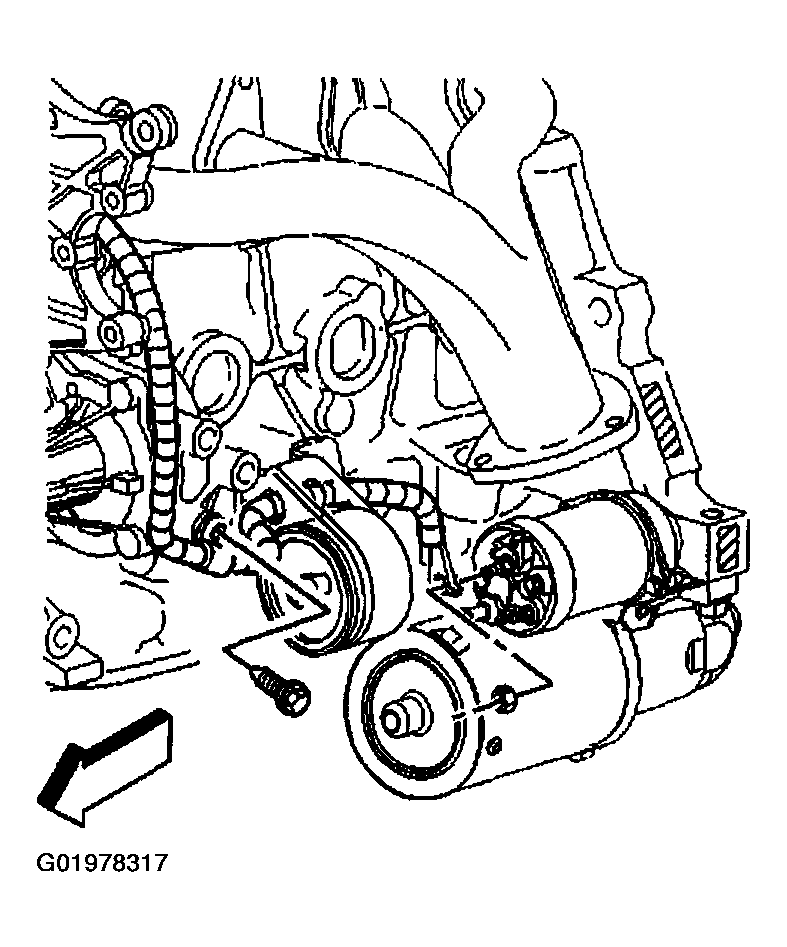

  Fig 2: Connecting Wires To Starter Solenoid
  Courtesy of GENERAL MOTORS CORP.
Install the starter heat shield.

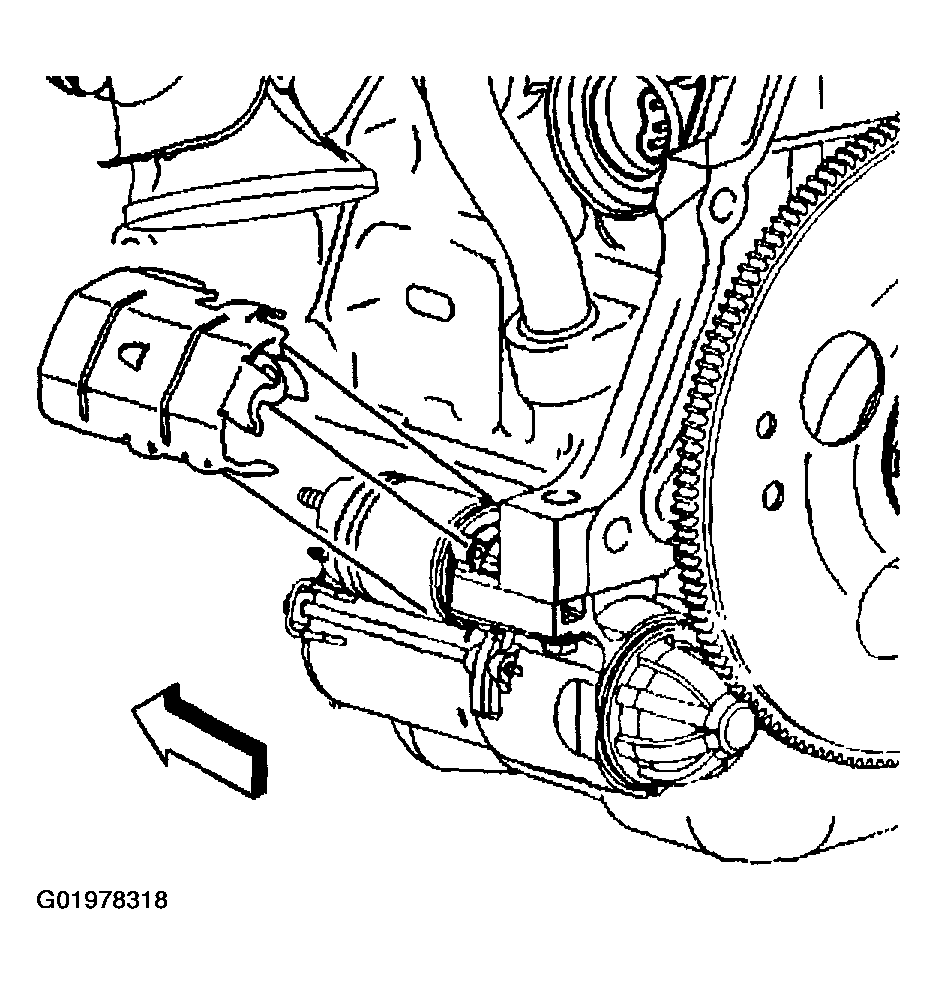

Fig 3: Installing Starter Heat Shield
Courtesy of GENERAL MOTORS CORP.
Install the engine to transmission brace rod.
Install the engine to transmission brace rod mounting bolts.
Tighten

Tighten the engine to transmission brace mounting bolts to 50 N.m (37 lb ft).
Lower the vehicle.
Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

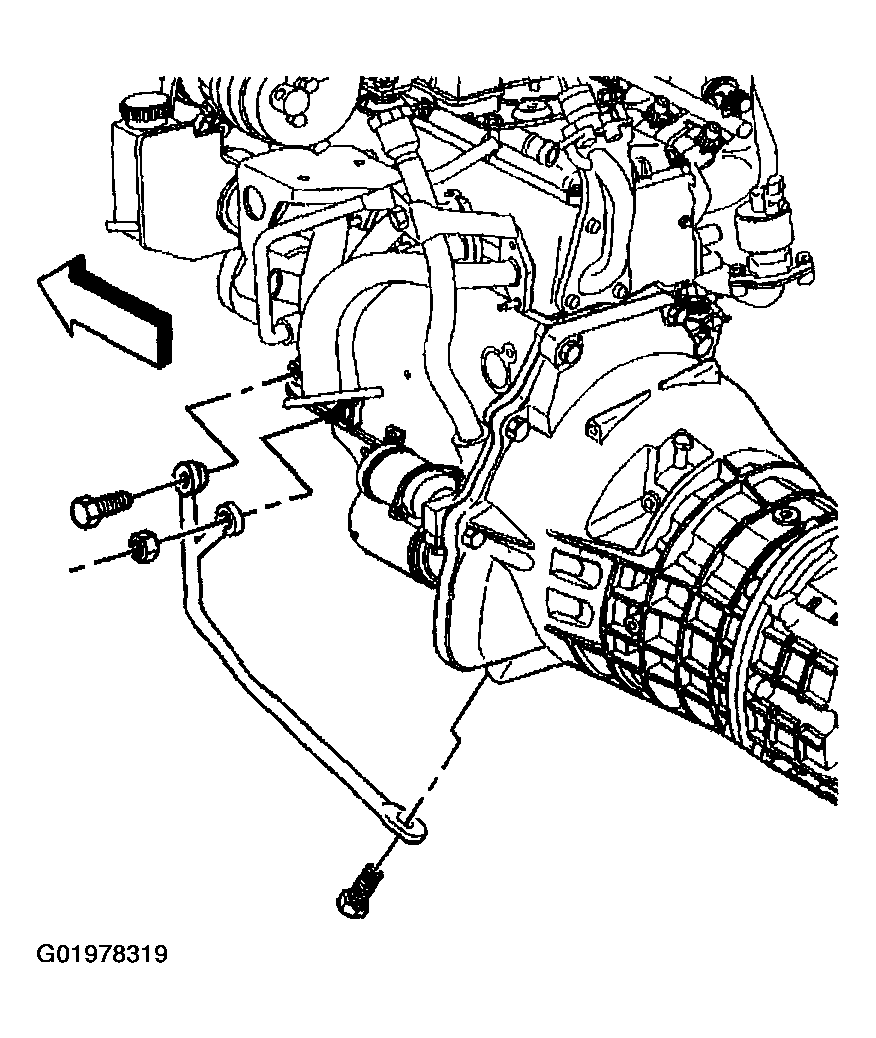

Fig 4: Installing Engine To Transmission Brace Rod
Courtesy of GENERAL MOTORS CORP.
