Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.

Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
Remove the drive belt. Refer to DRIVE BELT REPLACEMENT in Engine Mechanical - 4.3L.
Remove the heater hose brace bolt from the generator.

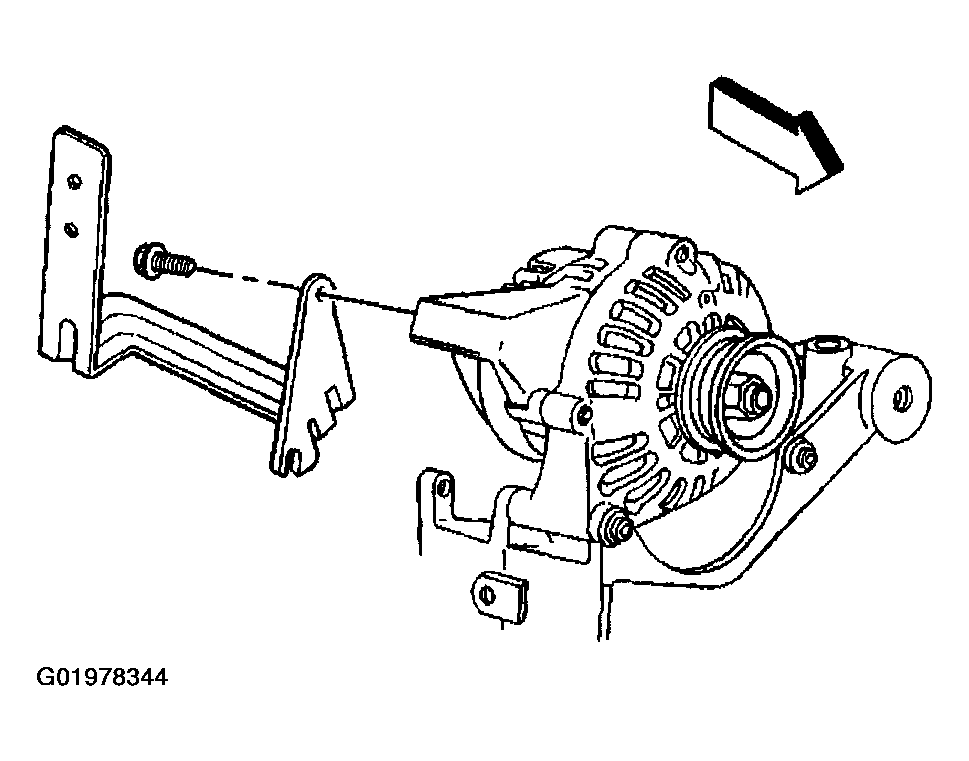

Fig 1: Removing Heater Hose Brace Bolt From Generator
Courtesy of GENERAL MOTORS CORP.
Remove the generator mounting bolts.
Remove the generator from the mounting bracket.

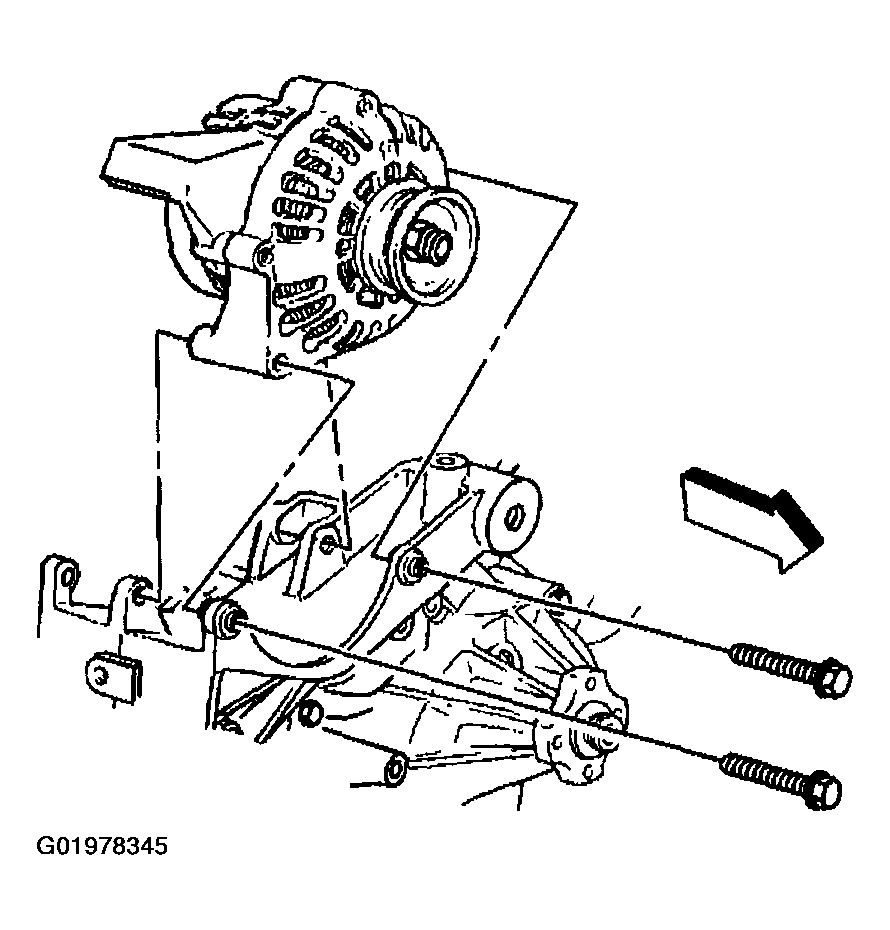

Fig 2: Removing Generator From Mounting Bracket
Courtesy of GENERAL MOTORS CORP.
Disconnect the generator electrical connector.

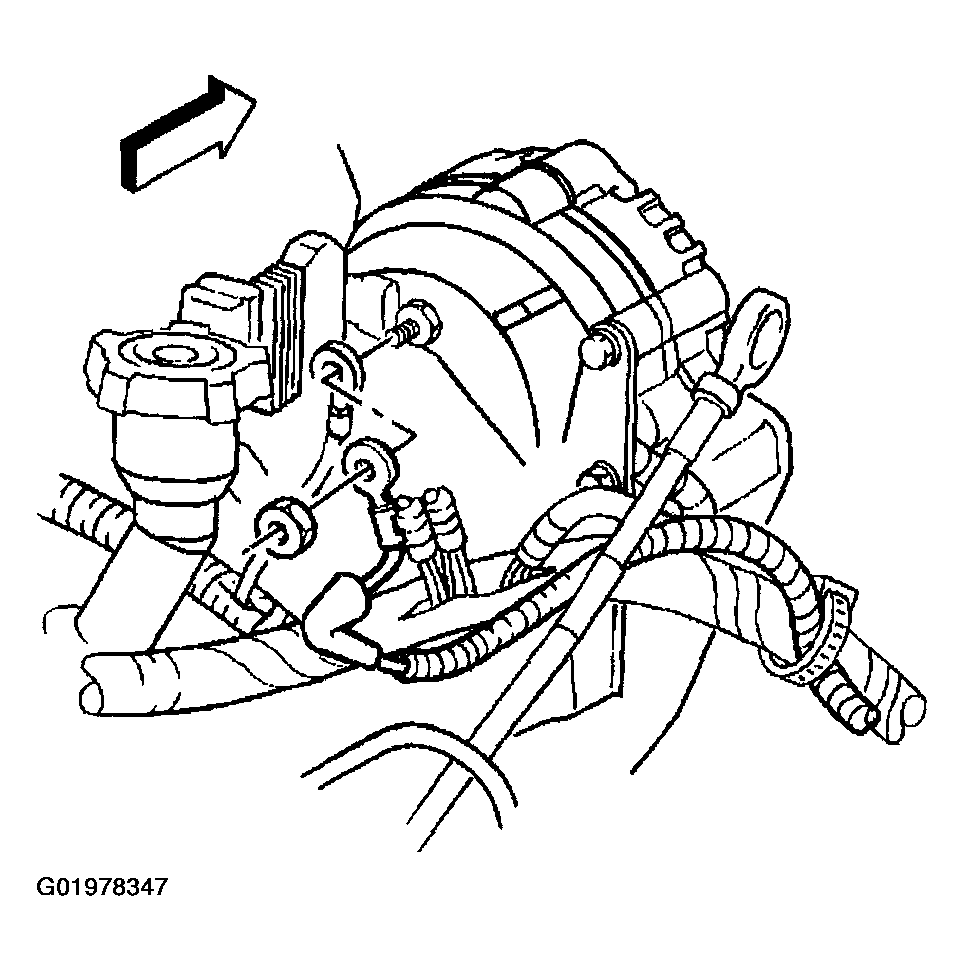

Fig 3: Disconnecting Generator Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the generator output (BAT) terminal retaining nut from the generator.

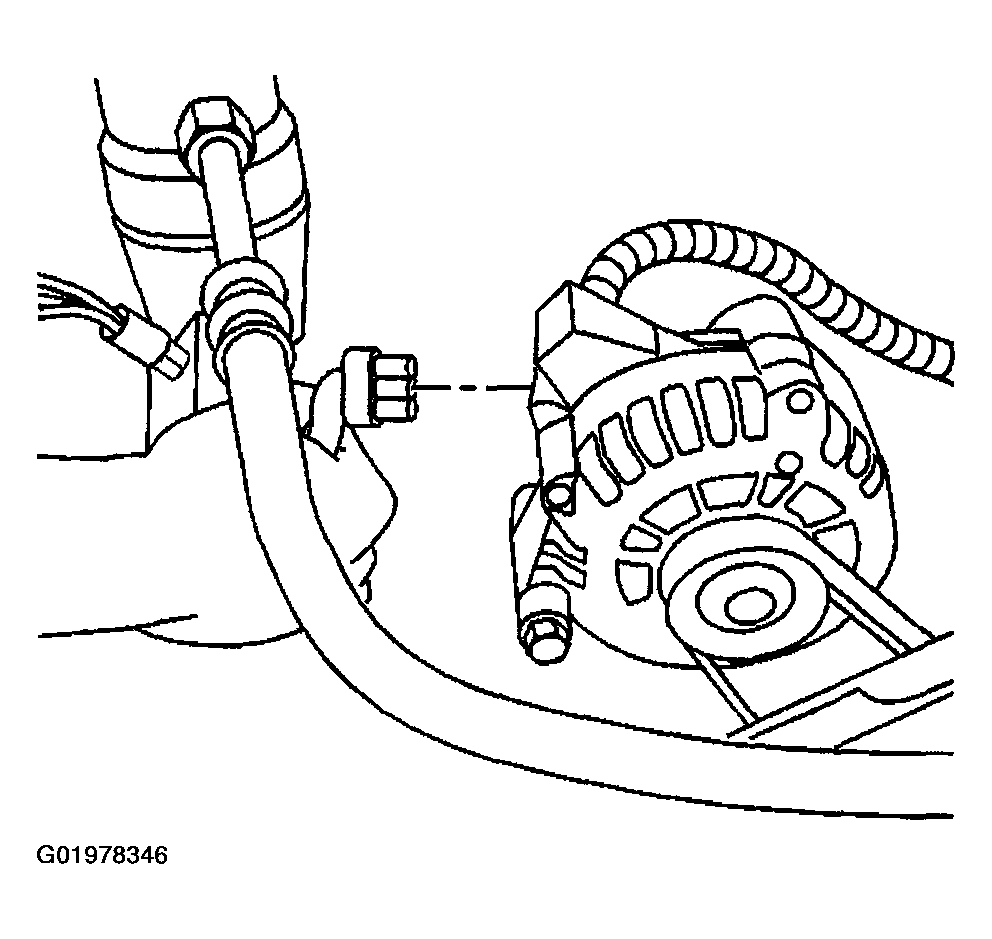

Fig 4: Removing Generator Output (BAT) Terminal Retaining Nut From Generator
Courtesy of GENERAL MOTORS CORP.
