Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. Refer to BATTERY REPLACEMENT  .

    Remove the battery tray retaining bolts.

  2. Remove the battery tray.

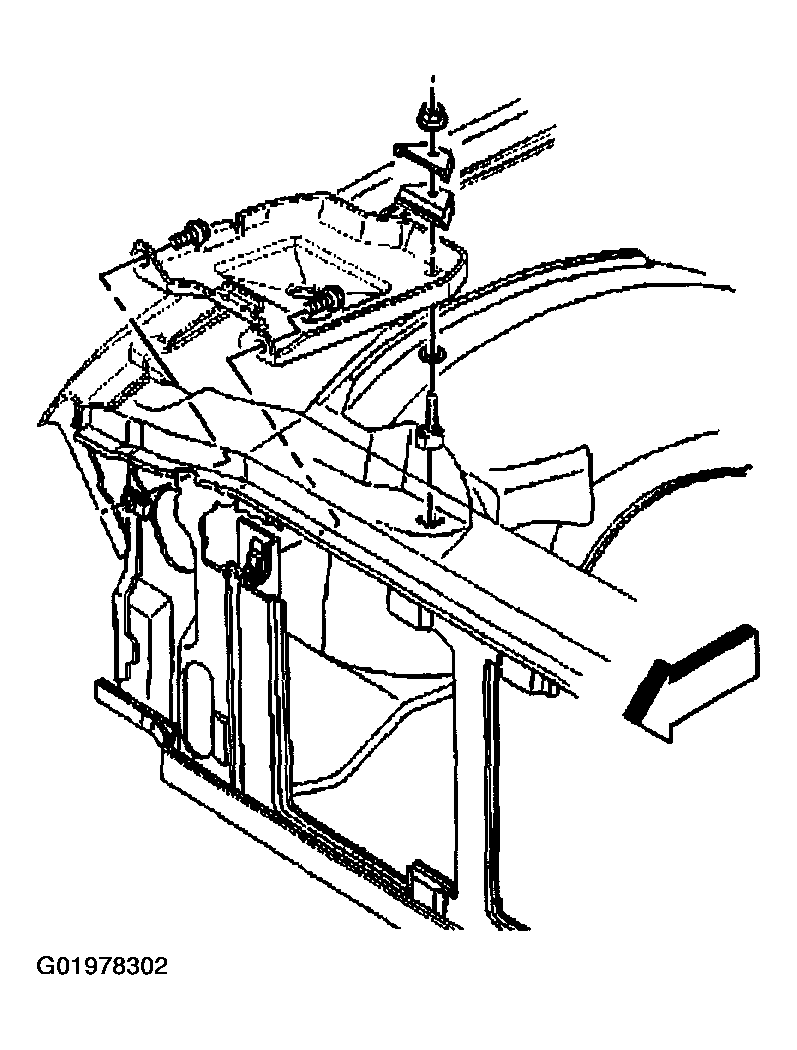

    Fig 1: Removing Battery Tray
    G01978302Courtesy of GENERAL MOTORS CORP.
