Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.

Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
Disconnect the positive battery cable from the battery.
Remove the bolt retaining the positive battery cable to the underhood fuse block.

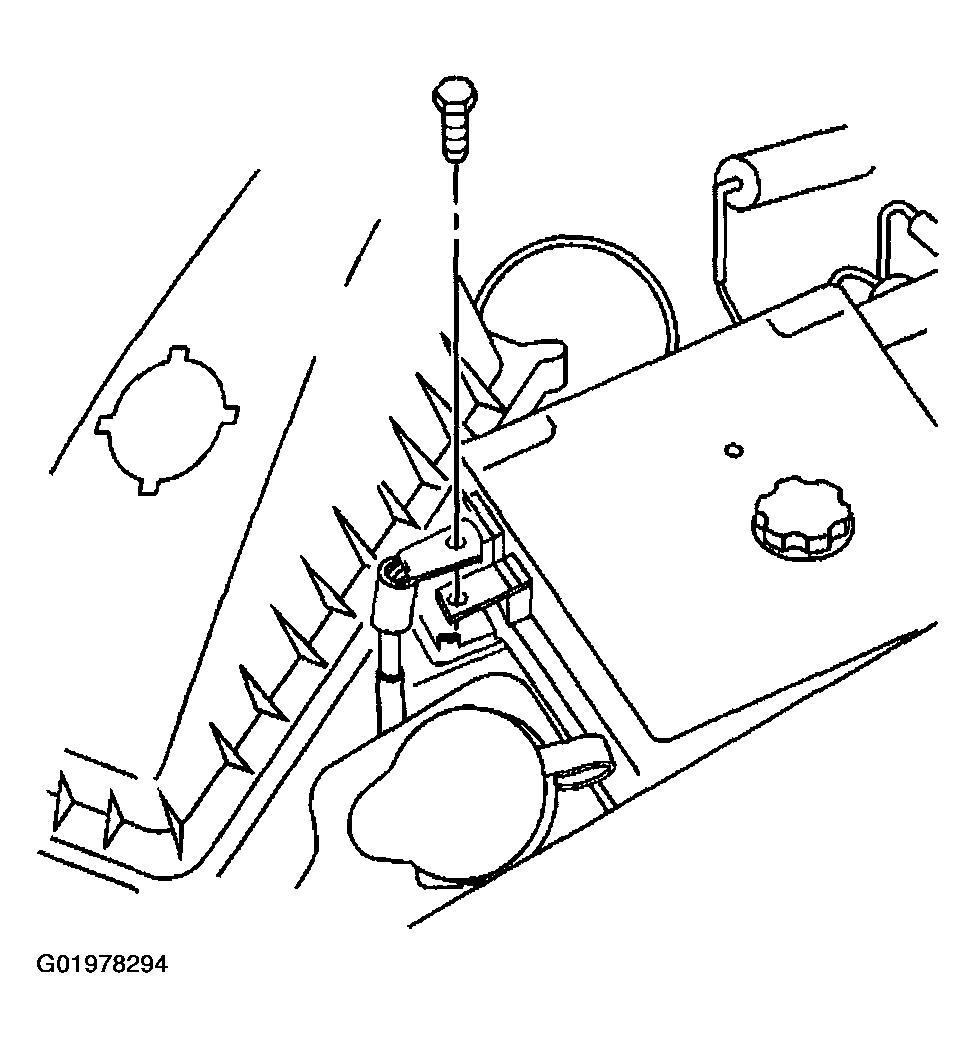

Fig 1: Removing Battery Positive Cable (4.3L)
Courtesy of GENERAL MOTORS CORP.
Remove the nut retaining the positive battery cable to the generator.
Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.

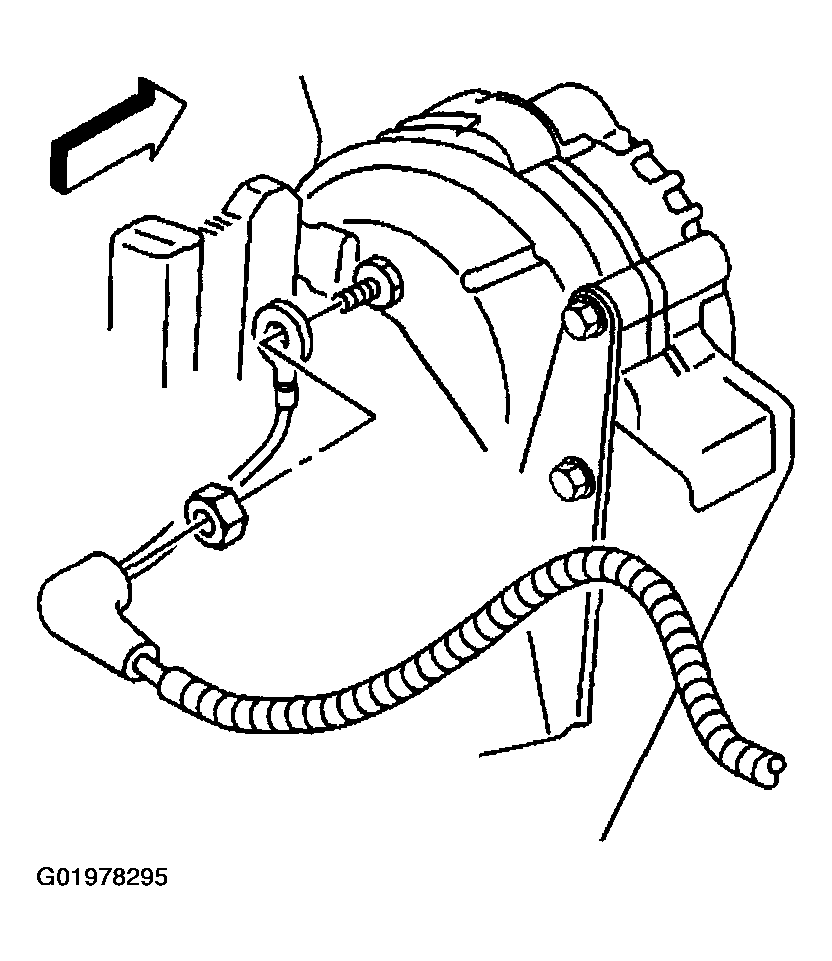

Fig 2: Removing Nut Retaining Positive Battery Cable To Generator
Courtesy of GENERAL MOTORS CORP.
Remove the nut retaining the positive battery cable to the starter.
Remove the positive battery cable bolt from the engine.
Remove the battery positive cable.

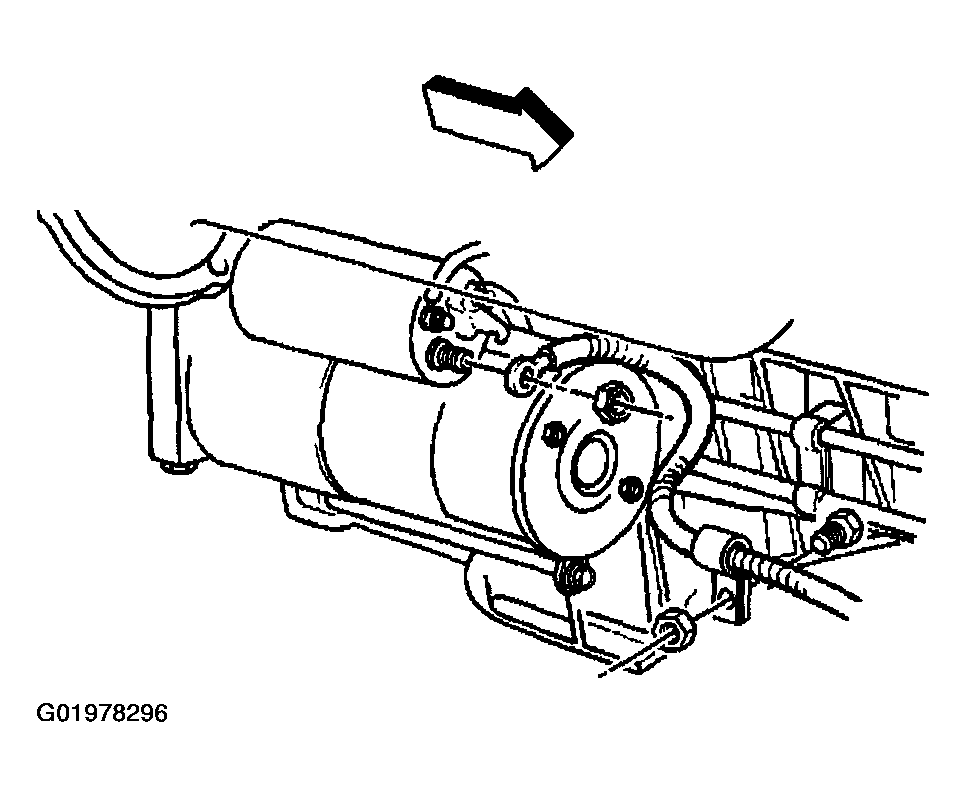

Fig 3: Removing Battery Positive Cable
Courtesy of GENERAL MOTORS CORP.
