Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the positive battery cable to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the positive battery cable nut to the engine.

    Tighten

    Tighten the positive battery cable nut to 6 N.m (80 lb in).

  3. Install the nut retaining the positive battery cable to the starter.

    Tighten

    Tighten the positive battery cable nut to 9 N.m (80 lb in).

  4. Lower the vehicle.

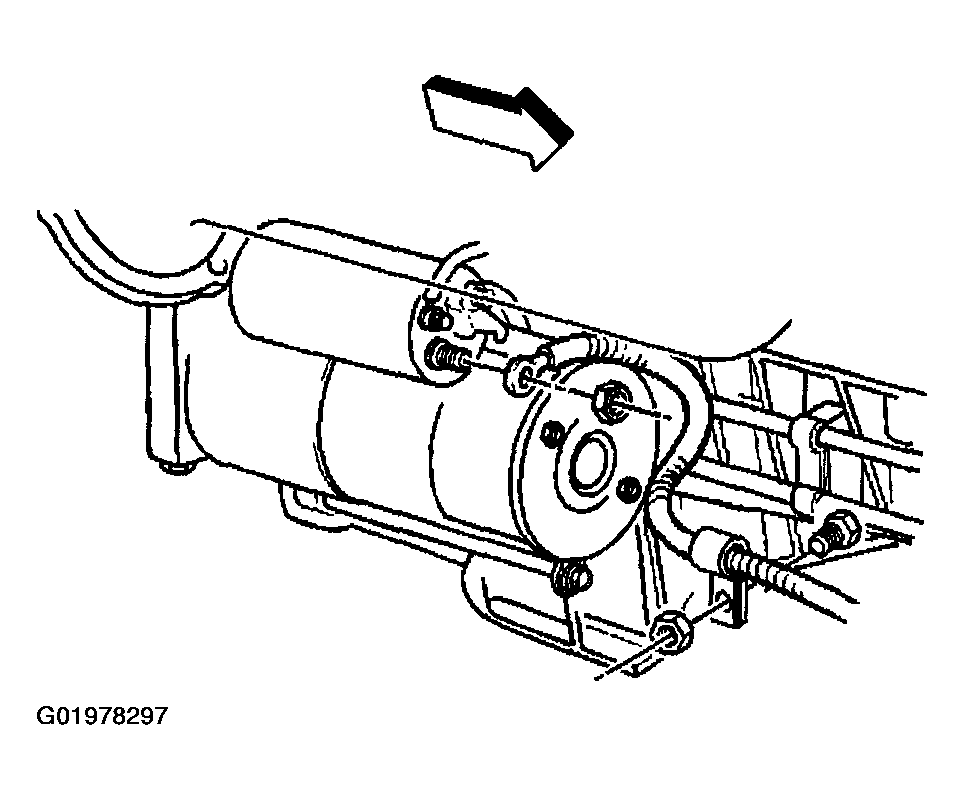

    Fig 1: Installing Positive Battery Cable Nut To Engine
    G01978297Courtesy of GENERAL MOTORS CORP.
  5. Install the nut retaining the positive battery cable to the generator.

    Tighten

    Tighten the positive battery cable nut to 17 N.m (13 lb ft).

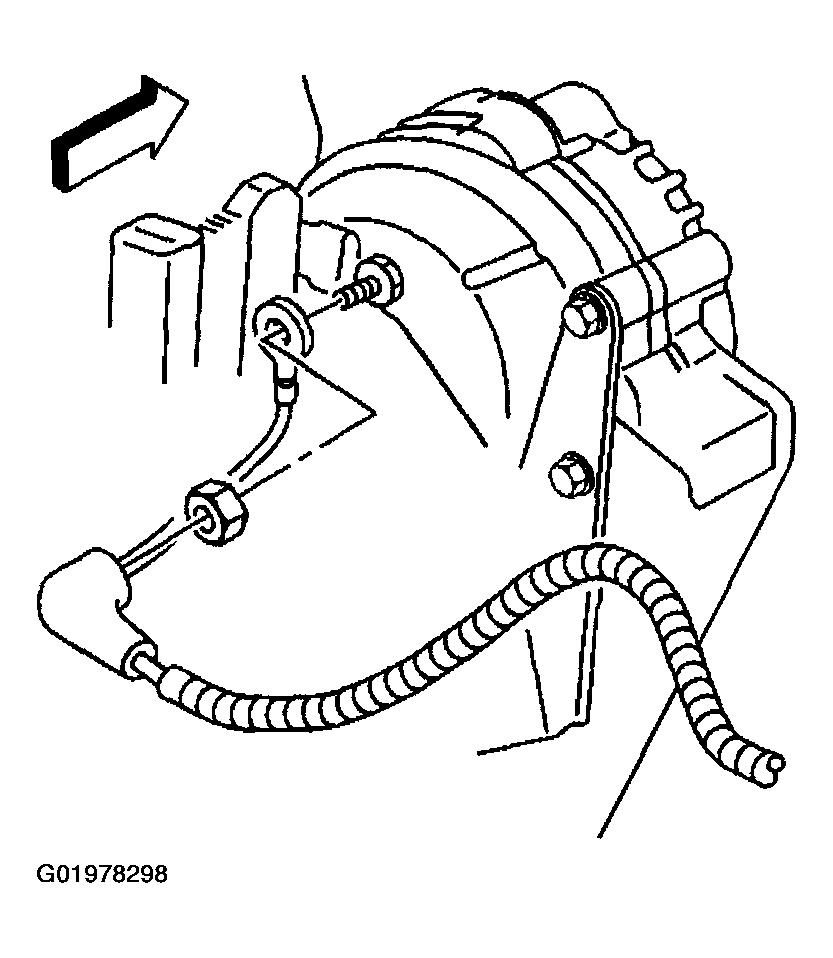

    Fig 2: Installing Nut Retaining Positive Battery Cable To Generator
    G01978298Courtesy of GENERAL MOTORS CORP.
  6. Install the nut retaining the positive battery cable to the underhood fuse block.

    Tighten

    Tighten the positive battery cable nut to 10 N.m (89 lb in).

  7. Connect the positive battery cable to the battery.

    Tighten

    Tighten the positive terminal bolt to 14 N.m (11 lb ft).

  8. Connect the negative battery cable to the battery.

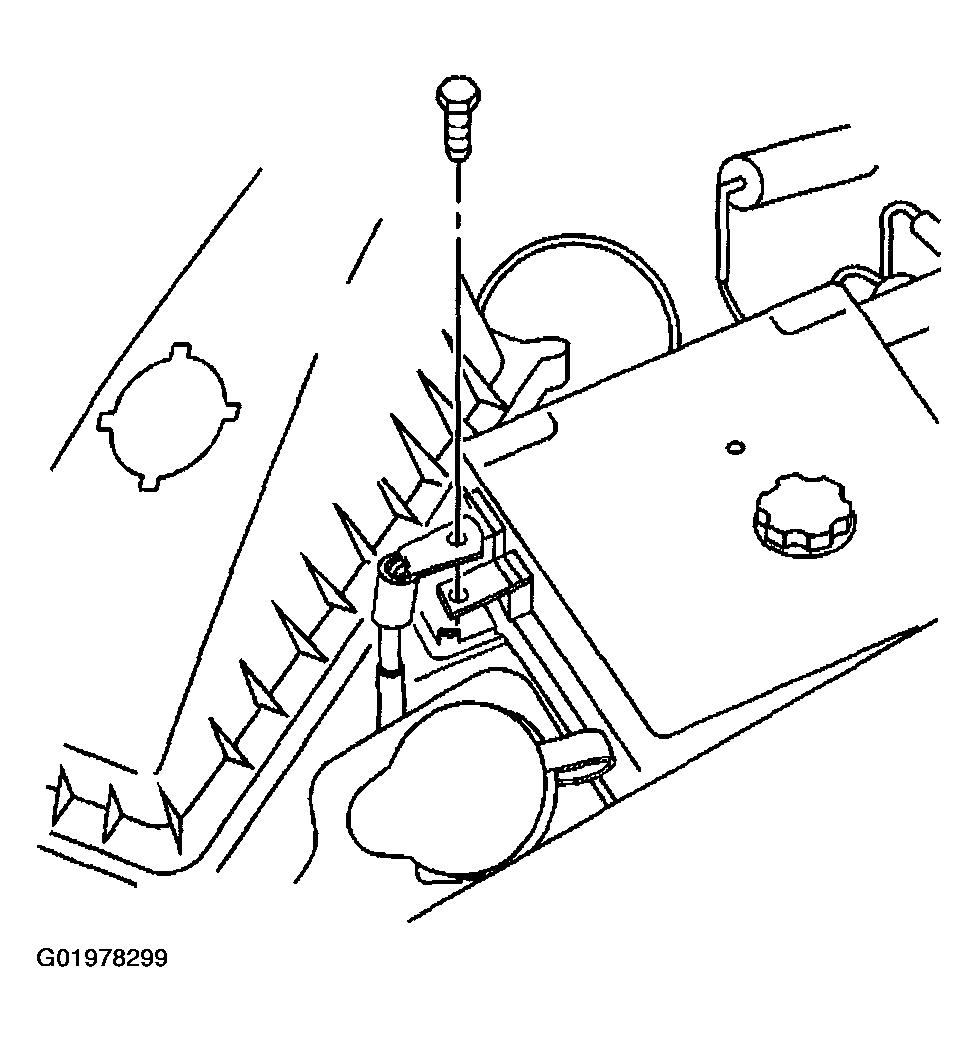

    Fig 3: Installing Nut Retaining Positive Battery Cable To Underhood Fuse Block
    G01978299Courtesy of GENERAL MOTORS CORP.
