Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.

Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
Remove the negative battery cable bolt from the frame.

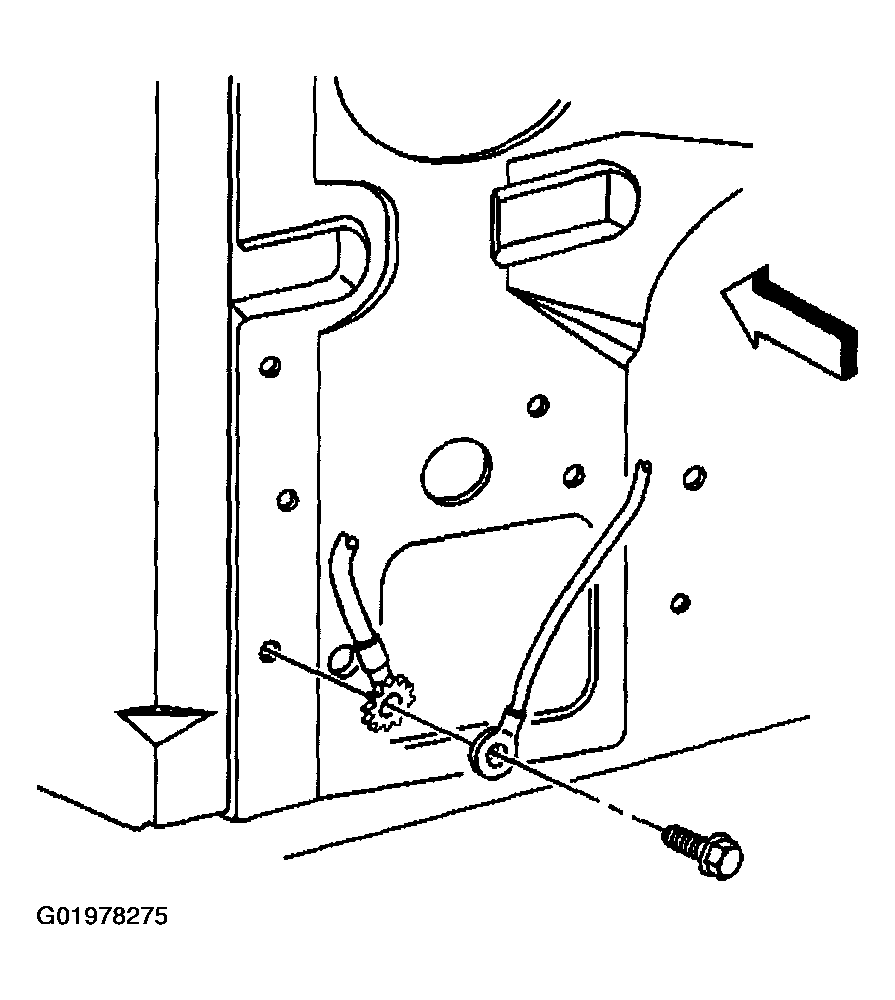

Fig 1: Removing Negative Battery Cable
Courtesy of GENERAL MOTORS CORP.
Remove the negative battery cable bolt from the radiator support.

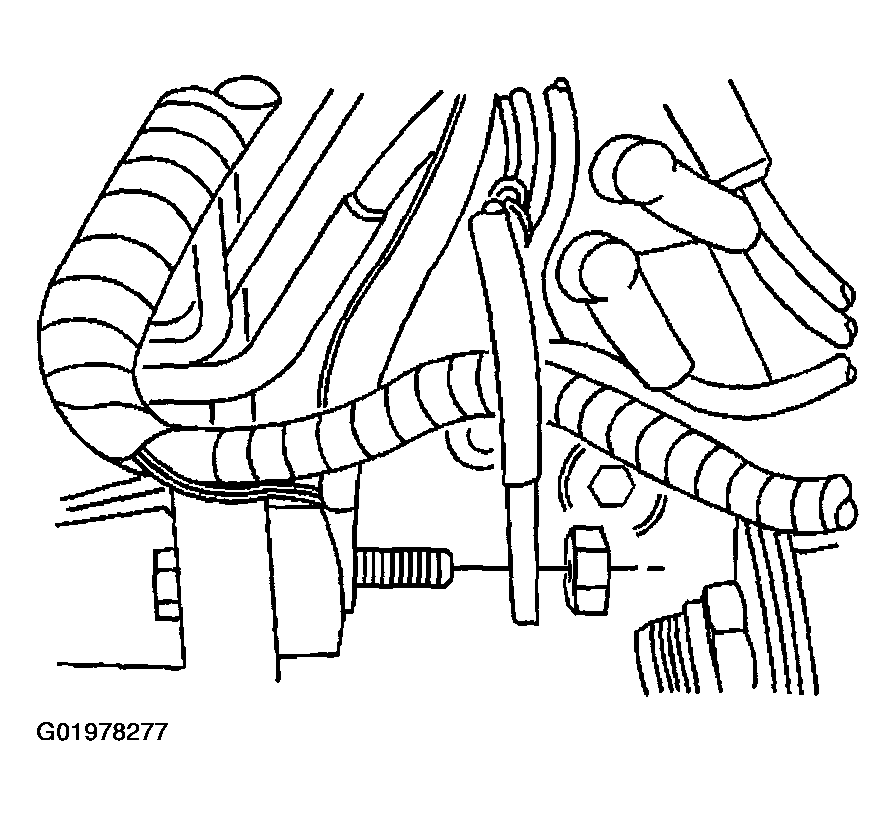

Fig 2: Removing Negative Battery Cable Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the negative cable harness bolt from the engine.

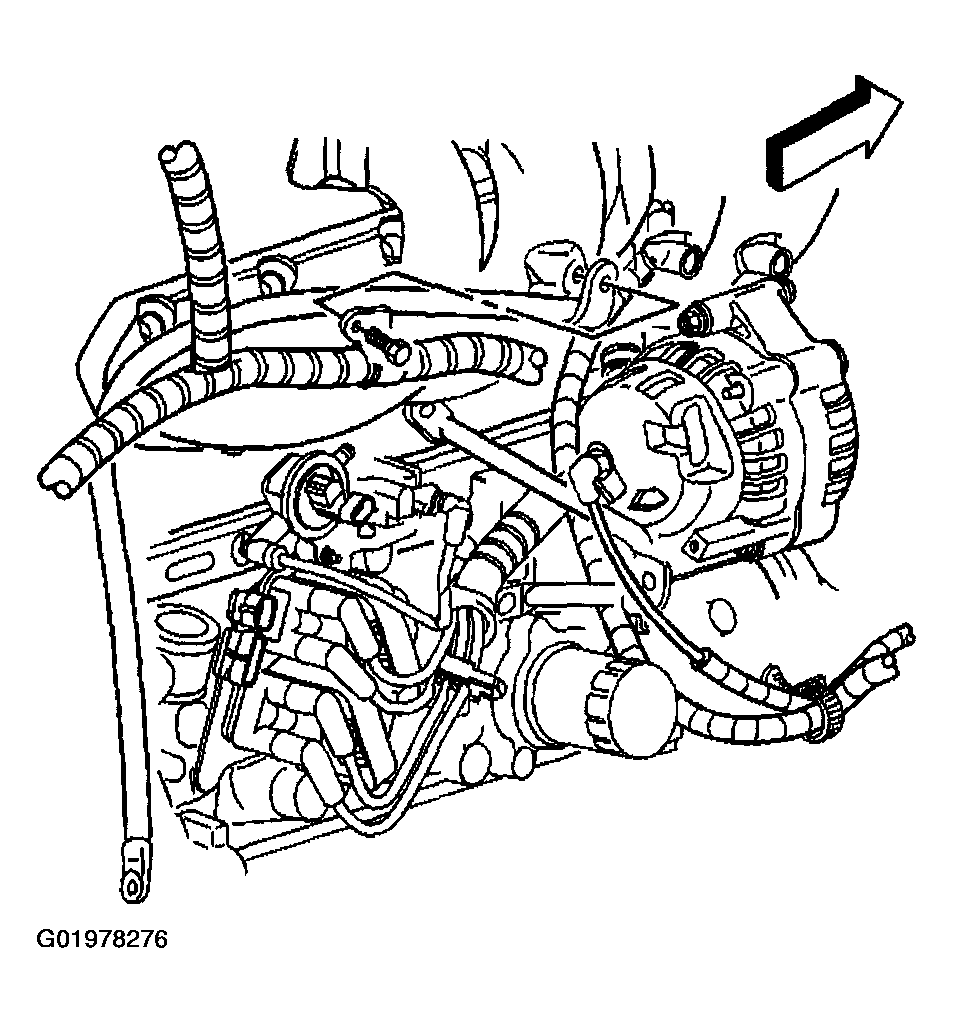

Fig 3: Removing Negative Cable Harness Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the negative battery cable nut from the block.
Remove the negative battery cable.

Fig 4: Removing Negative Battery Cable
Courtesy of GENERAL MOTORS CORP.
