Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the negative battery cable.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the negative battery cable nut to the block.

    Tighten

    Tighten the negative battery cable nut to 17 N.m (13 lb ft).

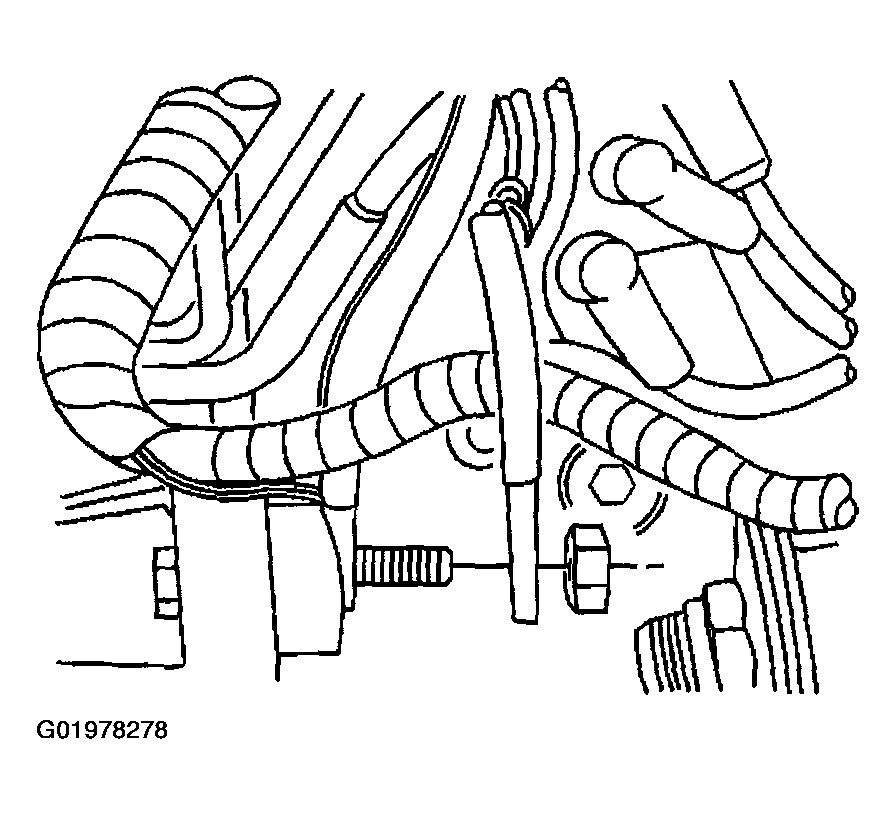

    Fig 1: Installing Negative Battery Cable
    G01978278Courtesy of GENERAL MOTORS CORP.
  3. Install the negative battery cable bolt to the engine.

    Tighten

    Tighten the negative battery cable bolt to 12 N.m (106 lb in).

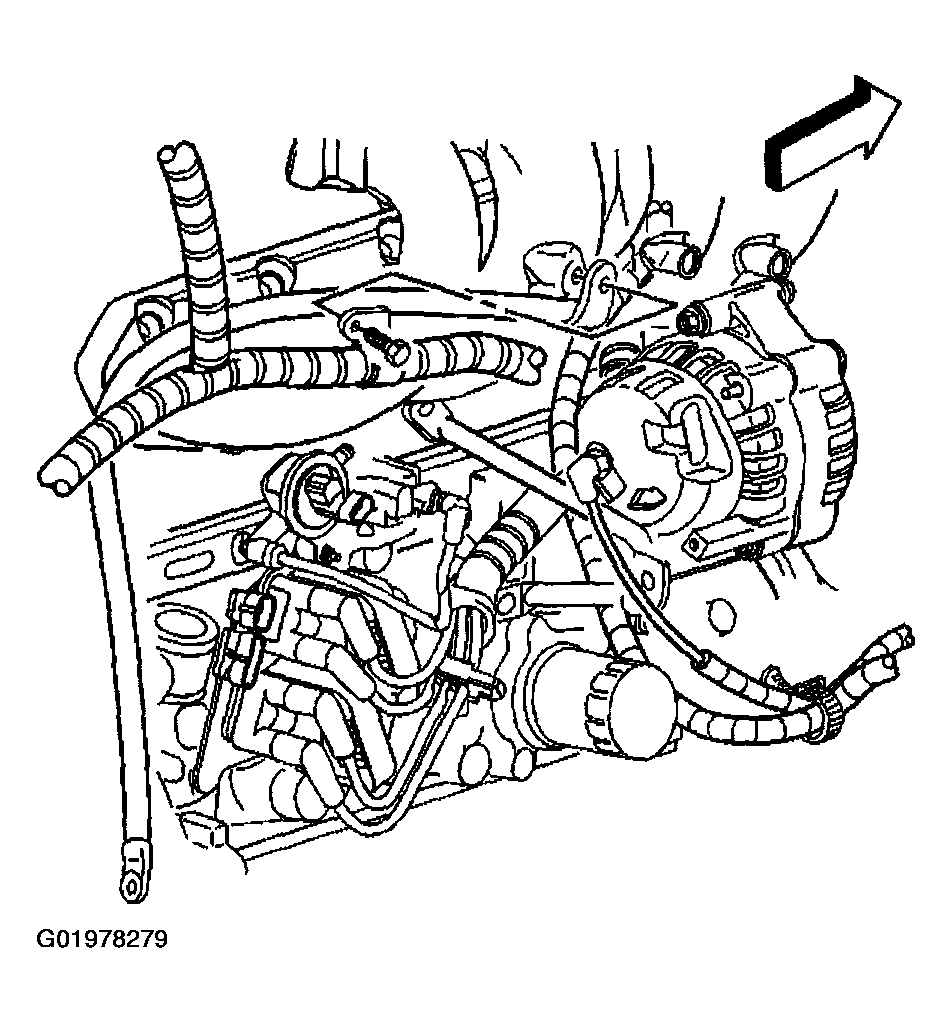

    Fig 2: Installing Negative Battery Cable Bolt
    G01978279Courtesy of GENERAL MOTORS CORP.
  4. Install the negative battery cable bolt to the radiator support.

    Tighten

    Tighten the negative battery cable bolt to 6 N.m (53 lb in).

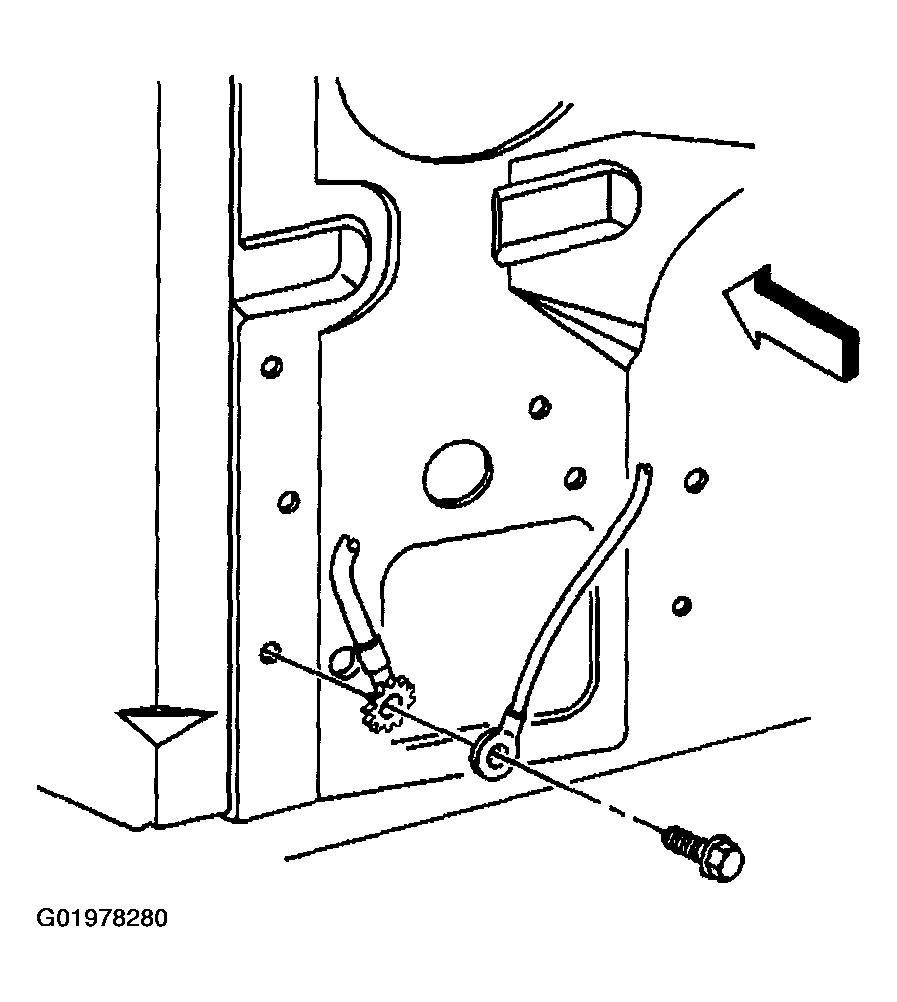

    Fig 3: Installing Negative Battery Cable
    G01978280Courtesy of GENERAL MOTORS CORP.
  5. Install the bolt anchoring the negative battery cable bolt to the frame.

    Tighten

    Tighten the negative battery cable bolt to 6 N.m (53 lb in).

  6. Lower the vehicle.
  7. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .
    Fig 4: Connecting Negative Battery Cable
    G01978281Courtesy of GENERAL MOTORS CORP.
