Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn off all the lamps and accessories.
  2. Turn the ignition OFF.
    CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  3. Remove the battery ground negative cable and bolt from the battery 4.3L.

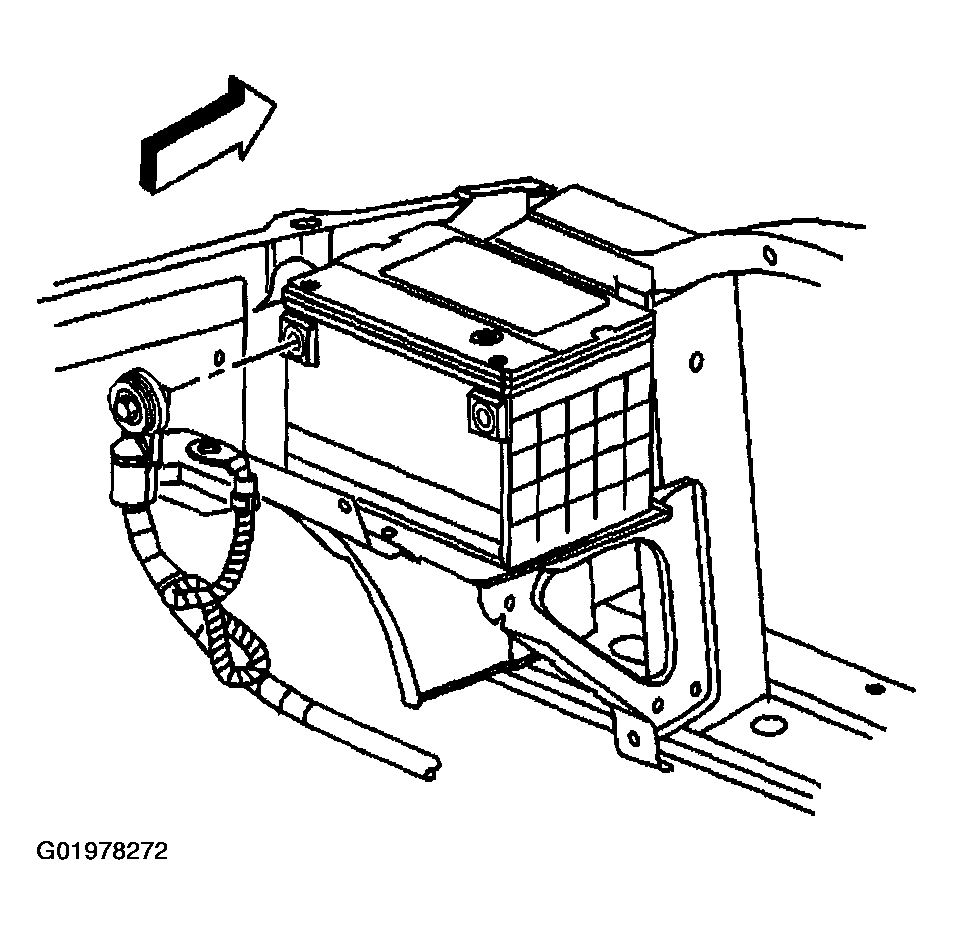

    Fig 1: Removing Battery Ground Negative Cable
    G01978272Courtesy of GENERAL MOTORS CORP.
