Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Partially drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
Remove the air cleaner outlet duct.
Remove the throttle body bracket nuts and reposition the bracket.

Fig 1: Removing Thermostat (4.3L)
Courtesy of GENERAL MOTORS CORP.

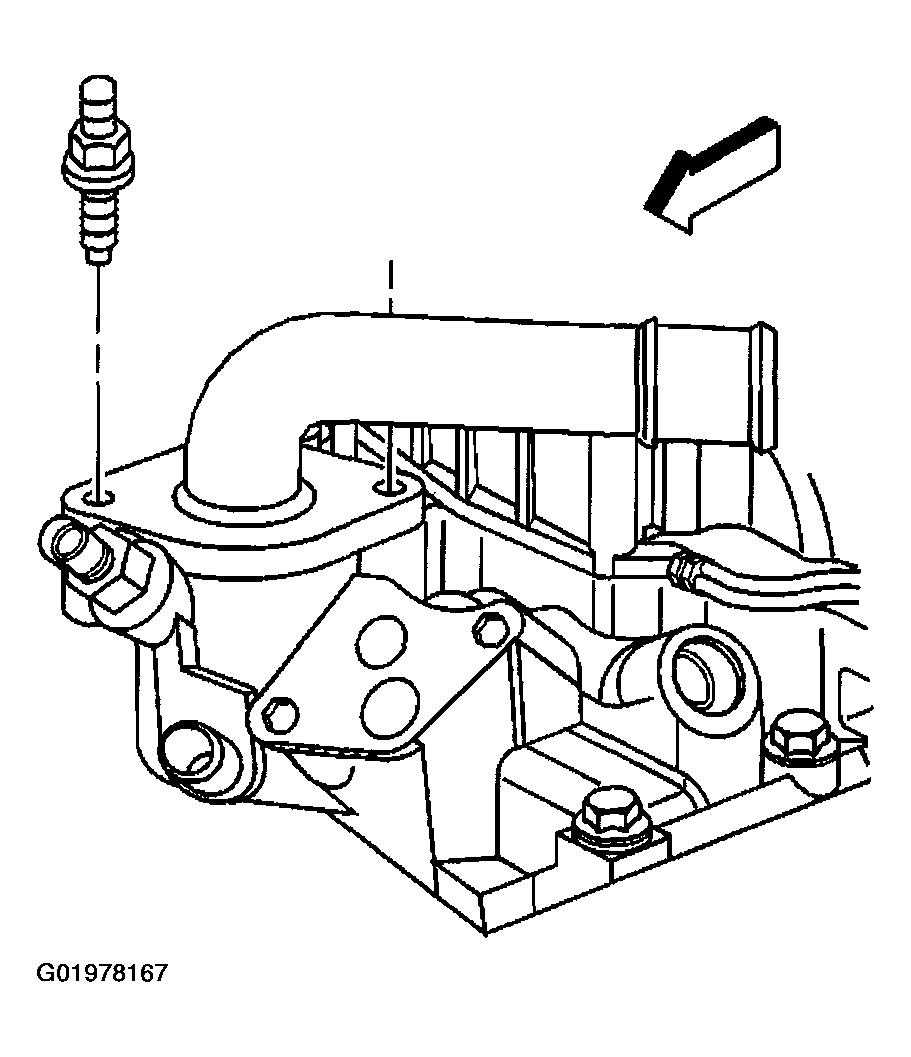

Remove the water outlet housing mounting bolts.

Fig 2: Removing Water Outlet Housing Mounting
Courtesy of GENERAL MOTORS CORP.

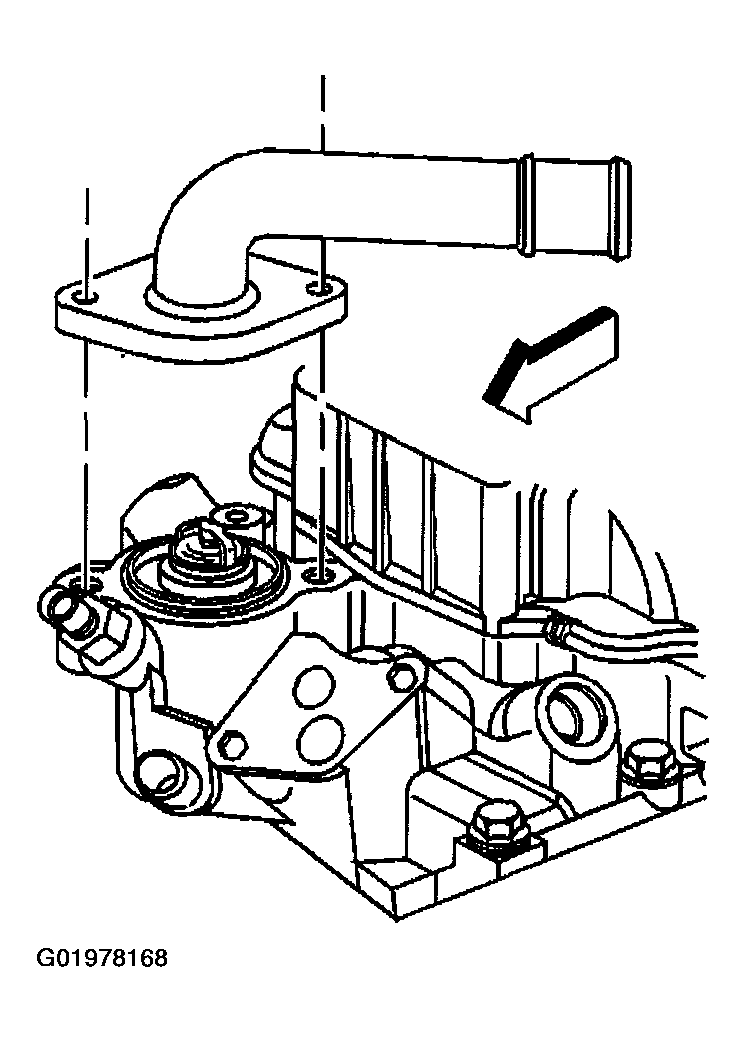

Remove the water outlet housing from the lower intake manifold and set aside.
Remove the gasket or O-ring.

Fig 3: Removing Gasket Or O-Ring
Courtesy of GENERAL MOTORS CORP.

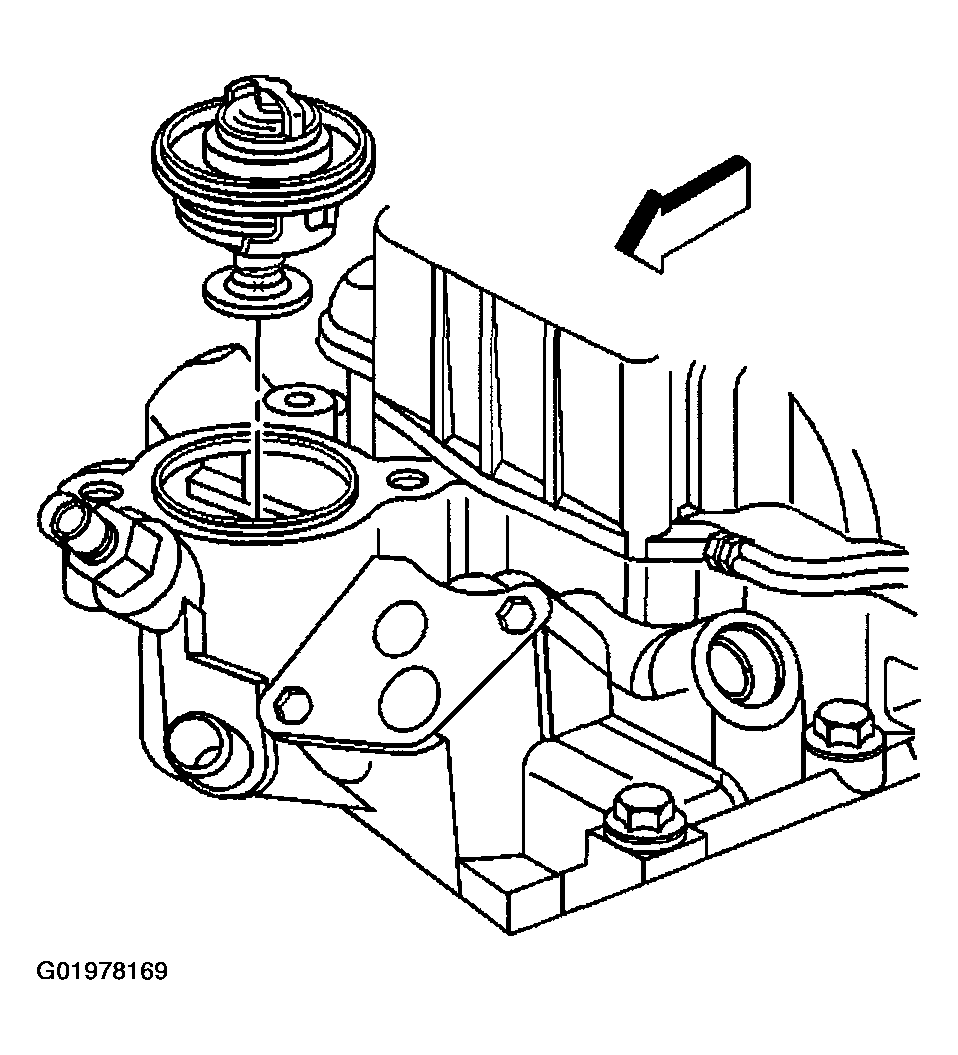

Remove the thermostat.
Clean all the sealing surfaces of the water outlet housing.
Clean the sealing surface on the lower intake manifold.

Fig 4: Removing Thermostat
Courtesy of GENERAL MOTORS CORP.
