Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
Using the J 38185 reposition the radiator outlet hose clamp from the radiator.

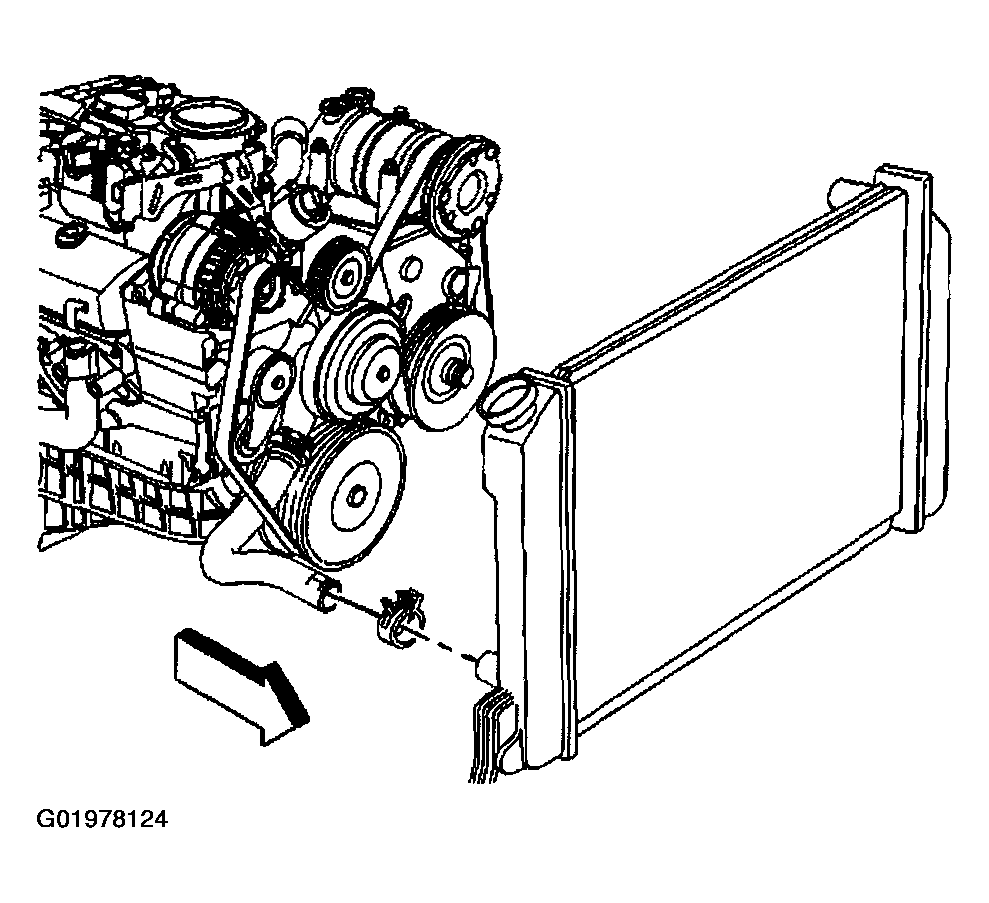

Fig 1: Removing Radiator Hose - Outlet (4.3L)
Courtesy of GENERAL MOTORS CORP.
Using the J 38185 reposition the radiator outlet hose clamp from the water pump.
Remove the radiator outlet hose.

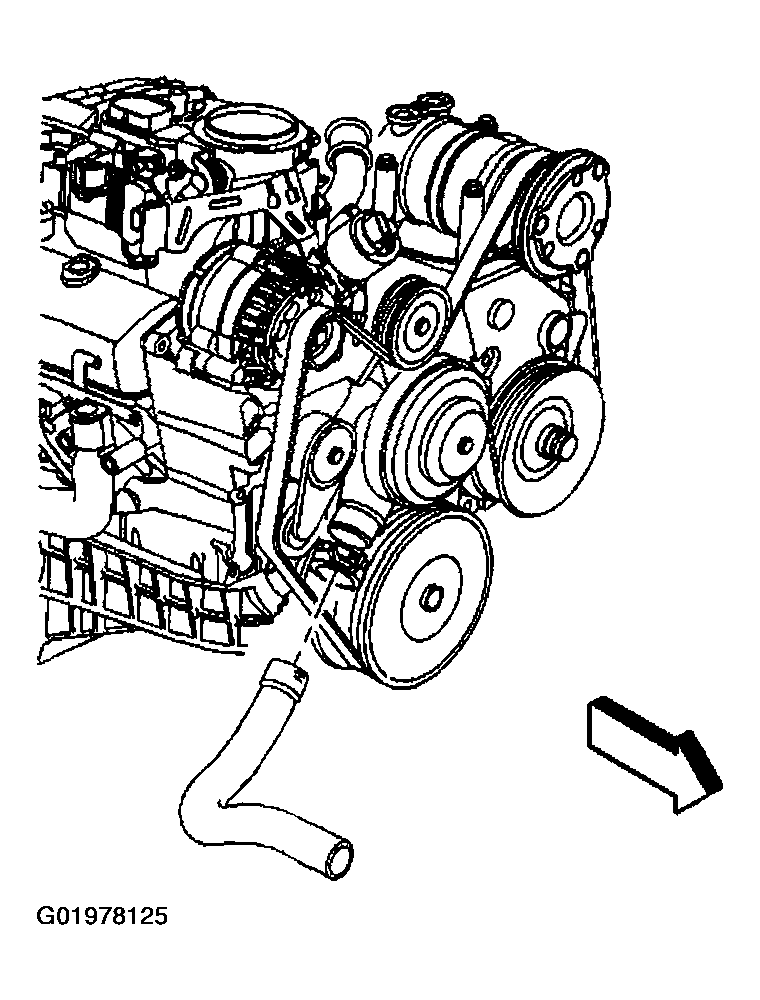

Fig 2: Removing Radiator Outlet Hose
Courtesy of GENERAL MOTORS CORP.
