Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .
  2. Remove the radiator outlet hose clamp from the radiator.
  3. Remove the radiator outlet hose from the radiator.

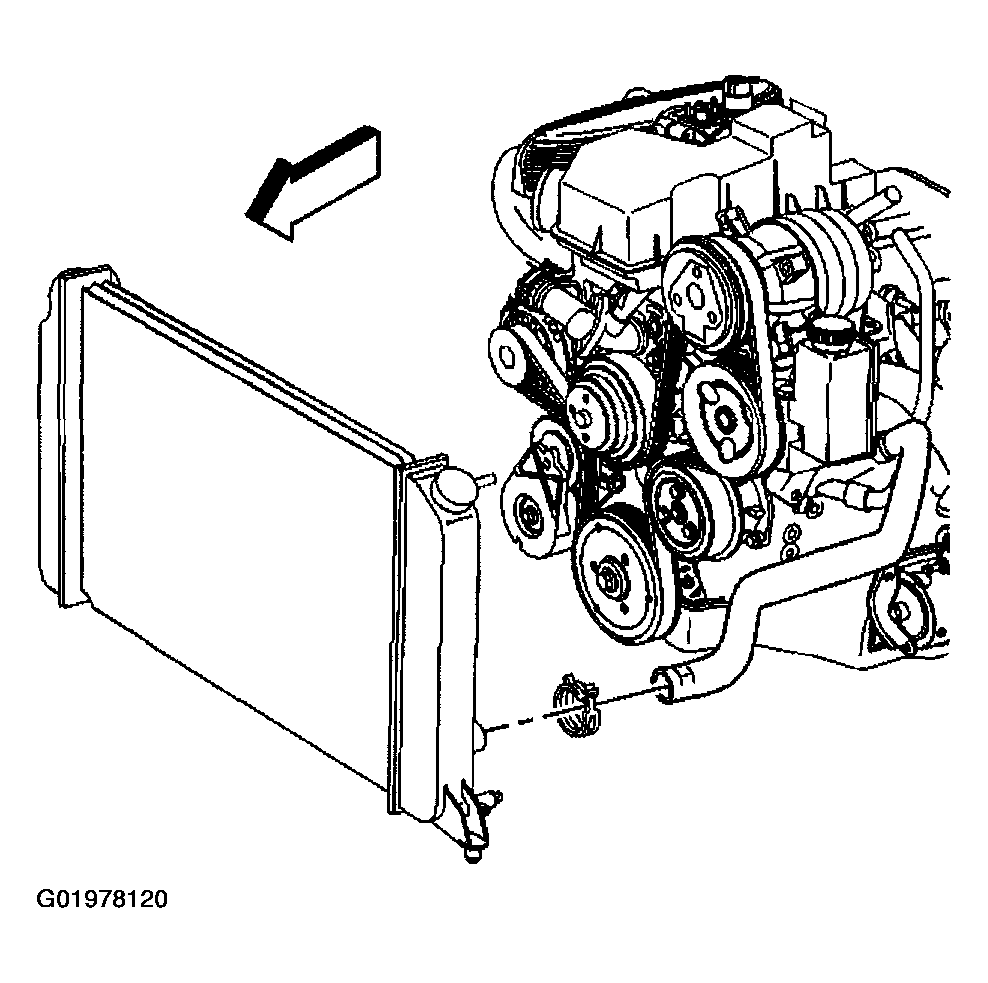

    Fig 1: Removing Radiator Hose - Outlet (2.2L)
    G01978120Courtesy of GENERAL MOTORS CORP.
  4. Remove the radiator outlet hose clamp from the water pump.
  5. Remove the radiator outlet hose from the water pump.
  6. Remove the radiator outlet hose.

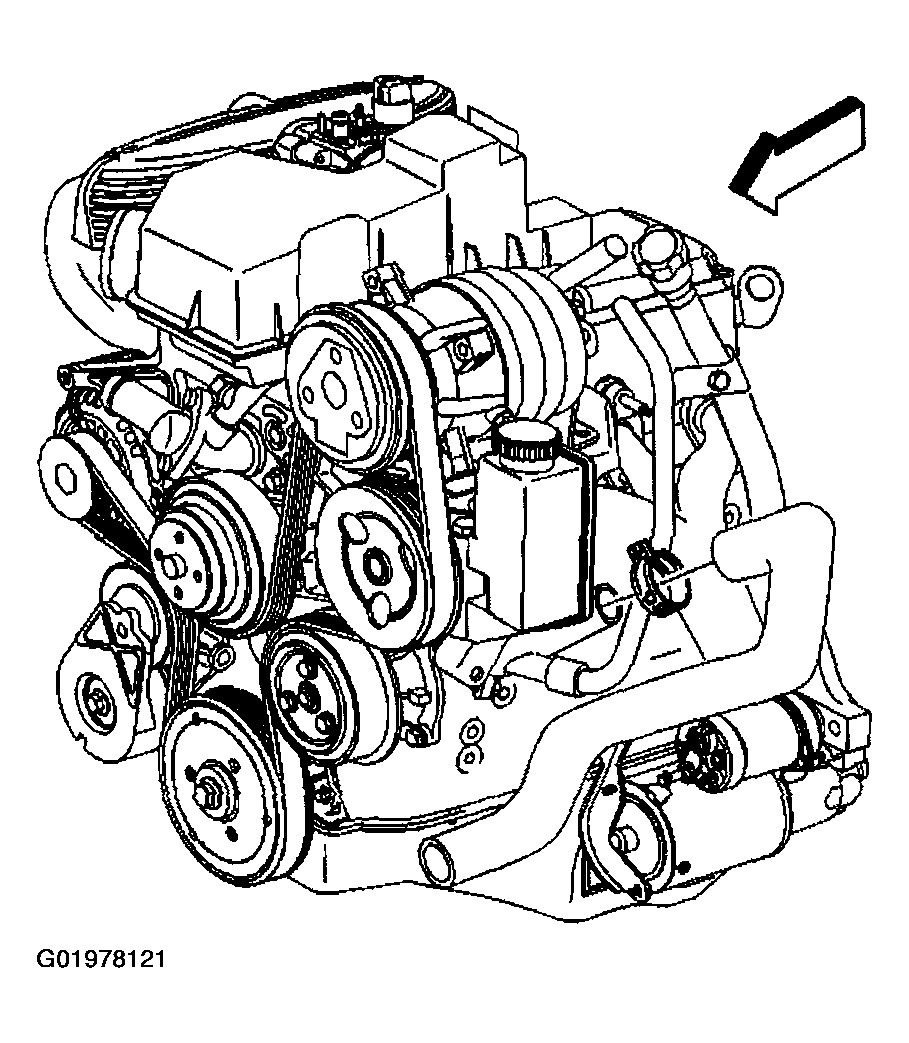

    Fig 2: Removing Radiator Outlet Hose
    G01978121Courtesy of GENERAL MOTORS CORP.
