Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the radiator outlet hose to the water pump.
Install the radiator outlet hose clamp to the water pump.

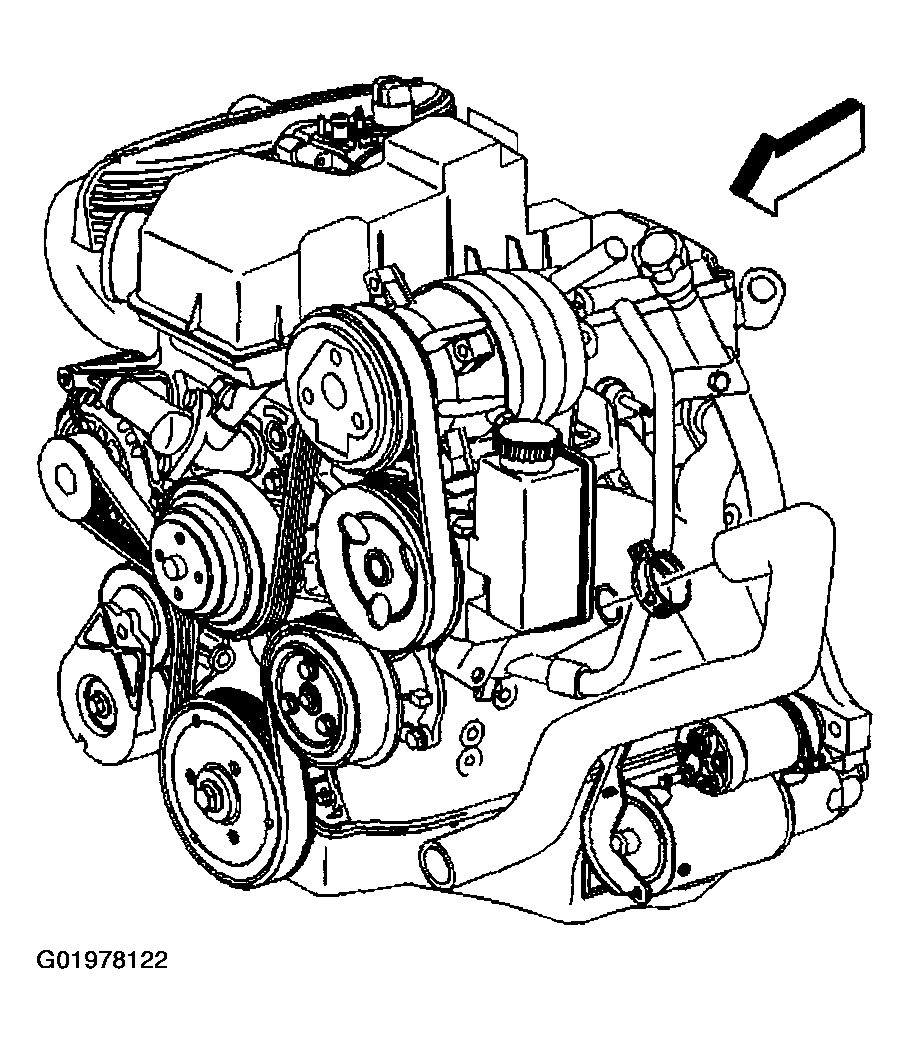

Fig 1: Installing Radiator Outlet Hose
Courtesy of GENERAL MOTORS CORP.
Instal the radiator outlet hose to the radiator.
Install the radiator outlet hose clamp to the radiator.
Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .

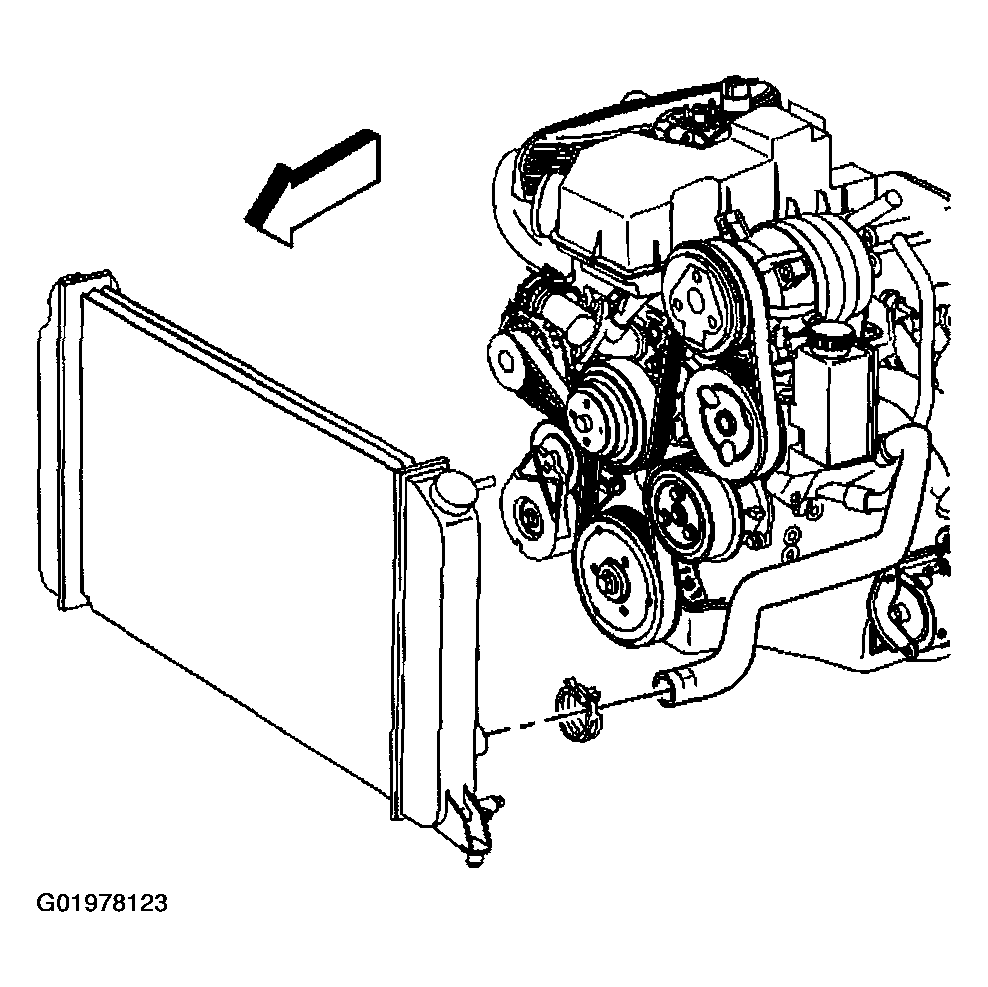

Fig 2: Installing Radiator Outlet Hose TO Radiator
Courtesy of GENERAL MOTORS CORP.
Inspect the cooling system for leaks.
