Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator inlet hose to the coolant outlet.
  2. Using the J 38185  , reposition the radiator inlet hose clamp to the coolant outlet.

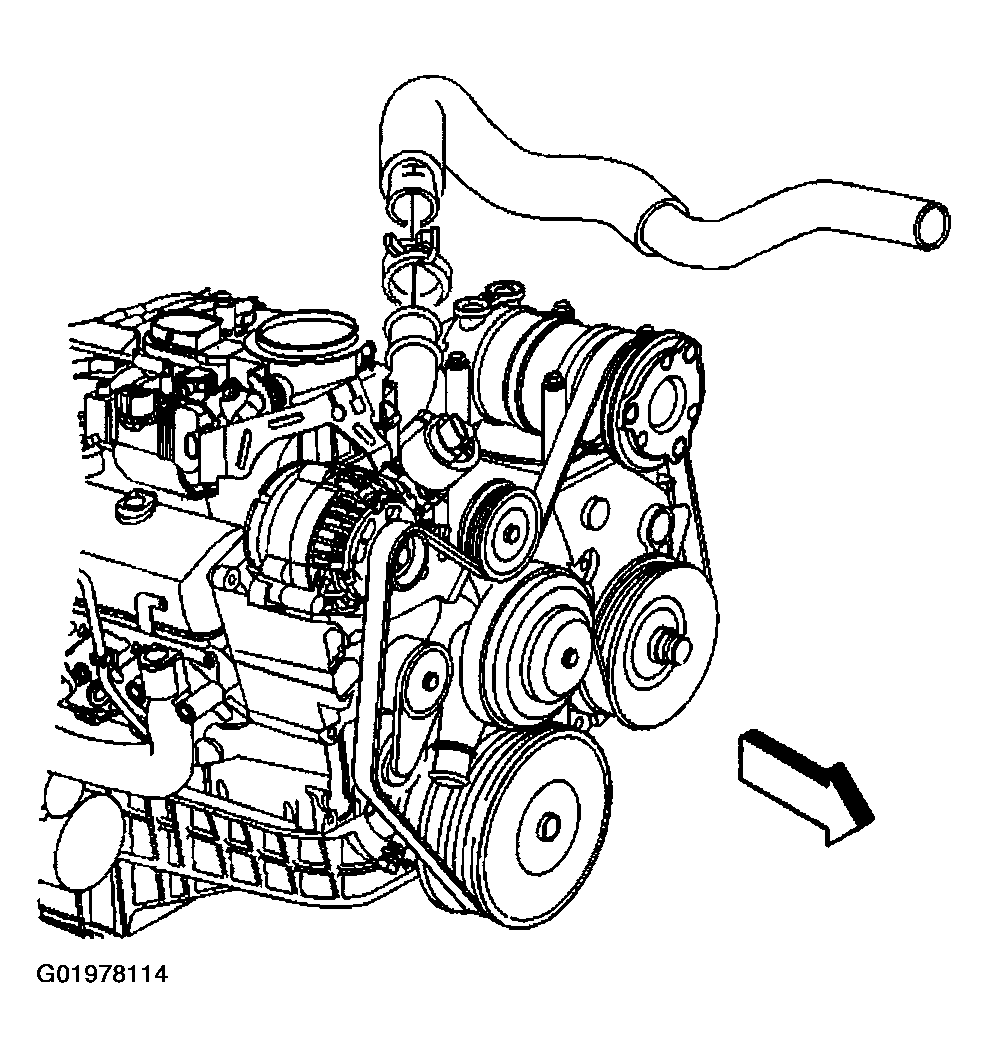

    Fig 1: Installing Radiator Inlet Hose
    G01978114Courtesy of GENERAL MOTORS CORP.
  3. Install the radiator inlet hose to the radiator.
  4. Using the J 38185  , reposition the radiator inlet hose clamp to the radiator.
  5. Install the radiator inlet hose to the radiator support.
  6. Install the air cleaner outlet duct.
  7. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .
  8. Inspect the cooling system for leaks.

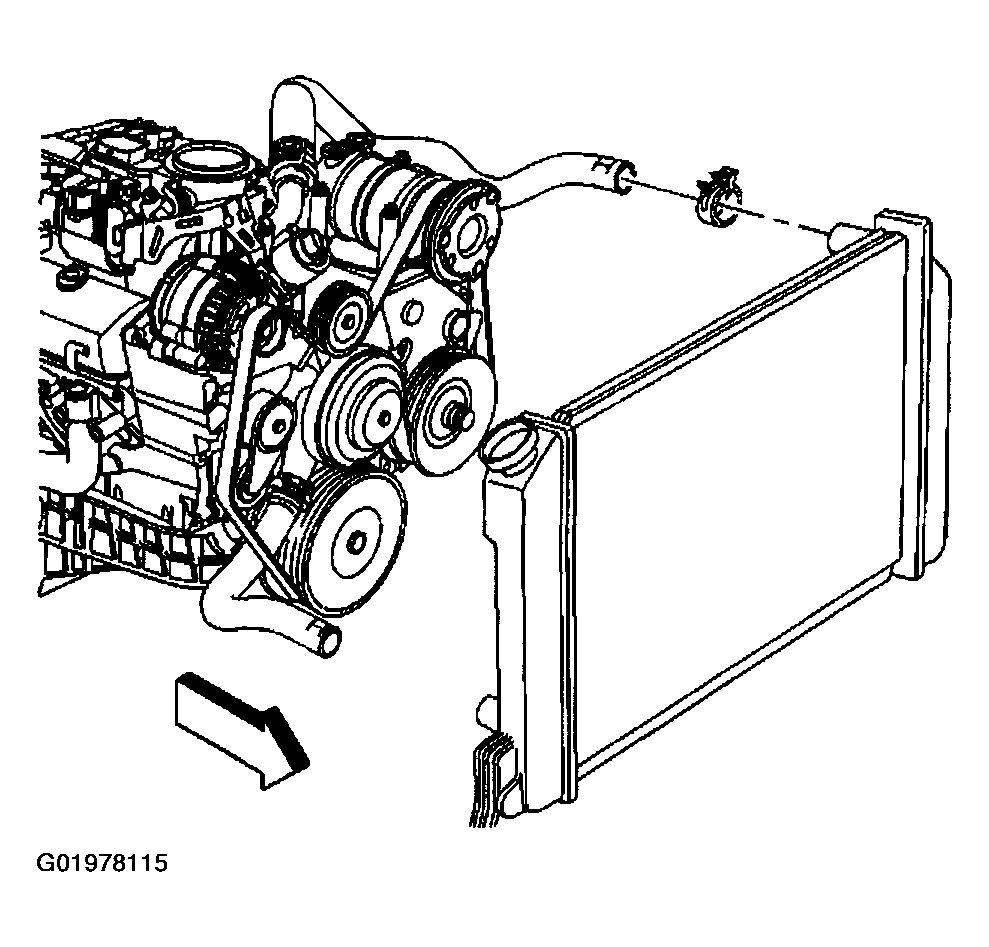

    Fig 2: Installing Radiator Inlet Hose To Radiator Hose
    G01978115Courtesy of GENERAL MOTORS CORP.
