Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Partially drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
Remove the air cleaner outlet resonator.
Remove the radiator inlet hose from the support.
Using the J 38185 reposition the radiator inlet hose clamp from the radiator.

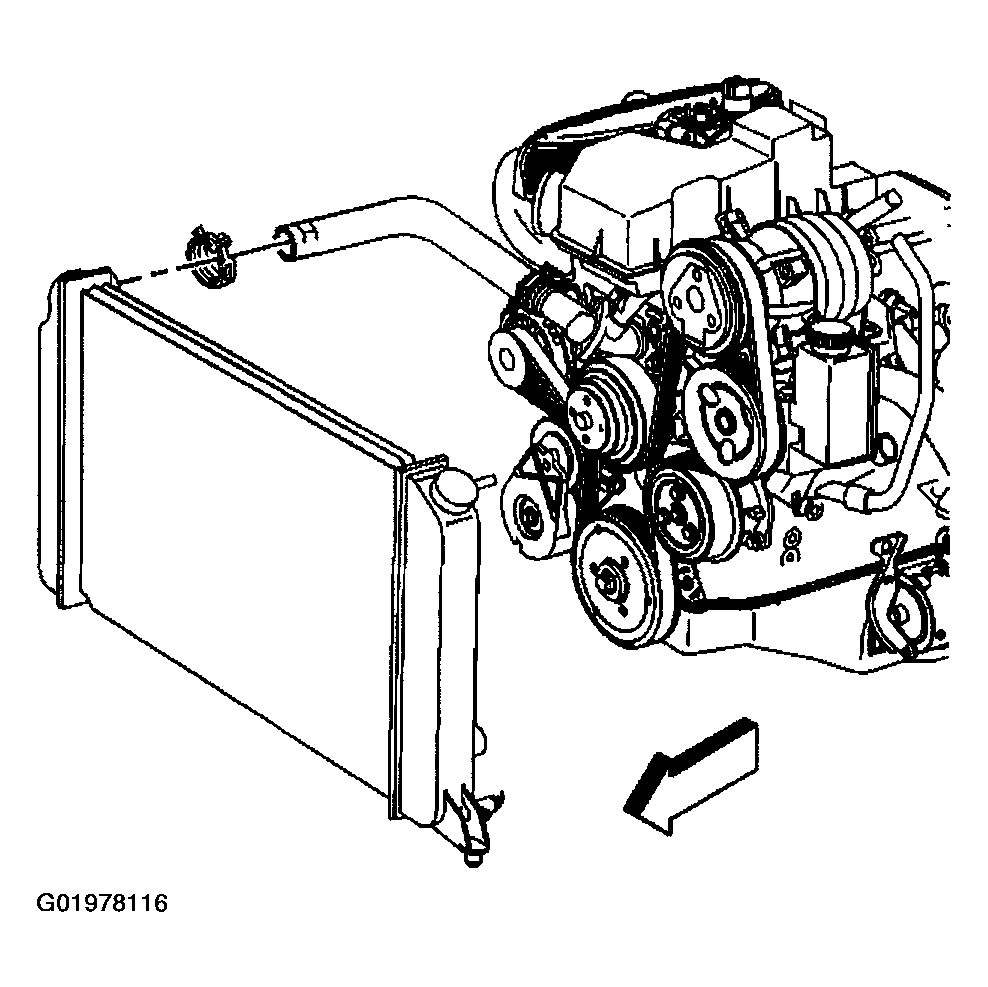

Fig 1: Removing Radiator Inlet Hose - Inlet (2.2L)
Courtesy of GENERAL MOTORS CORP.
Using the J 38185 reposition the radiator inlet hose clamp from the coolant outlet.
Remove the radiator inlet hose.

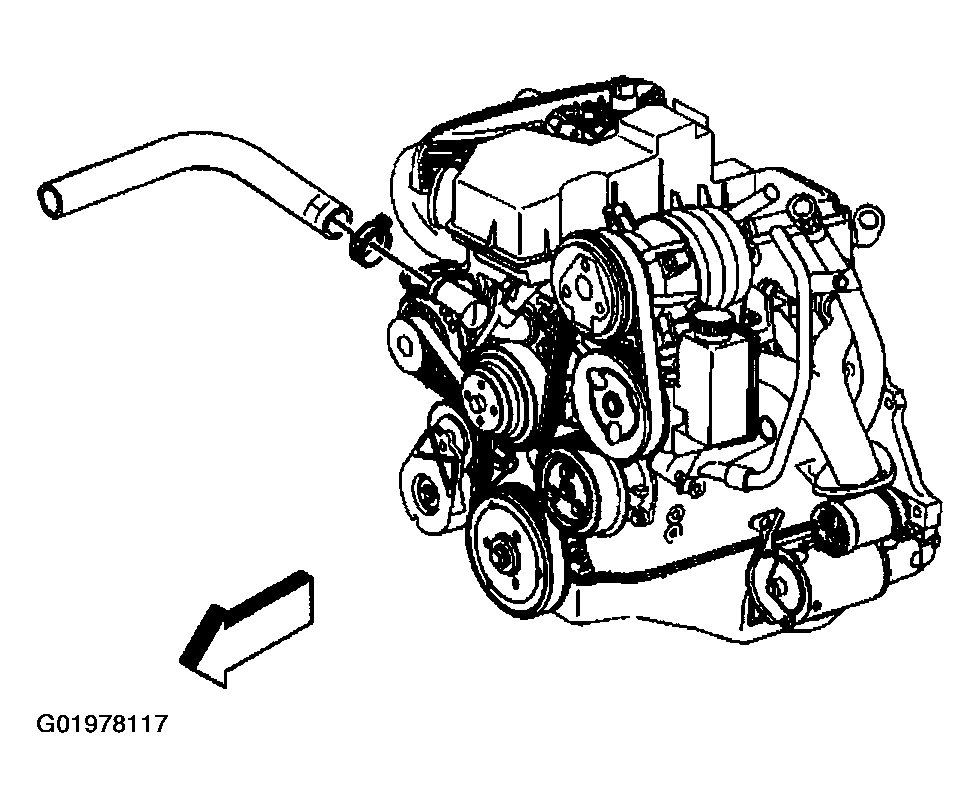

Fig 2: Removing Radiator Inlet Hose
Courtesy of GENERAL MOTORS CORP.
