Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped with the 2.2L, remove the air intake duct assembly:
    1. 1.1. Loosen the air intake duct clamps.
    2. 1.2. Remove the air intake duct push pins.
    3. 1.3. Remove the air intake duct assembly (1) from the fan shroud (3).

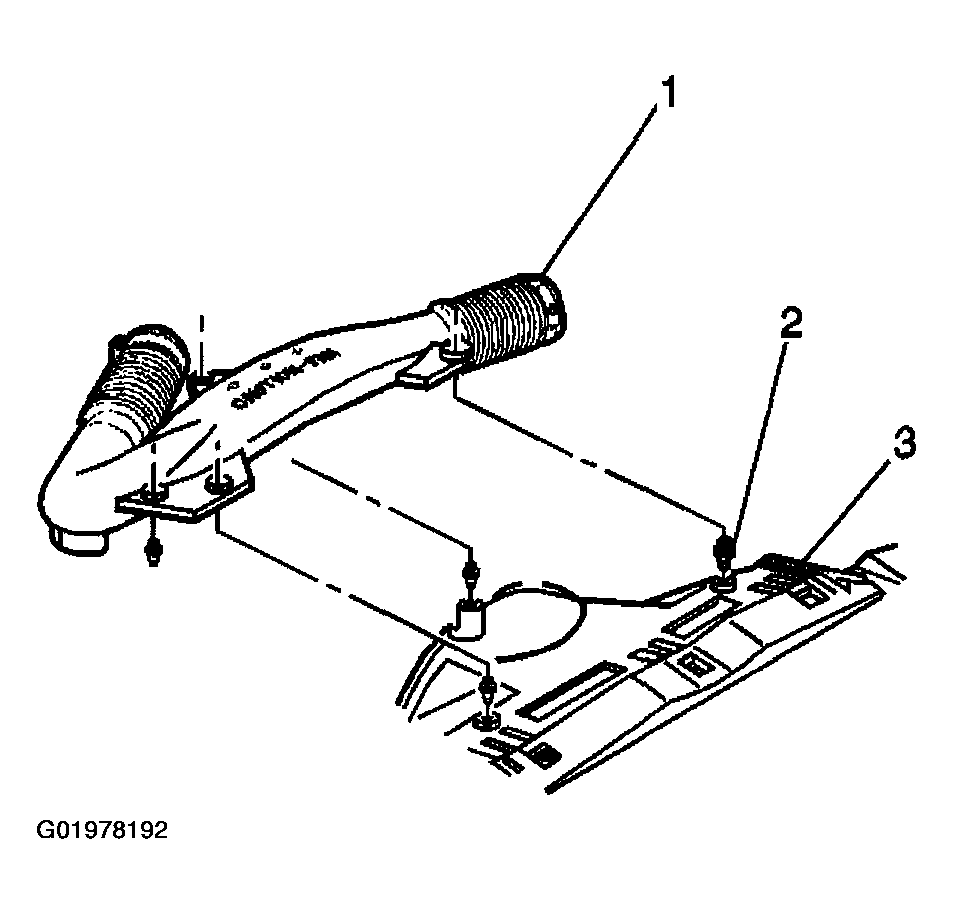

      Fig 1: Removing Fan Shroud
      G01978192Courtesy of GENERAL MOTORS CORP.
  2. Remove the upper fan shroud bolts.

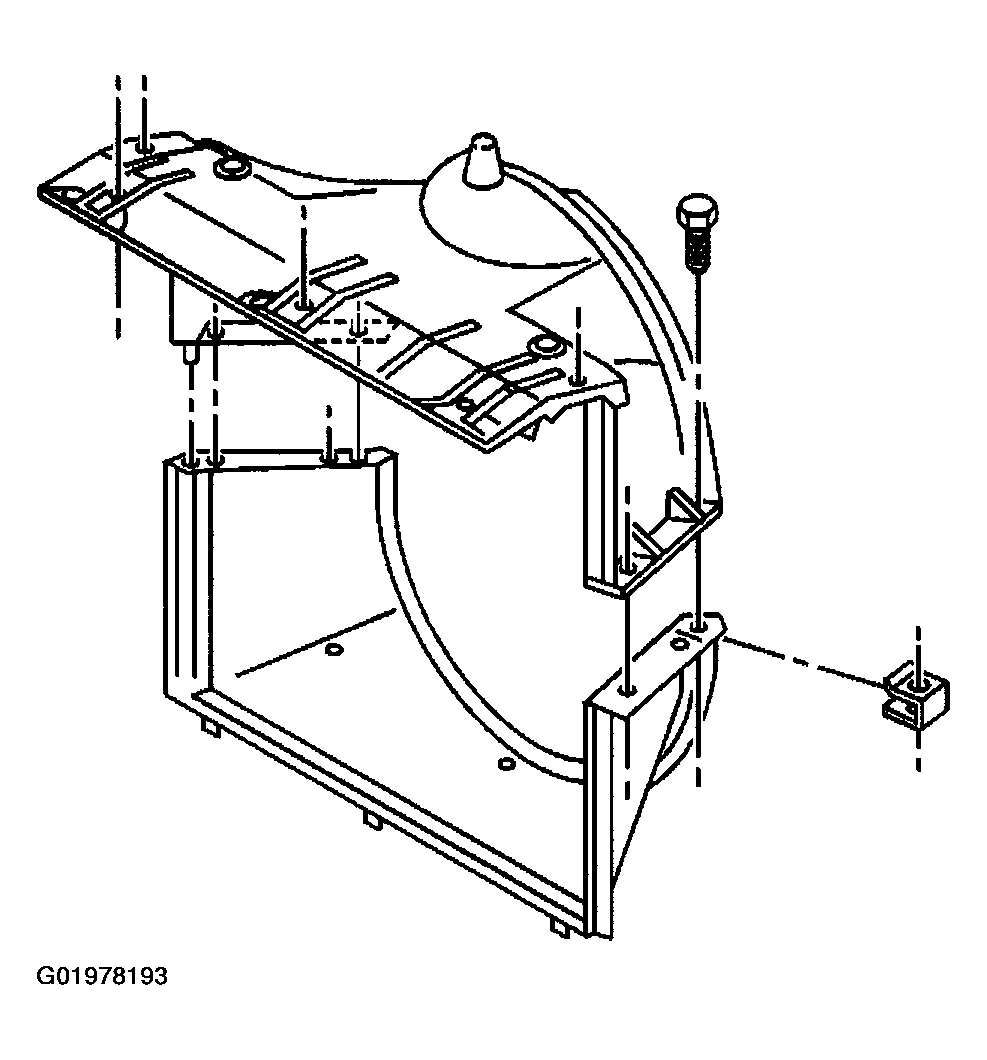

    Fig 2: Removing Upper Fan Shroud Bolts
    G01978193Courtesy of GENERAL MOTORS CORP.
  3. Remove the coolant recovery reservoir hose from the lower fan shroud.
  4. Remove the upper fan shroud.

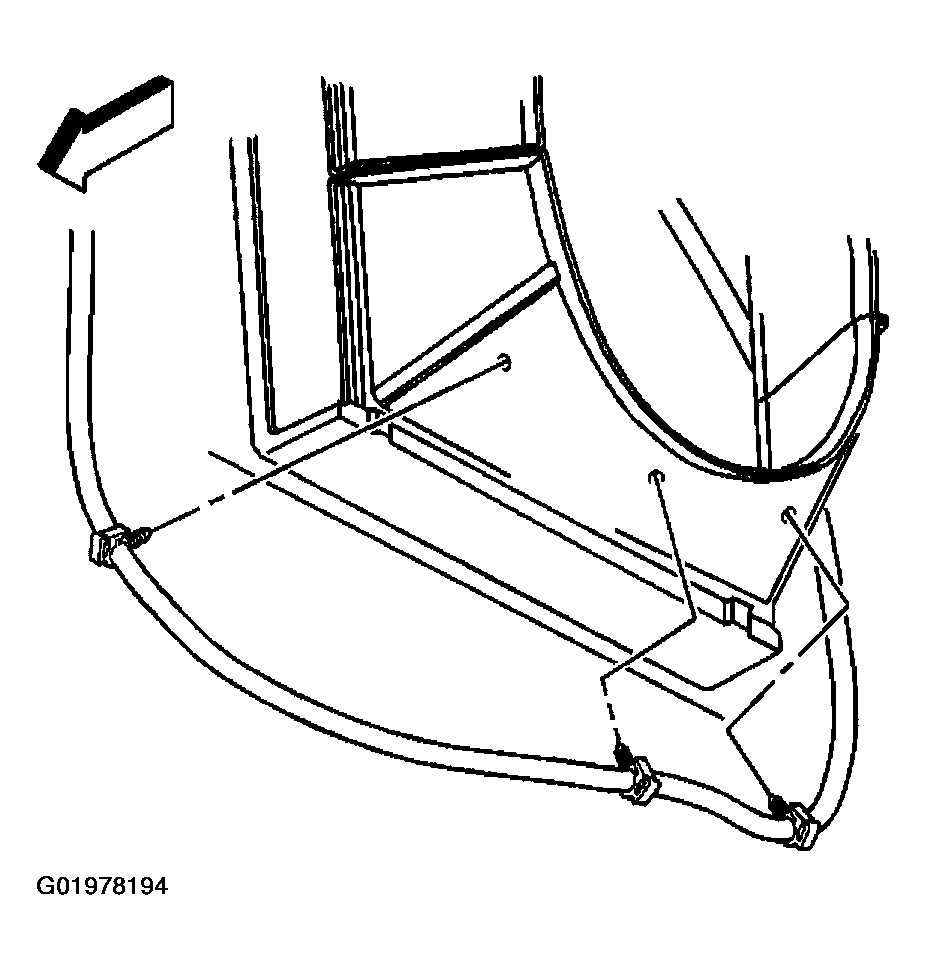

    Fig 3: Removing Coolant Recovery Reservoir Hose
    G01978194Courtesy of GENERAL MOTORS CORP.
  5. Lift the lower fan shroud just enough to disengage the locating tabs from the radiator.
  6. Remove the lower fan shroud from the vehicle.
    Fig 4: Remove The Lower Fan Shroud From The Vehicle
    G01978195Courtesy of GENERAL MOTORS CORP.
