Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Important: When performing the following procedure, do not reuse the old retaining rings. Replace the old retaining rings with new ones.

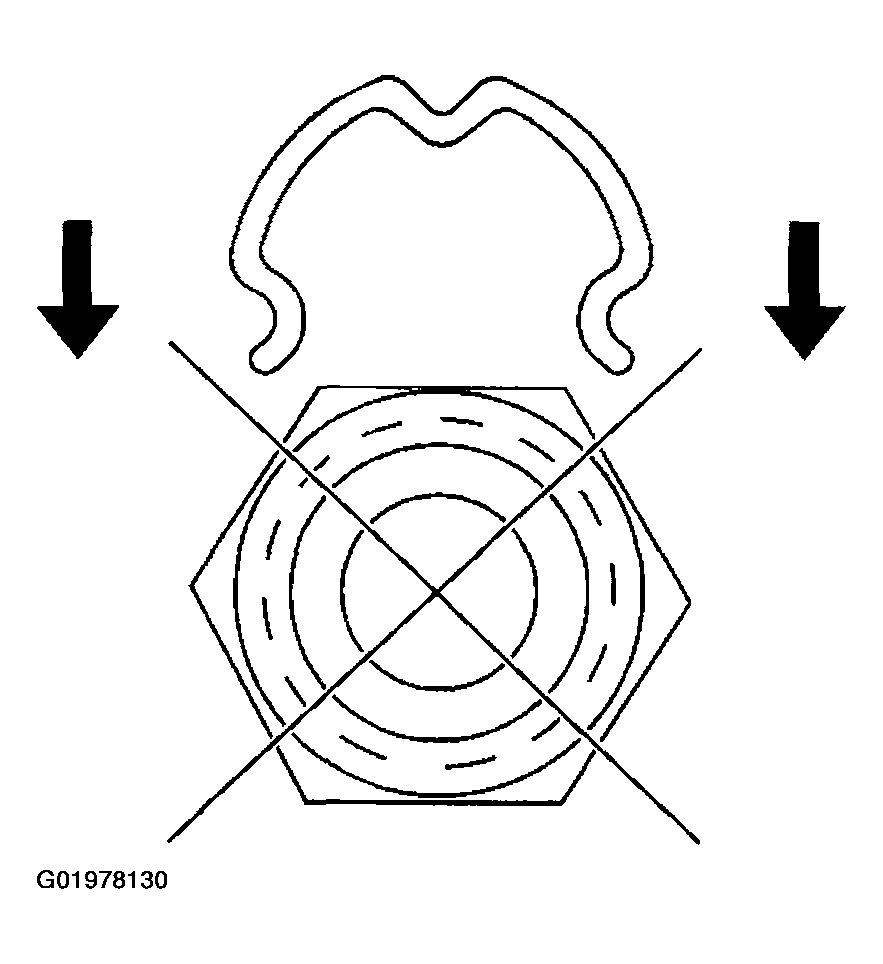

Do not install the new retaining ring onto the fitting by pushing the retaining ring down over the fitting.

Install a new retaining ring into each quick connector fitting.

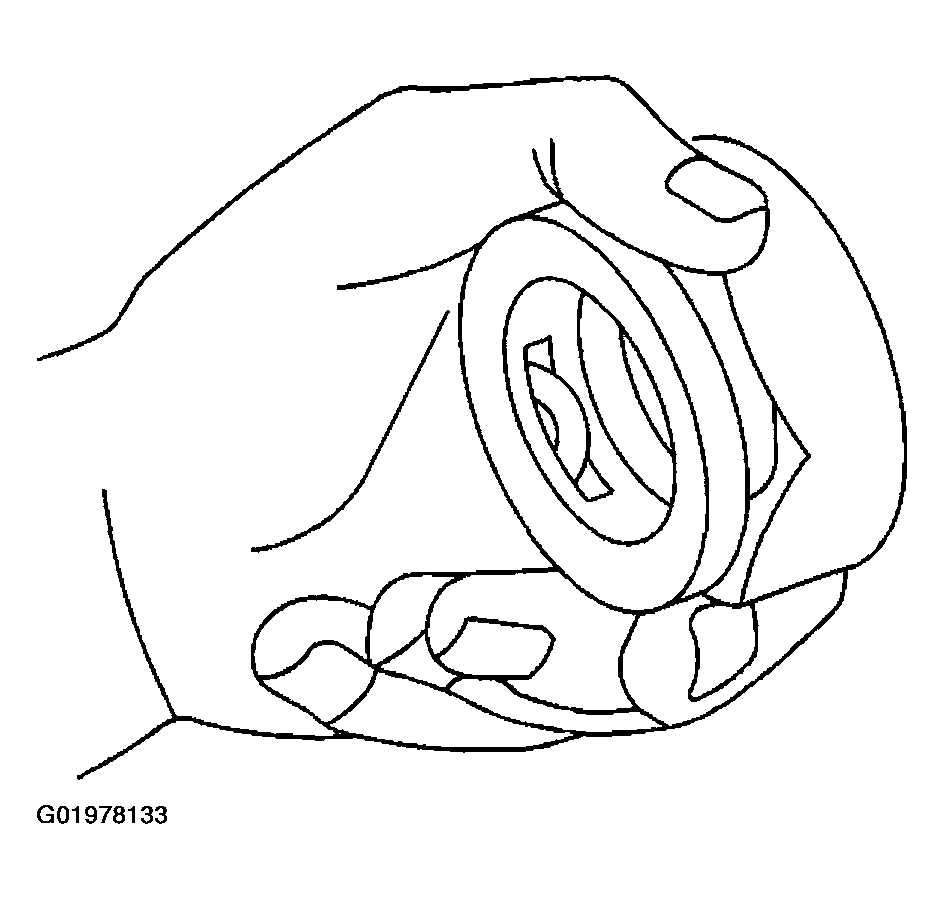

Fig 1: Installing New Retaining Ring (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Hook one of the open ends of the retaining ring in one of the slots in the quick connector.

Fig 2: Installing New Retaining Ring (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Rotate the retaining ring around the connector until the retaining ring is positioned with all 3 ears through the 3 slots.

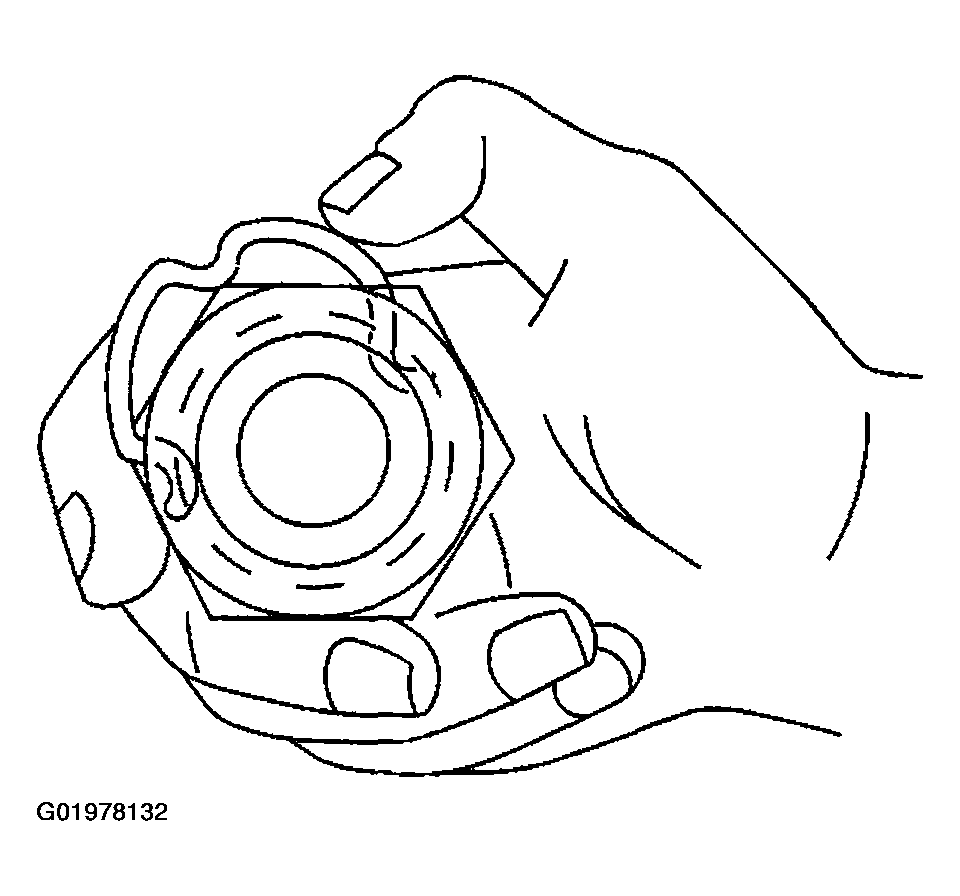

Fig 3: Rotating Retaining Ring Around Connector
Courtesy of GENERAL MOTORS CORP.
Ensure the 3 retaining ring ears can be seen from the inside of the connector and the retaining ring can move freely in the slots.

Fig 4: Inspecting Retaining Ring Fitting
Courtesy of GENERAL MOTORS CORP.
Install the engine oil cooler line into the quick connector fitting until a click is heard or felt.
Pull back on the engine oil cooler lines to ensure a proper connection.

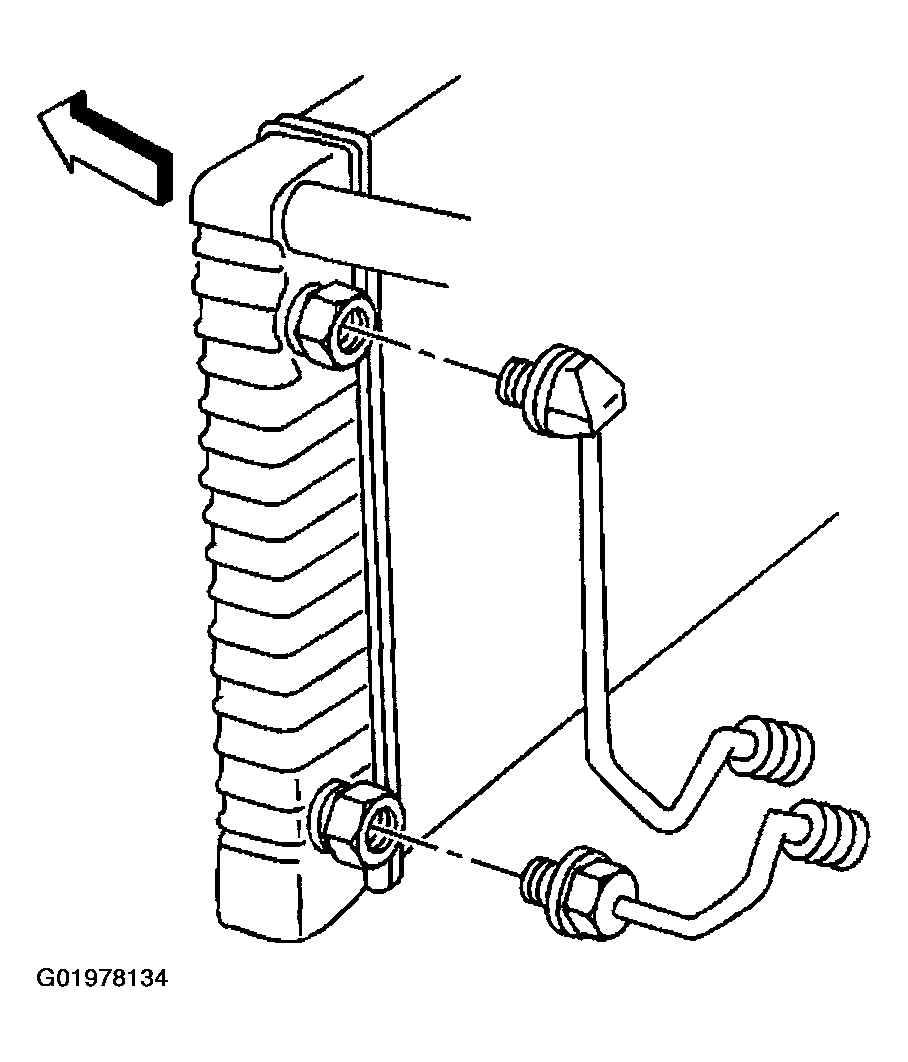

Fig 5: Installing Engine Oil Cooler Line Into Quick Connector
Courtesy of GENERAL MOTORS CORP.

Important: Do not manually depress the retaining clip when installing the plastic cap.
Snap the plastic cap onto the quick connect fitting.
Ensure that the plastic cap is fully seated against the fitting.
Inspect and fill the engine oil to the proper level.

Fig 6: Sectional View Of Quick Connect
Courtesy of GENERAL MOTORS CORP.
