Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the coolant recovery reservoir.

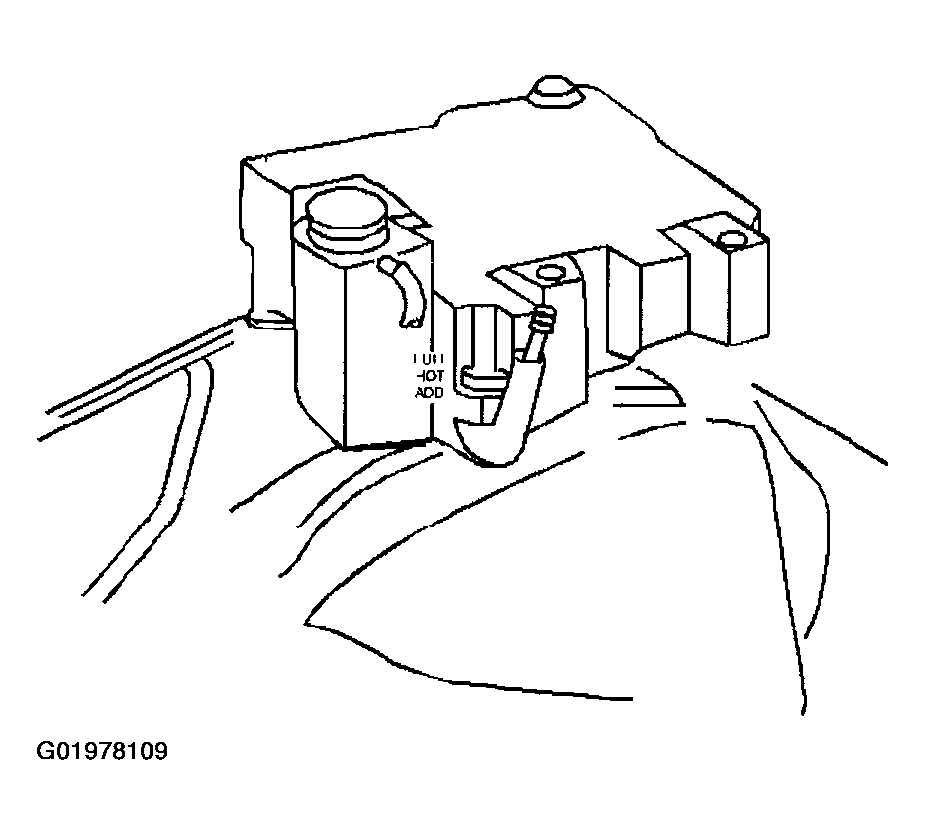

    Fig 1: Installing Coolant Recovery Reservoir
    G01978109Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Tighten the reservoir retaining nuts.

    Tighten

    Tighten the nuts to 8-11 N.m (6-8 lb ft).

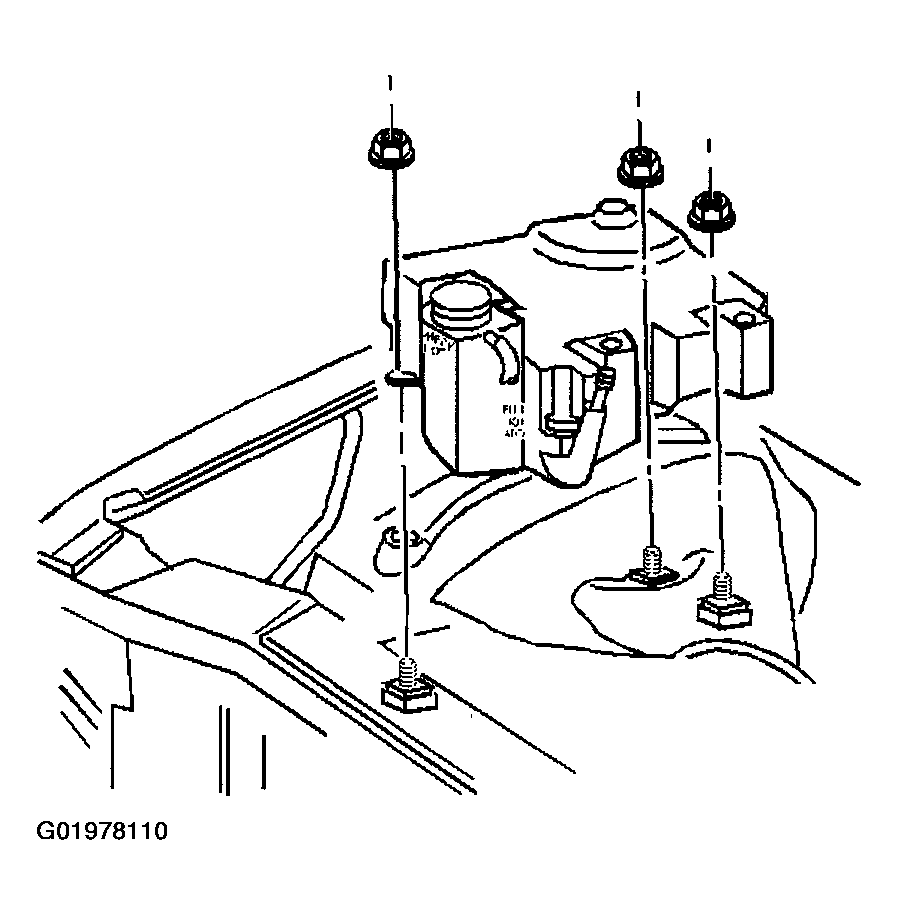

    Fig 2: Installing Coolant Recovery Reservoir Retaining Nut
    G01978110Courtesy of GENERAL MOTORS CORP.
  3. Install the hose to the coolant recovery reservoir.
  4. Using the J 38185  reposition the hose clamp.
  5. Install the PCM. Refer to POWERTRAIN CONTROL MODULE in Removal and Installation in Engine Performance.
  6. Add coolant to reservoir. Refer to DRAINING AND FILLING COOLING SYSTEM  .

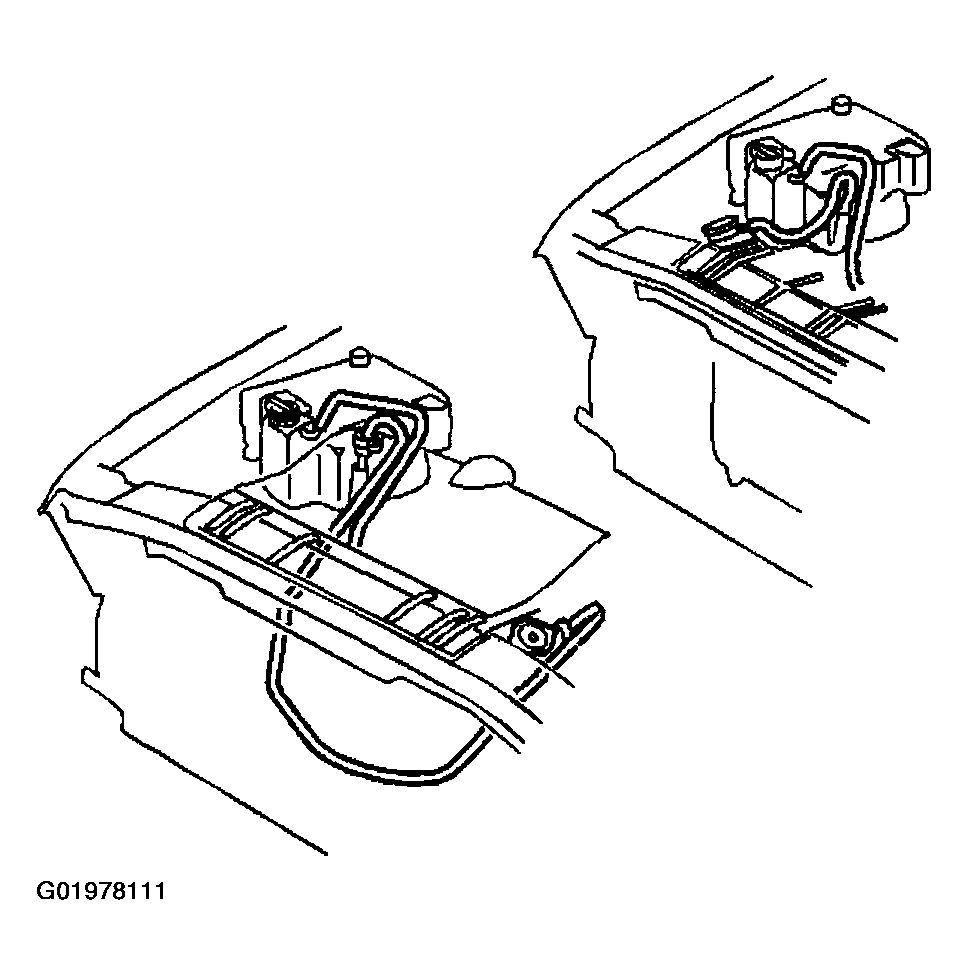

    Fig 3: Installing Coolant Recovery Reservoir
    G01978111Courtesy of GENERAL MOTORS CORP.
