Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent around the oil level indicator tube 13 mm (0.5 in) below the tube bead.
  2. Install the oil level indicator tube into the engine block. Rotate the oil level indicator tube into position.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the oil level indicator tube bolt.

    Tighten

    Tighten the oil level indicator tube bolt to 12 N.m (106 lb in).

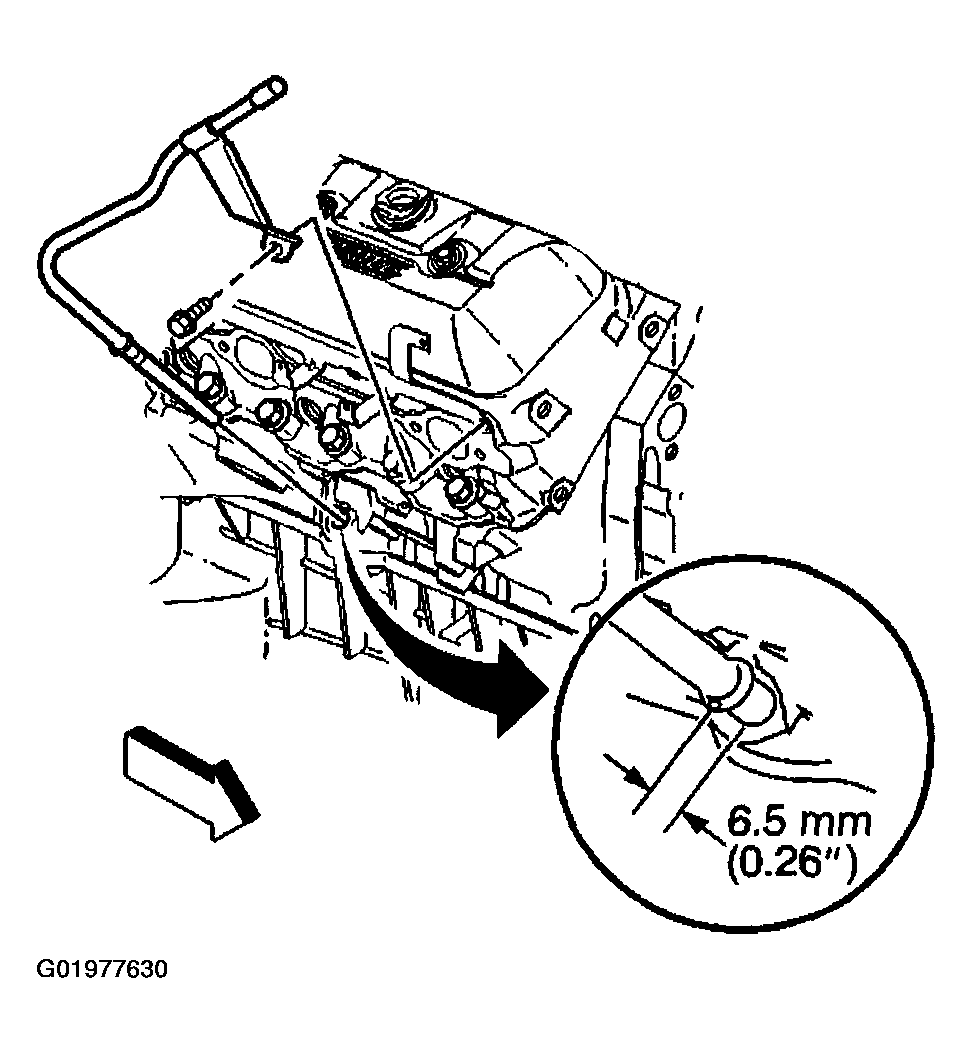

    Fig 1: Installing Oil Level Indicator Tube
    G01977630Courtesy of GENERAL MOTORS CORP.
  4. Install the right exhaust manifold. Refer to EXHAUST MANIFOLD REPLACEMENT - RIGHT in Engine Exhaust.
  5. Install the oil level indicator.

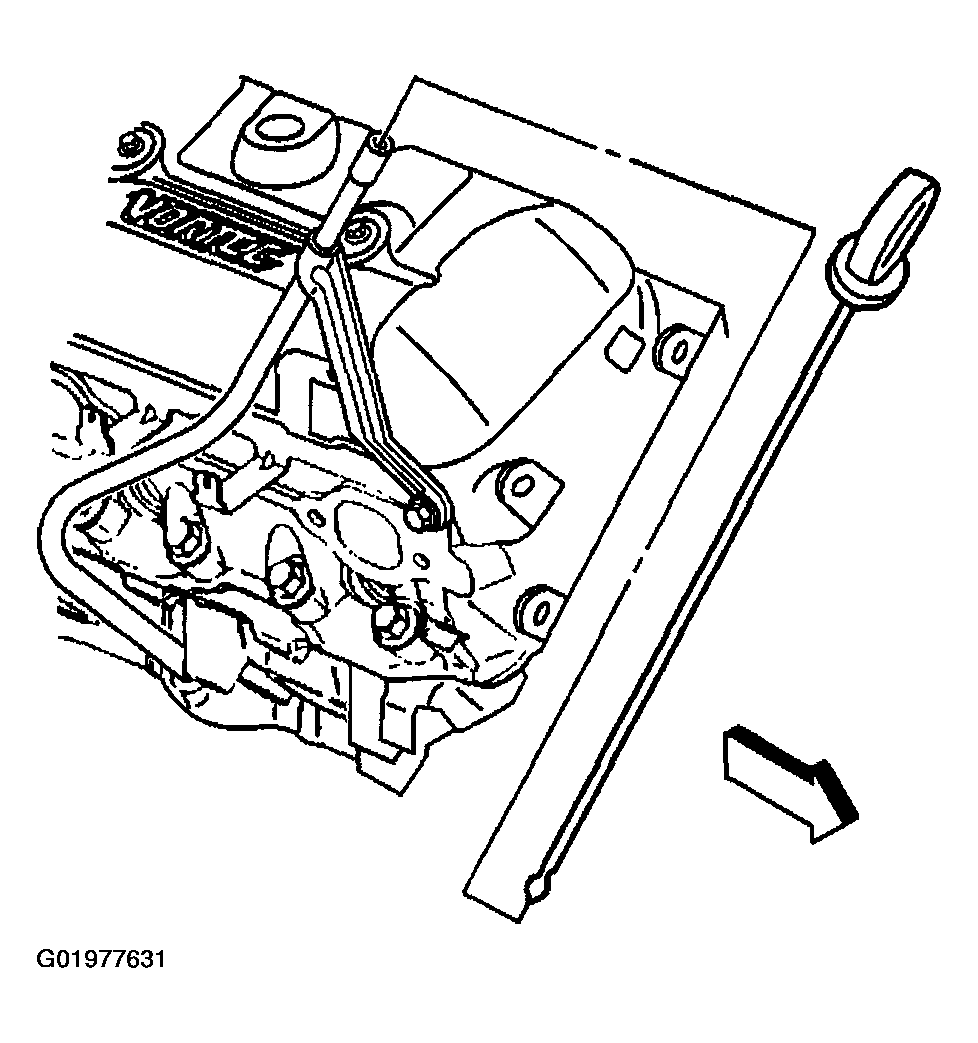

    Fig 2: Installing Oil Level Indicator
    G01977631Courtesy of GENERAL MOTORS CORP.
