Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Important: If replacing the engine flywheel (manual transmission), note the position and length of the original flywheel weights (if applicable). Flywheel weights of the same length must be installed into the new engine flywheel in the same location as the old flywheel weights were in the old engine flywheel.

Note the position of the flywheel weights and install the NEW flywheel weights as required.
A properly installed flywheel weight will be flush or slightly below flush with the face of the engine flywheel.

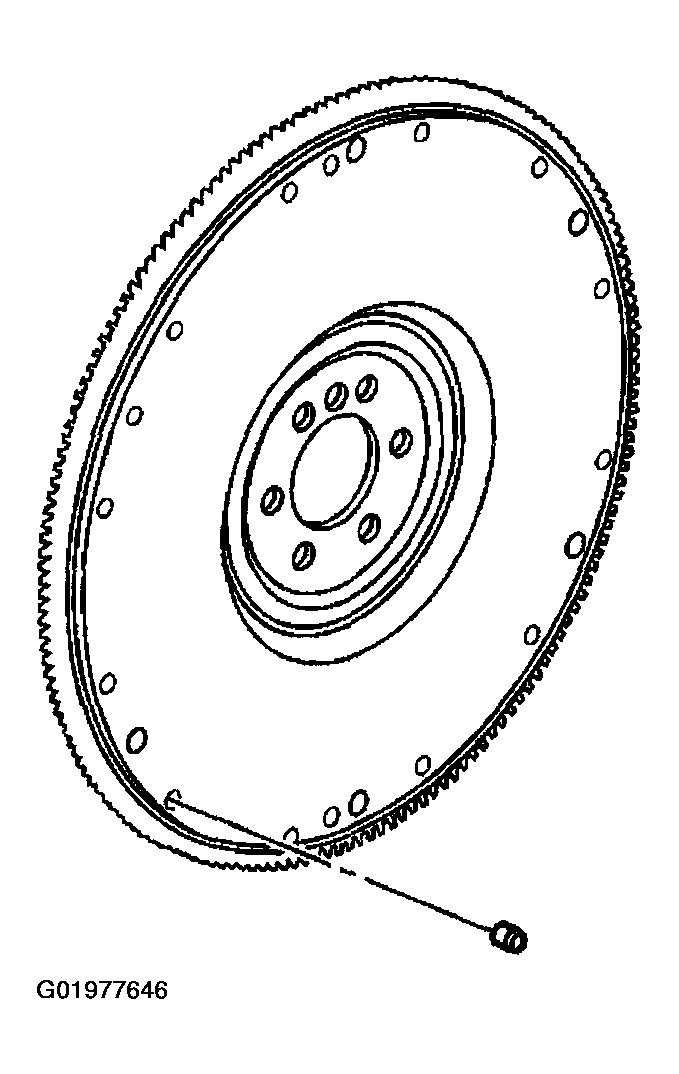

Fig 1: Locating Flywheel Weights
Courtesy of GENERAL MOTORS CORP.
Install the engine flywheel (1 or 2) to the crankshaft.
Align the engine flywheel locator hole to the flywheel locator pin.

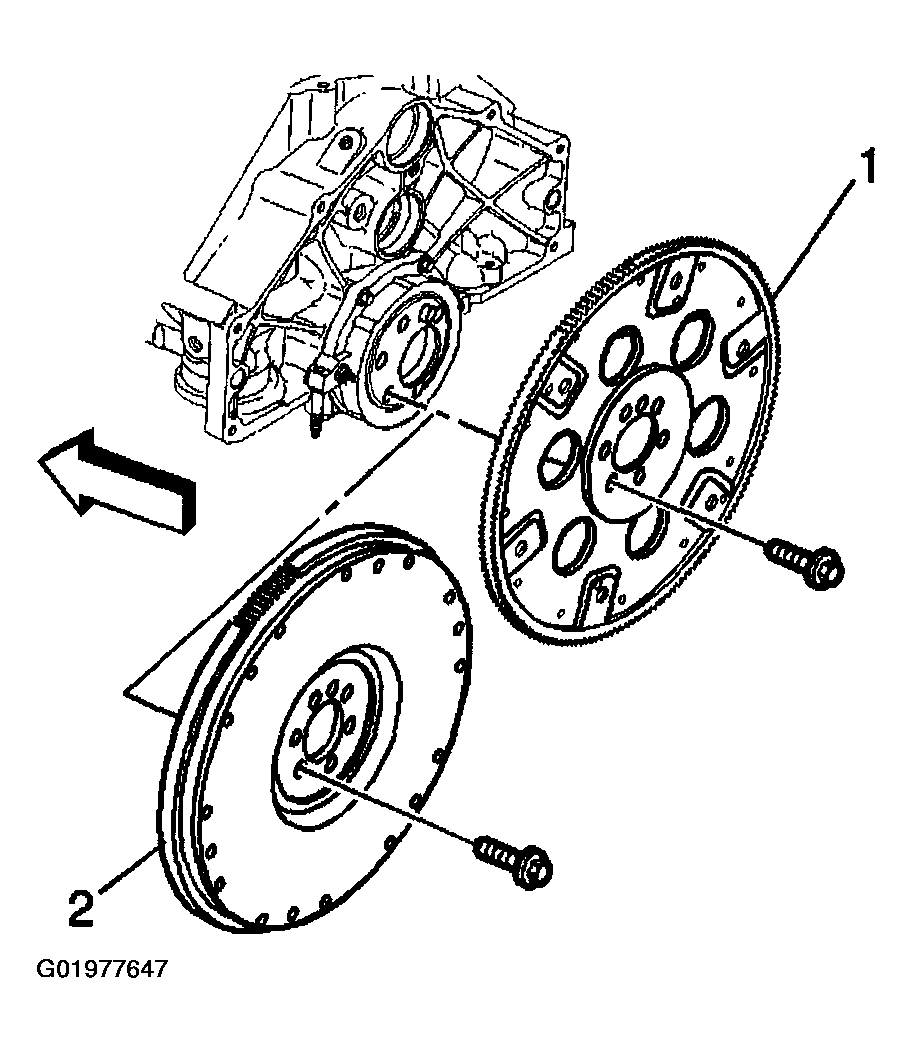

Fig 2: View of Automatic and Manual Engine Flywheels
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the engine flywheel bolts.
Tighten

Tighten the engine flywheel bolts in sequence to 100 N.m (74 lb ft).
Install the clutch assembly, if equipped. Refer to CLUTCH ASSEMBLY REPLACEMENT in Clutch.
Install the transmission.
- Refer to TRANSMISSION REPLACEMENT in Automatic Transmission - 4L60-E.
- Refer to TRANSMISSION REPLACEMENT in Manual Transmission - NV 3500.

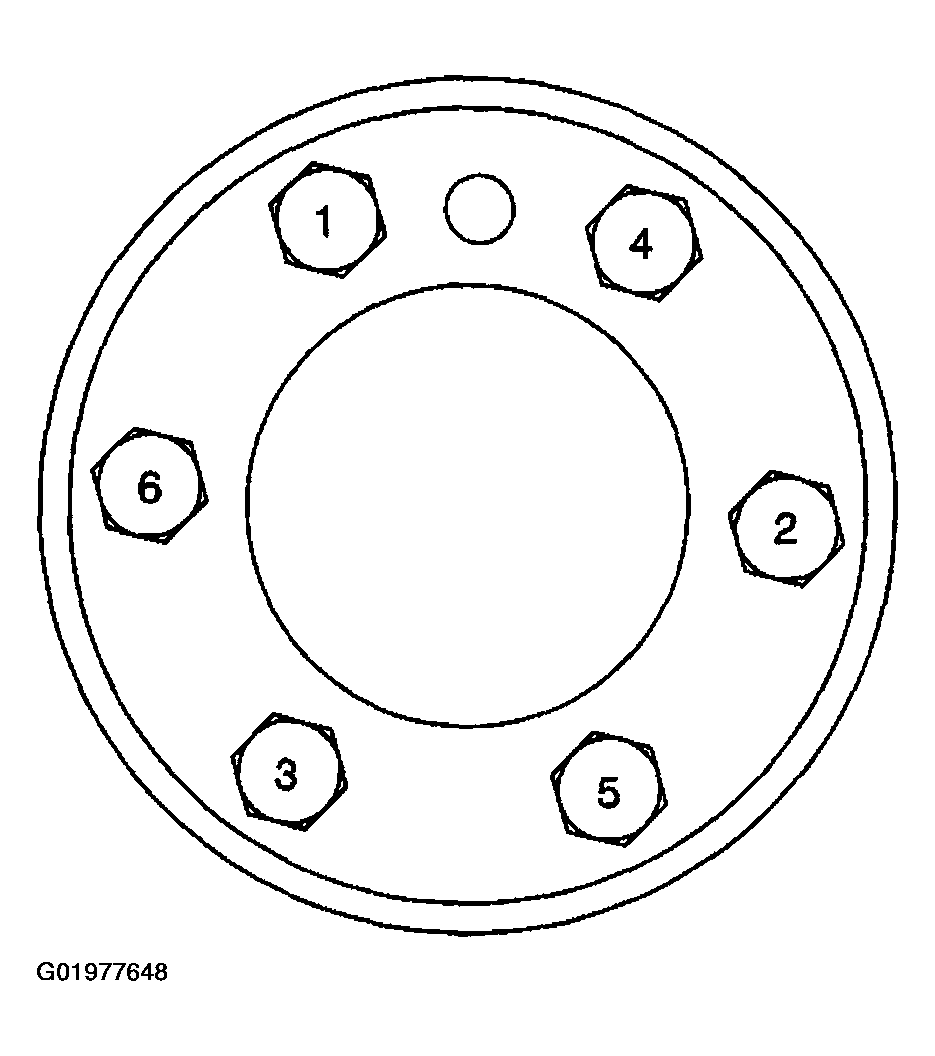

  Fig 3: Flywheel Bolt Tightening Sequence
  Courtesy of GENERAL MOTORS CORP.
