Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
  2. Drain the cooling. Refer to DRAINING AND FILLING COOLING SYSTEM in Engine Cooling.
  3. Remove the drive belt. Refer to Drive Belt Replacement  .
  4. Loosen the nut holding the power steering pump rear bracket to the side of the engine.
  5. Remove the nut holding the power steering pump rear bracket to the front of the engine.
  6. Remove the three bolts and the nut holding the power steering pump mounting bracket to the engine.
  7. With the power steering pump and the A/C compressor still attached, slide the power steering pump mount bracket off of the stud and set aside.

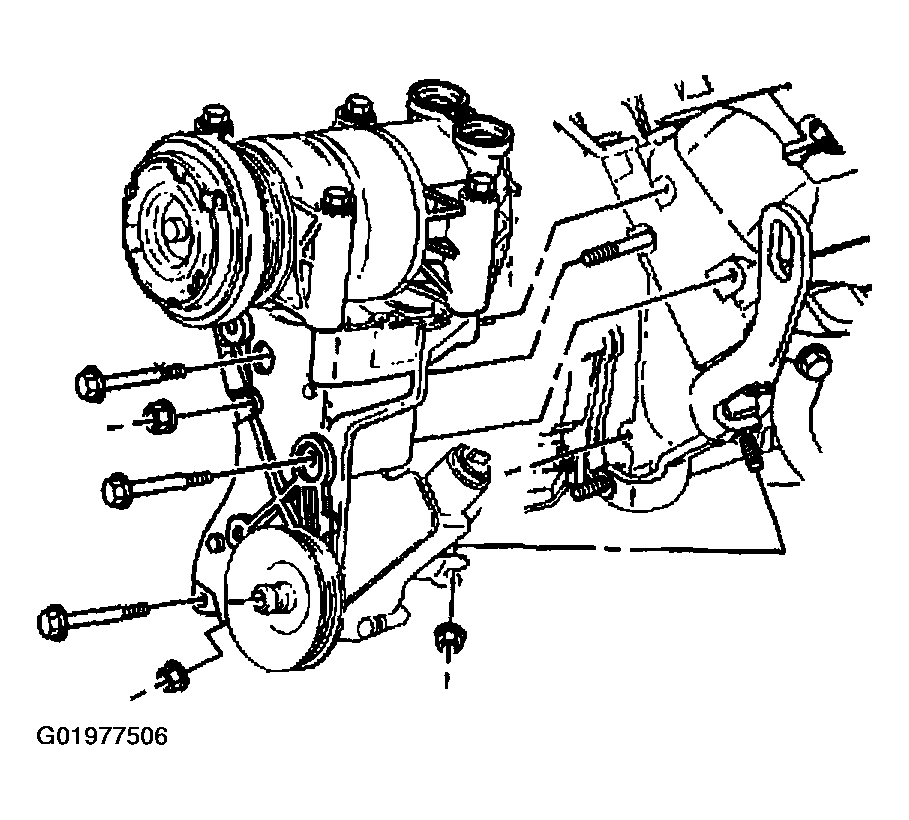

    Fig 1: Identifying Power Steering Pump Bolts
    G01977506Courtesy of GENERAL MOTORS CORP.
  8. Remove the power steering pump mounting bracket stud from the cylinder head.
  9. Remove the lower intake manifold. Refer to Intake Manifold Replacement - Lower  .
  10. Remove the exhaust manifold. Refer to EXHAUST MANIFOLD REPLACEMENT - LEFT in Engine Exhaust.

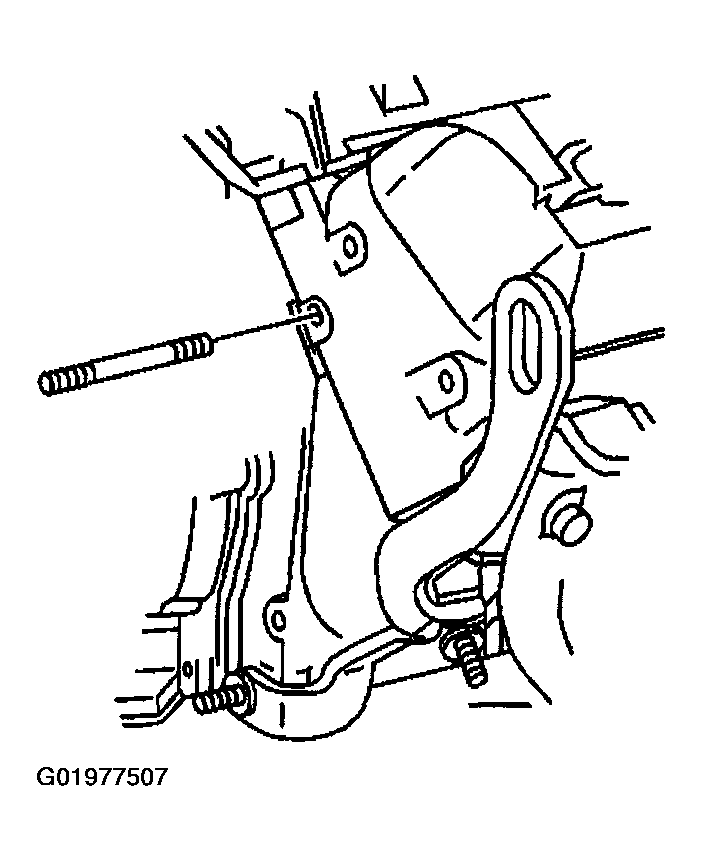

    Fig 2: Identifying Power Steering Pump Mounting Bracket Stud
    G01977507Courtesy of GENERAL MOTORS CORP.
  11. Remove the spark plug wire harness and the spark plug wire support.
  12. Remove the valve pushrods. Refer to Valve Rocker Arm and Push Rod Replacement  .

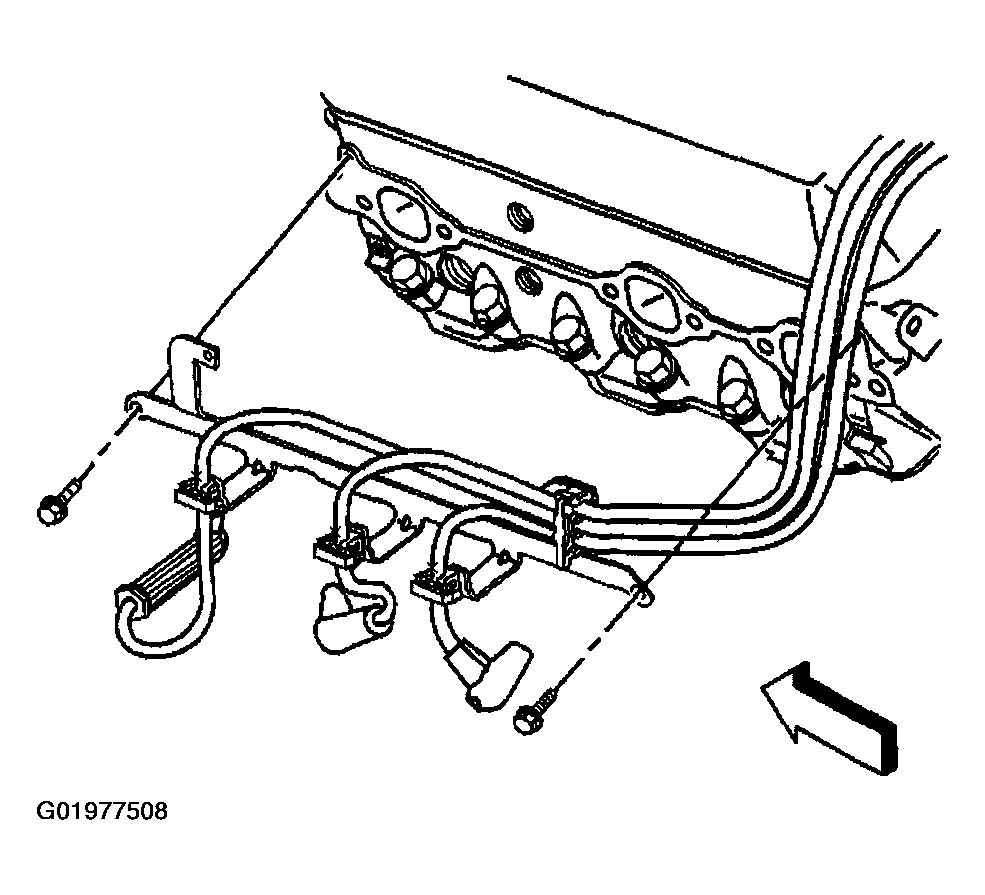

    Fig 3: Removing Spark Plug Wire Harness
    G01977508Courtesy of GENERAL MOTORS CORP.
  13. Remove the ground wire bolt and the ground wire from the rear of the cylinder head.
  14. Secure the ground wire out of the way.
  15. Remove the bolt holding the fuel pipe bracket to the rear of the cylinder head.

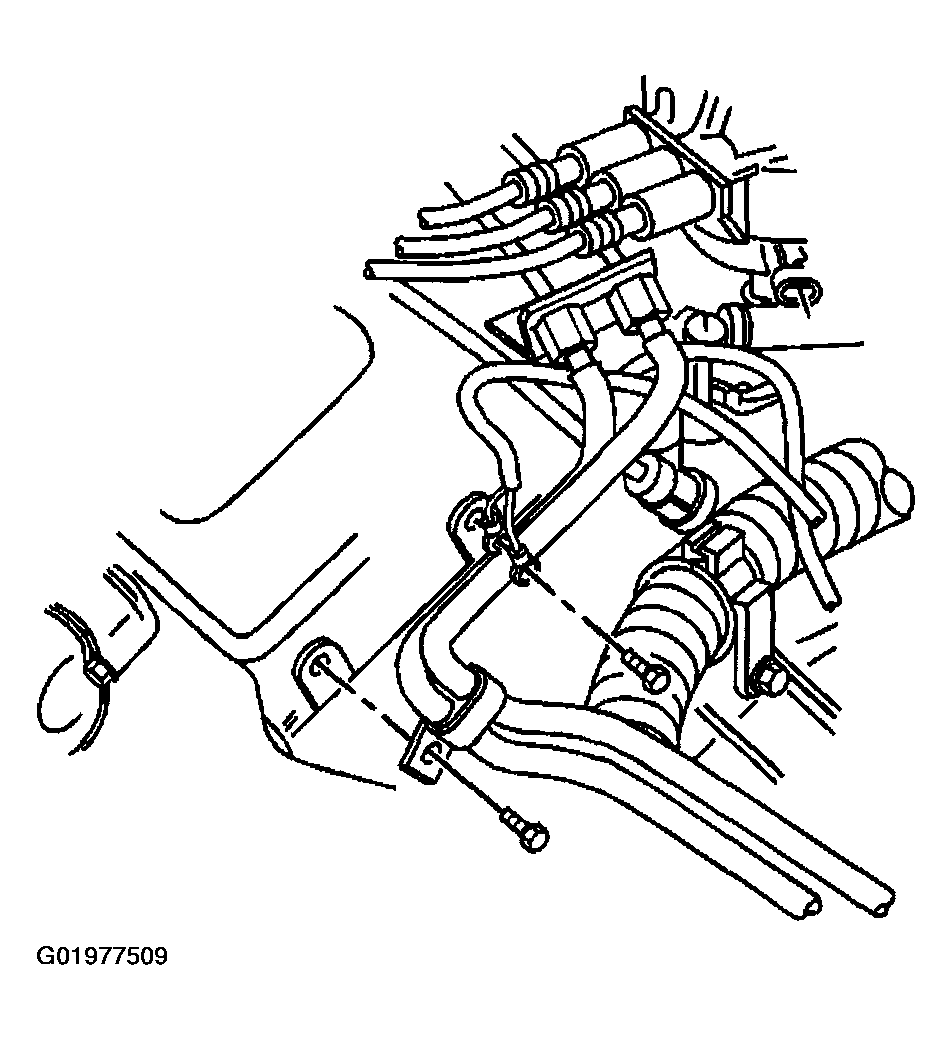

    Fig 4: Removing Fuel Pipe Bracket
    G01977509Courtesy of GENERAL MOTORS CORP.
  16. Remove the engine coolant temperature sensor.
  17. Remove the spark plugs. Refer to SPARK PLUGS in Service & Adjustment Specifications - 4.3L in Engine Performance.

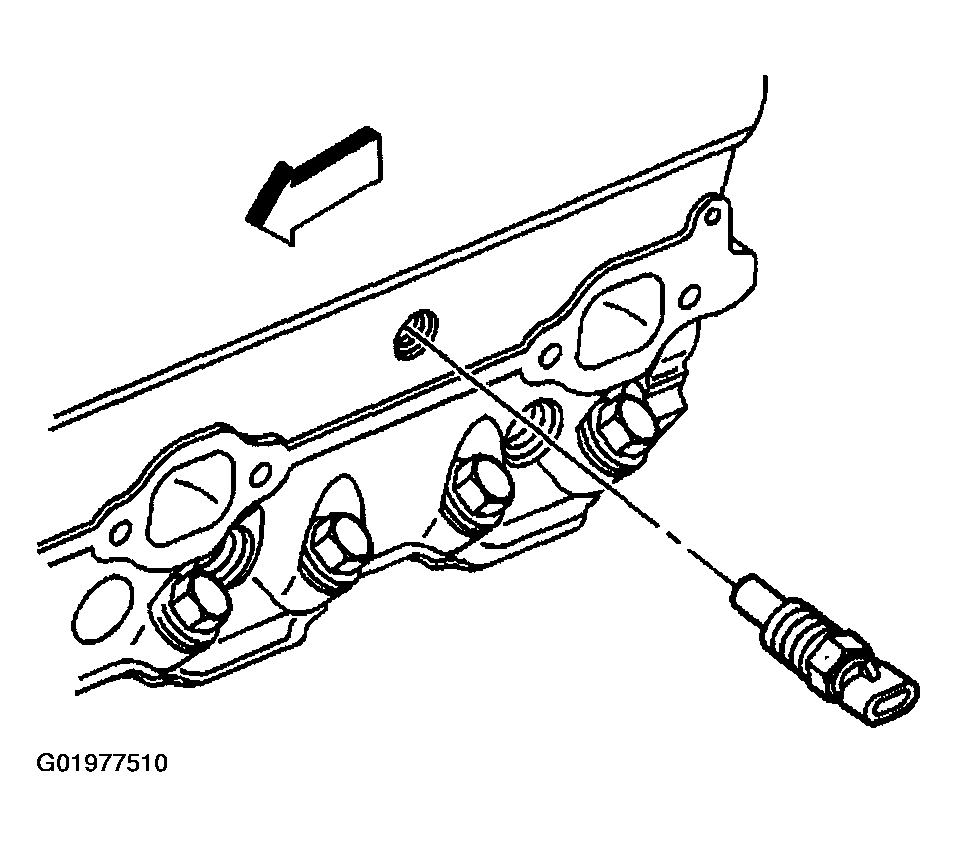

    Fig 5: Removing Engine Coolant Temperature Sensor
    G01977510Courtesy of GENERAL MOTORS CORP.
  18. Remove the cylinder head bolts.

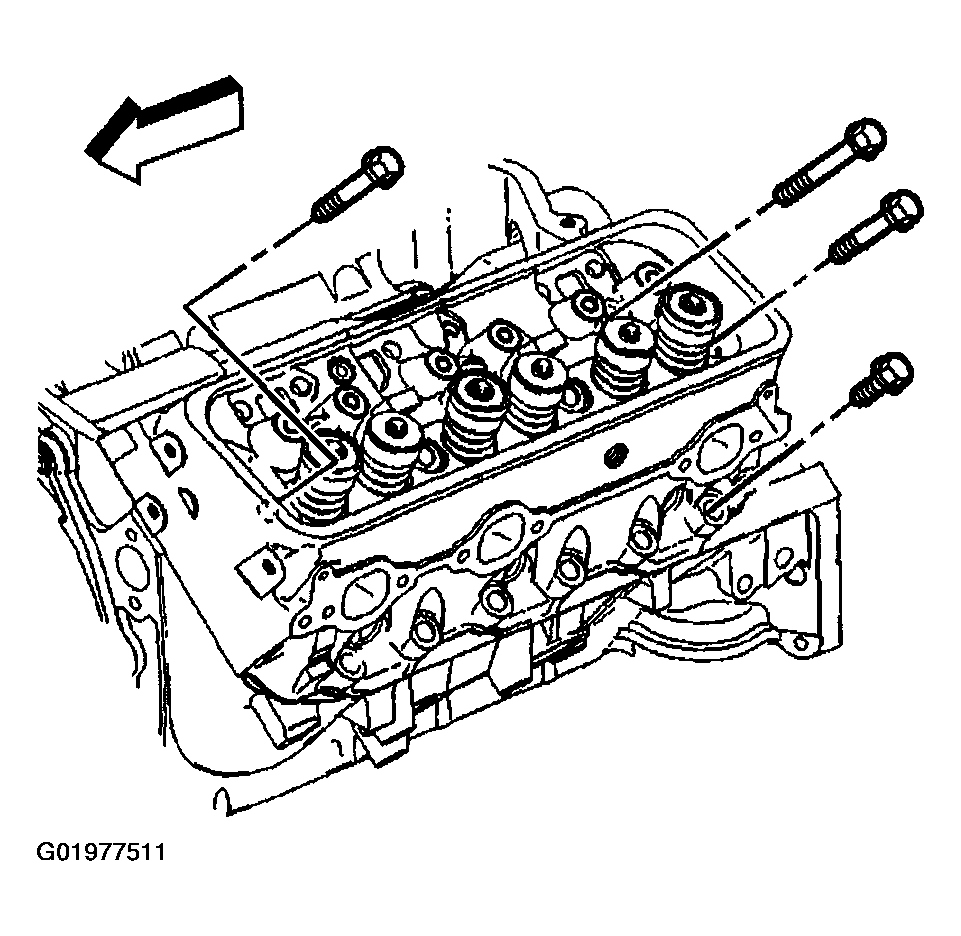

    Fig 6: Removing Cylinder Head Bolts
    G01977511Courtesy of GENERAL MOTORS CORP.
    NOTE: After removal, place the cylinder head on two wood blocks to prevent damage.
  19. Remove the cylinder head.

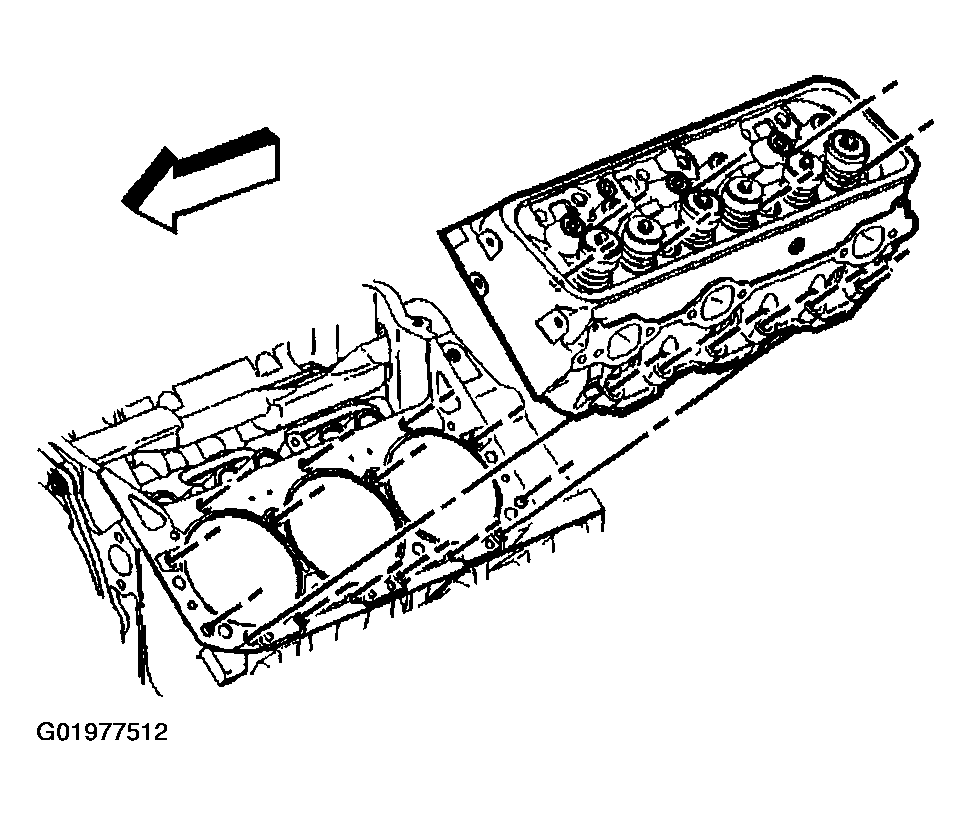

    Fig 7: Removing Cylinder Head
    G01977512Courtesy of GENERAL MOTORS CORP.
  20. Remove and discard the cylinder head gasket.

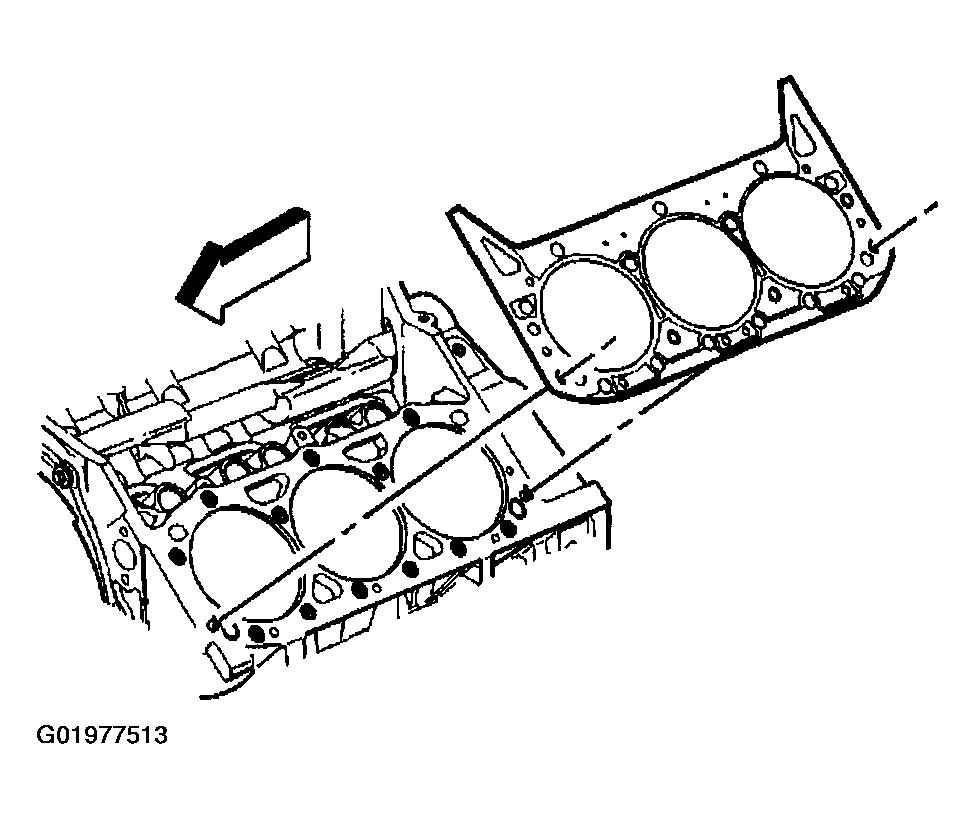

    Fig 8: Identifying Cylinder Head Gasket
    G01977513Courtesy of GENERAL MOTORS CORP.

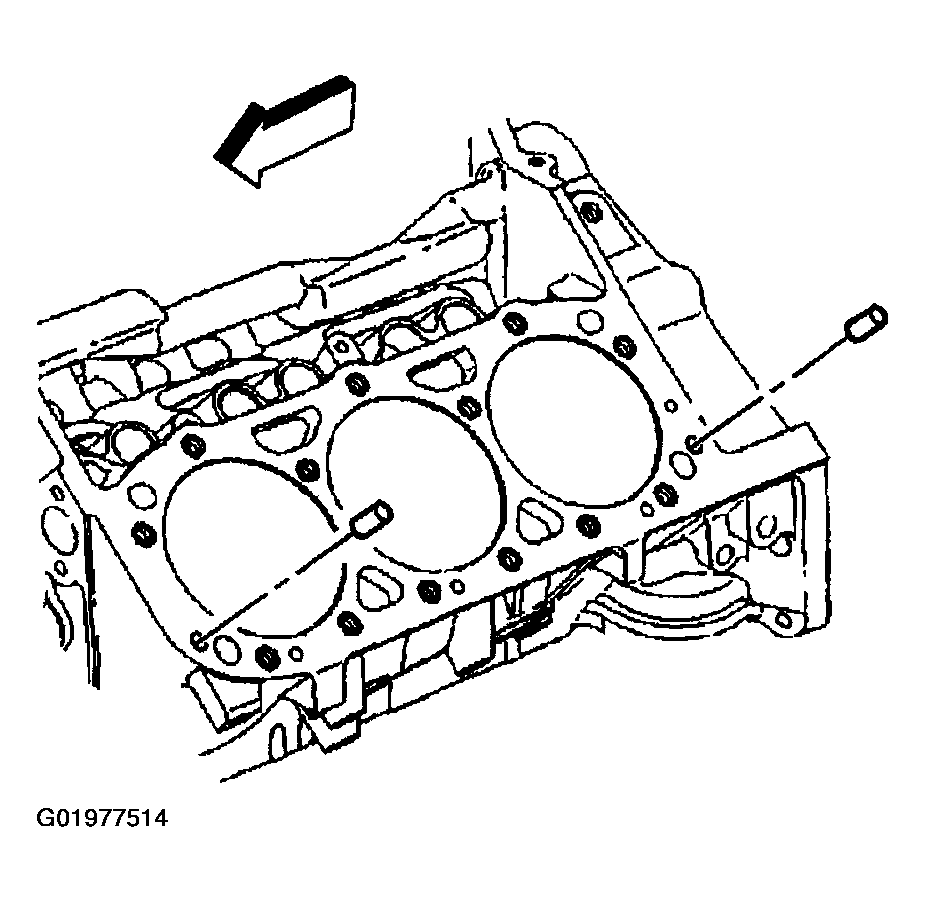

  21. Remove the dowel pins (cylinder head locator) (if required).
  22. Clean the engine block and the cylinder head sealing surfaces.
    NOTE: Clean all dirt, debris, and coolant from the engine block cylinder head bolt holes. Failure to remove all foreign material may result in damaged threads, improperly tightened fasteners or damage to components.
  23. Clean the cylinder head bolts and the engine block bolt holes.
  24. For further service to the cylinder head refer to the following:
