Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Important: When installing a NEW crankshaft rear oil seal housing the crankshaft rear oil seal will come with the housing. If reusing the housing and then installing a NEW seal follow the instructions for installing the housing and than refer to Crankshaft Rear Oil Seal Replacement to install the seal.

Install a NEW crankshaft rear oil seal housing gasket.

Fig 1: Installing Crankshaft Rear Oil Seal Housing Gasket
Courtesy of GENERAL MOTORS CORP.
Install the NEW crankshaft rear oil seal housing with the oil seal to the engine block using the following procedure.
Important: Do not oil or grease the seal lip or the crankshaft seal area.
1. 2.1. Leave the sleeve in the crankshaft rear oil seal and use the sleeve as a guide to ease the seal lip over the end of the crankshaft.
2. 2.2. Push the crankshaft rear oil seal housing fully onto the crankshaft until the crankshaft rear oil seal housing is against the crankshaft rear oil seal gasket and the engine.
3. 2.3. Remove the sleeve.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the bolts and the nut to the crankshaft rear oil seal housing.
Tighten

Tighten the crankshaft rear oil seal housing bolts and nut to 12 N.m (106 lb in).
Install the engine flywheel. Refer to Engine Flywheel Replacement .
Install the oil pan. Refer to Oil Pan Replacement .

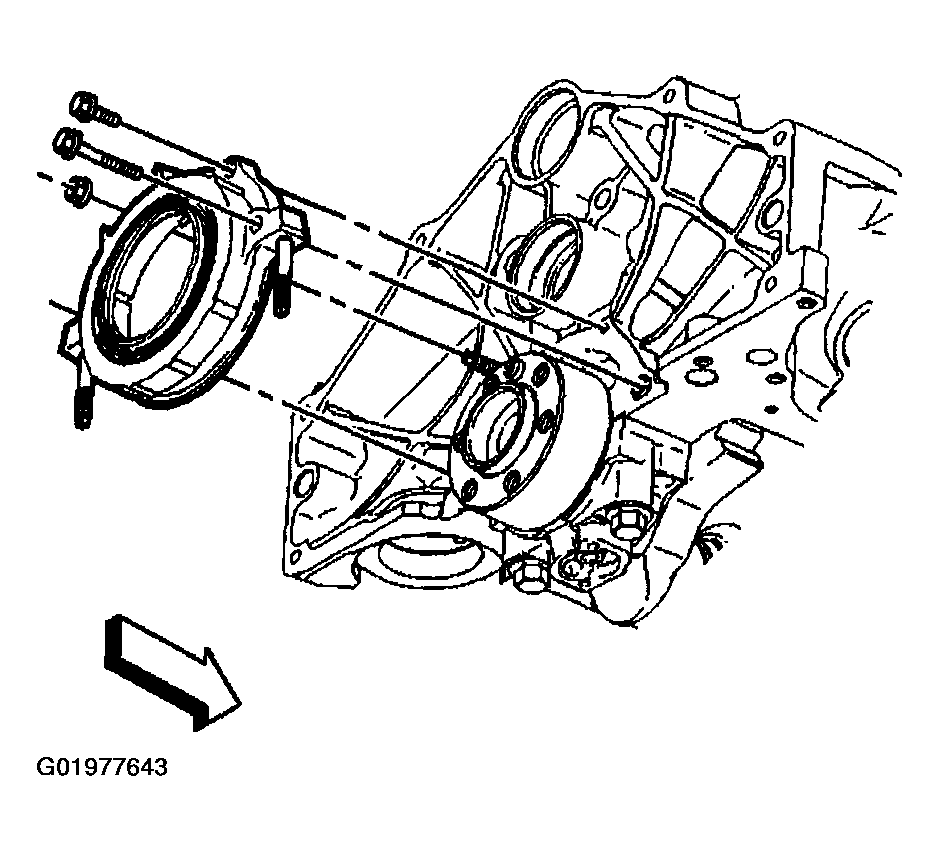

Fig 2: Installing Crankshaft Rear Oil Seal Housing
Courtesy of GENERAL MOTORS CORP.
