Valve Lifter Installation

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Apply lubricant GM P/N 12345501 (Canadian P/N 992704) or equivalent, to the valve lifter rollers.
Important: If reusing the valve lifters, install the valve lifters in the original positions.
Install the valve lifters.

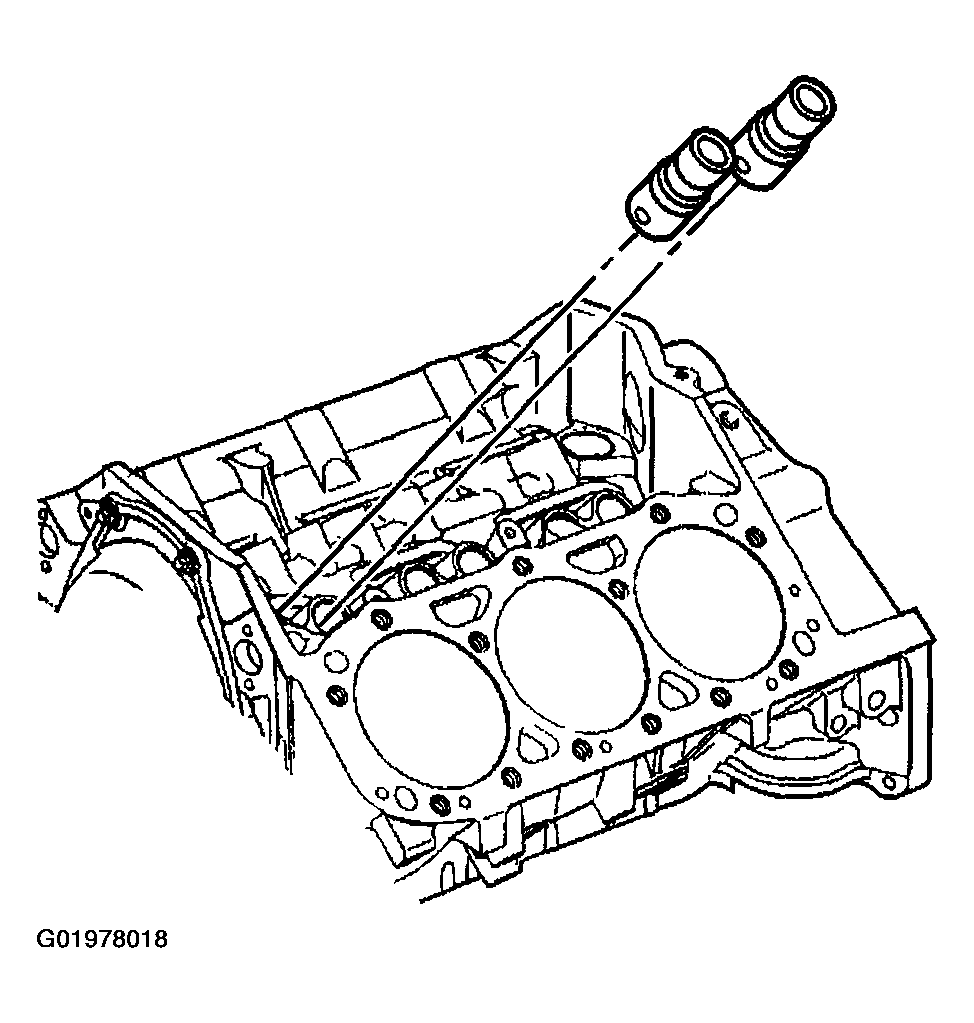

Fig 1: Installing Valve Lifters
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the valve lifter pushrod guides.
Tighten

Tighten the valve lifter pushrod guide bolts to 16 N.m (12 lb ft).

Fig 2: Installing Valve Lifter Pushrod Guides
Courtesy of GENERAL MOTORS CORP.
