Piston and Connecting Rod Disassemble

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 24086-C Piston Pin Remover/Installer

CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.

Remove the piston rings from the pistons.

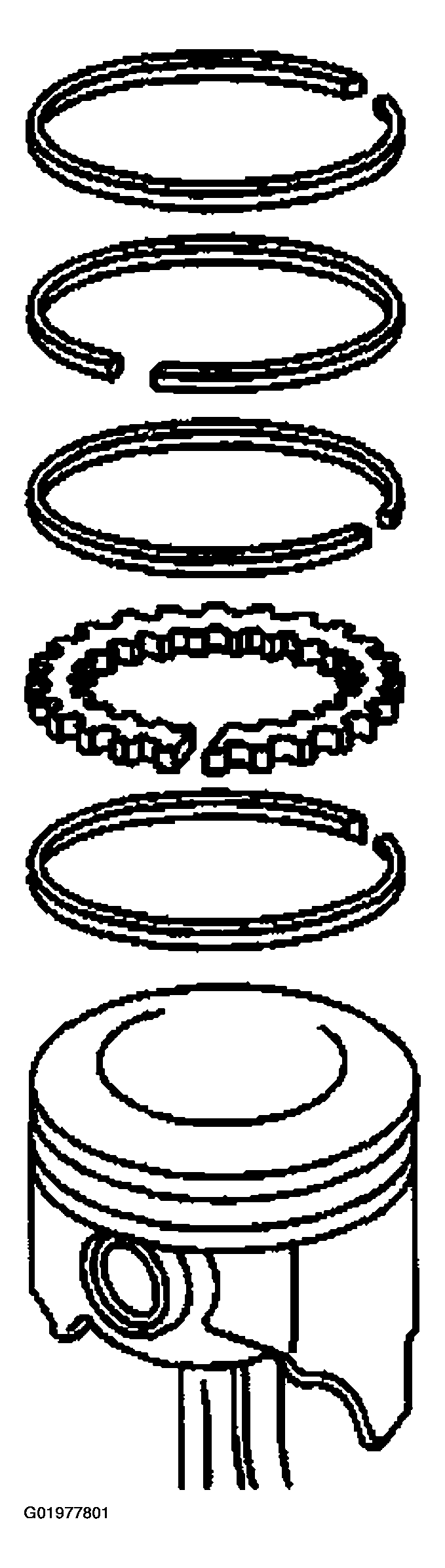

Fig 1: Removing Piston Rings
Courtesy of GENERAL MOTORS CORP.
Press the piston pin from the connecting rod using the J 24086-C
The piston pin has an interference fit into the connecting rod, and is full floating in the piston.

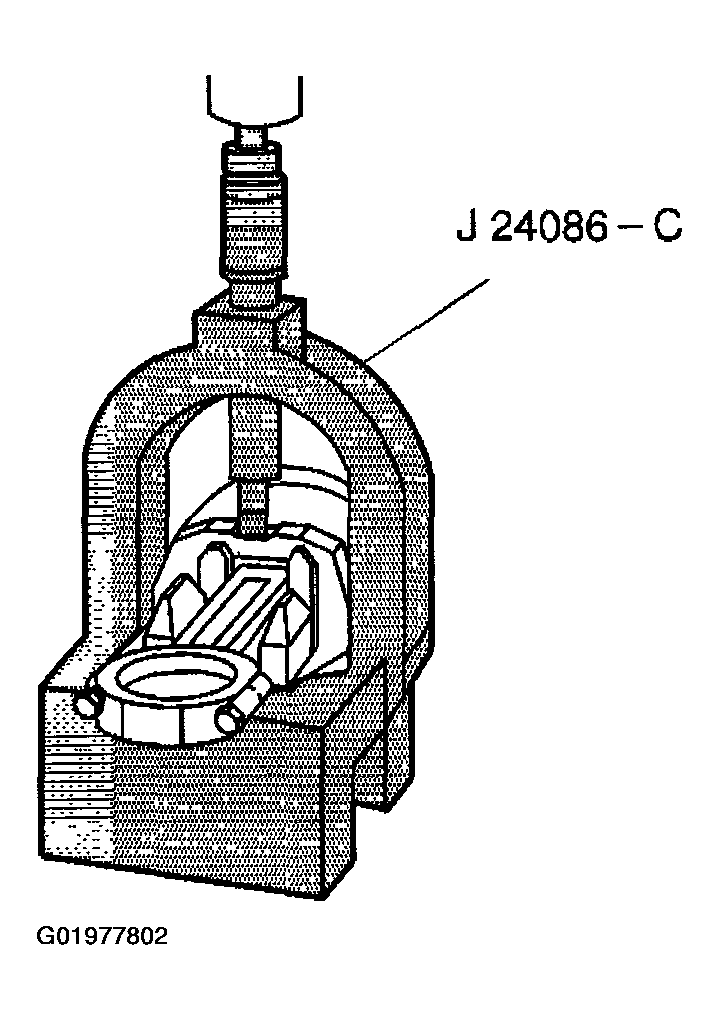

Fig 2: Using J 24086-C
Courtesy of GENERAL MOTORS CORP.
Mark, separate, and organize the parts for assembly.

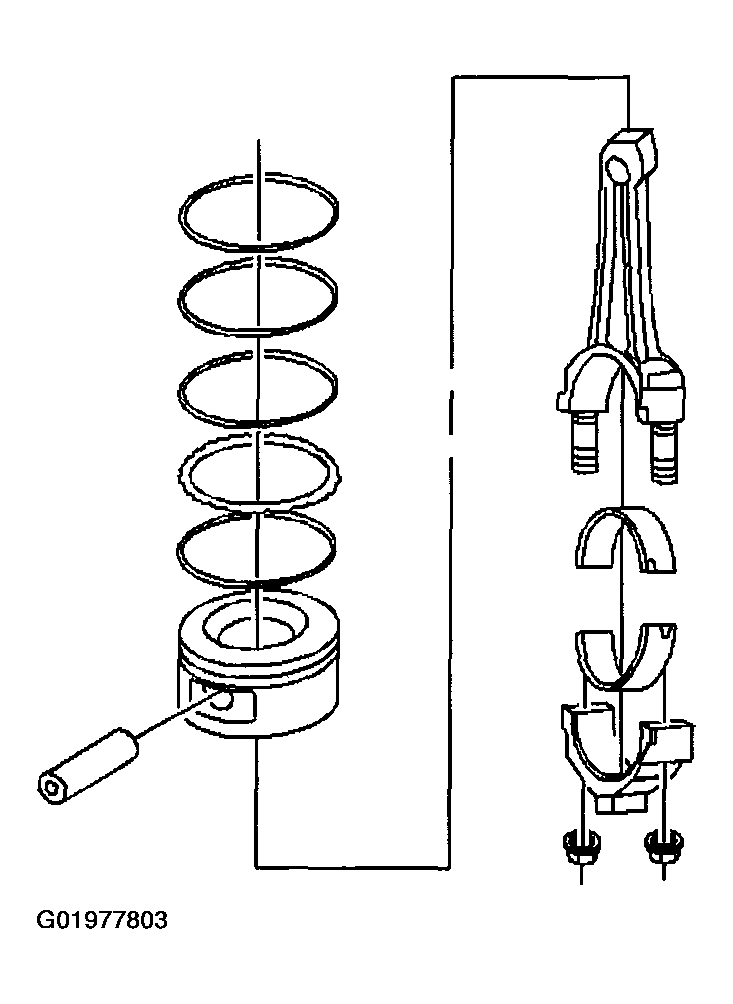

Fig 3: Disassembled View of Piston and Connecting Rod
Courtesy of GENERAL MOTORS CORP.
