Oil Pump Installation

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect for properly installed oil pump locator pins.

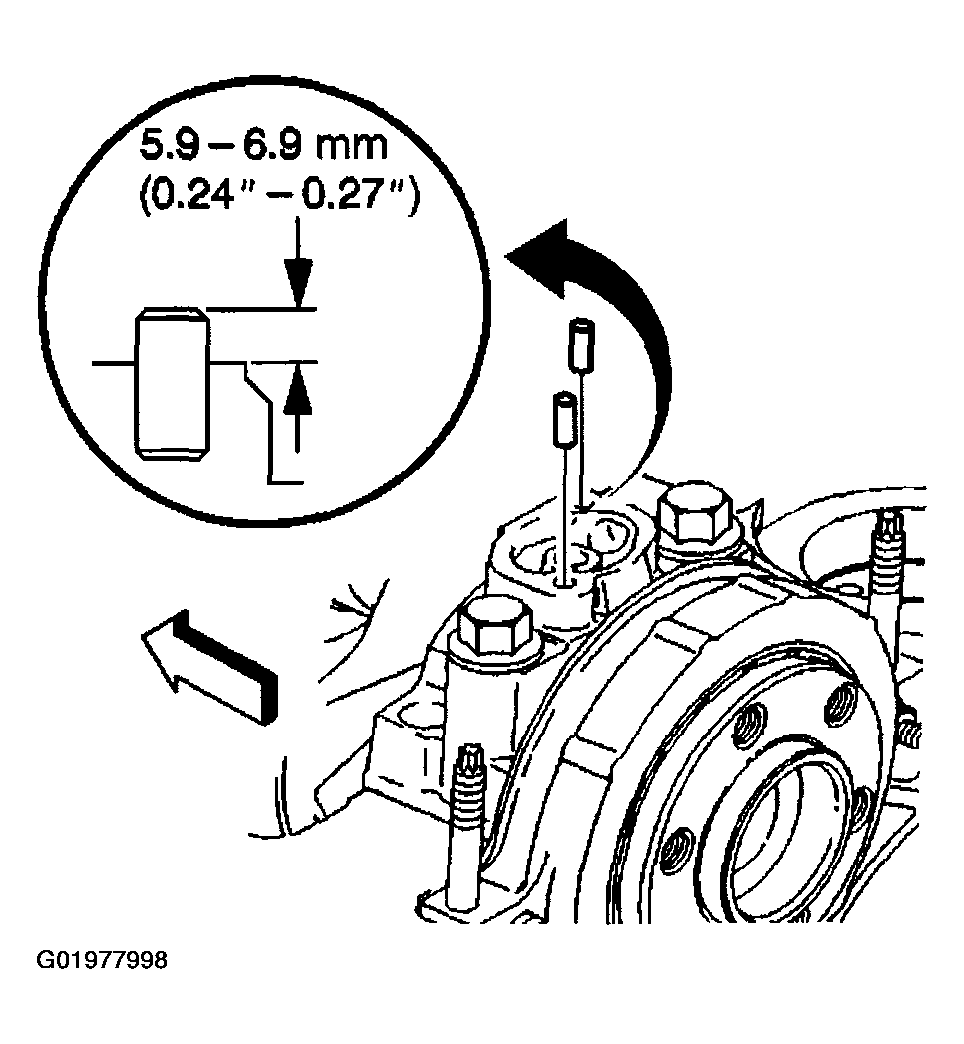

    Fig 1: View of Oil Pump Locator Pins
    G01977998Courtesy of GENERAL MOTORS CORP.

    Important:  Do not reuse the oil pump driveshaft retainer.

    During assembly, install a NEW oil pump driveshaft retainer.

  2. Install the oil pump.
  3. Position the oil pump onto the pins.

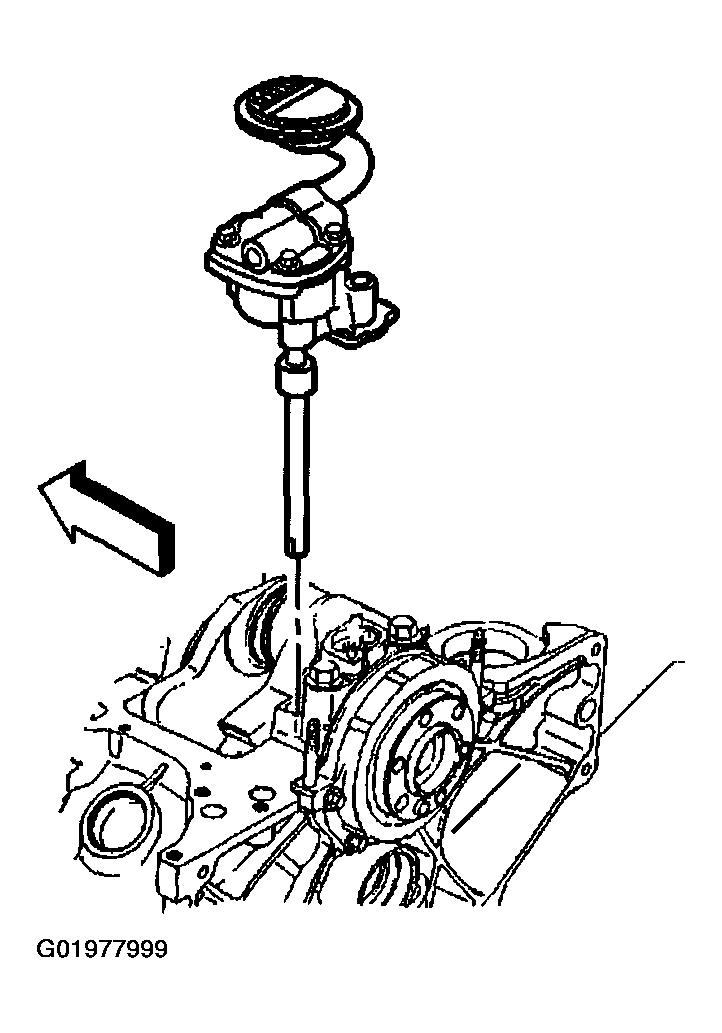

    Fig 2: Installing Oil Pump
    G01977999Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the oil pump bolt attaching the oil pump to the rear crankshaft bearing cap.

    Tighten

    Tighten the oil pump bolt to 90 N.m (66 lb ft).

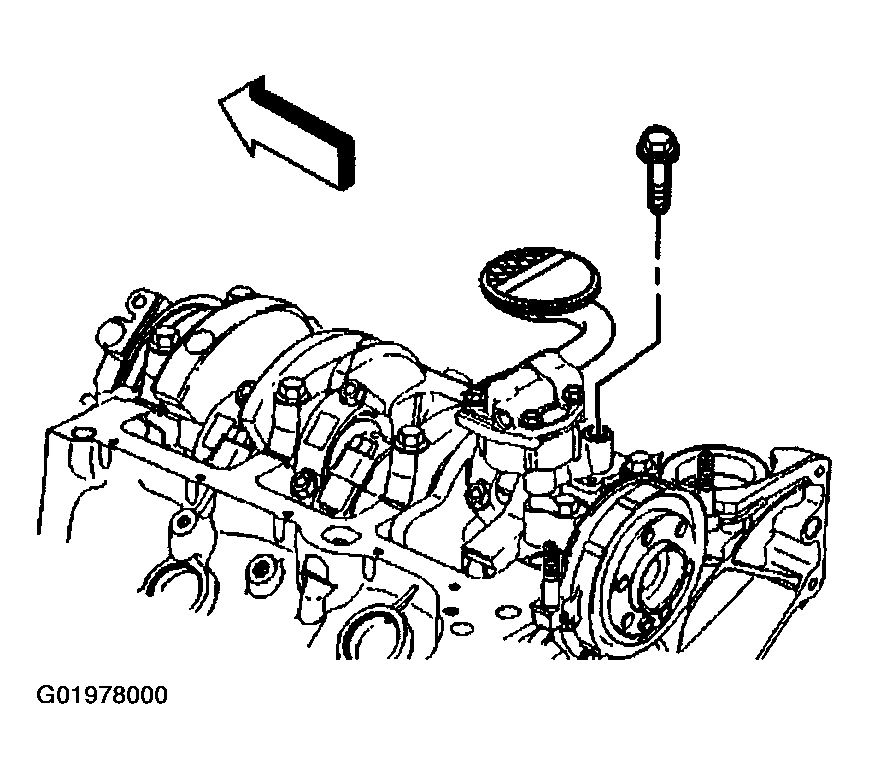

    Fig 3: Installing Oil Pump Bolt
    G01978000Courtesy of GENERAL MOTORS CORP.
