Oil Pan Removal

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove and discard the engine oil level sensor, if applicable.

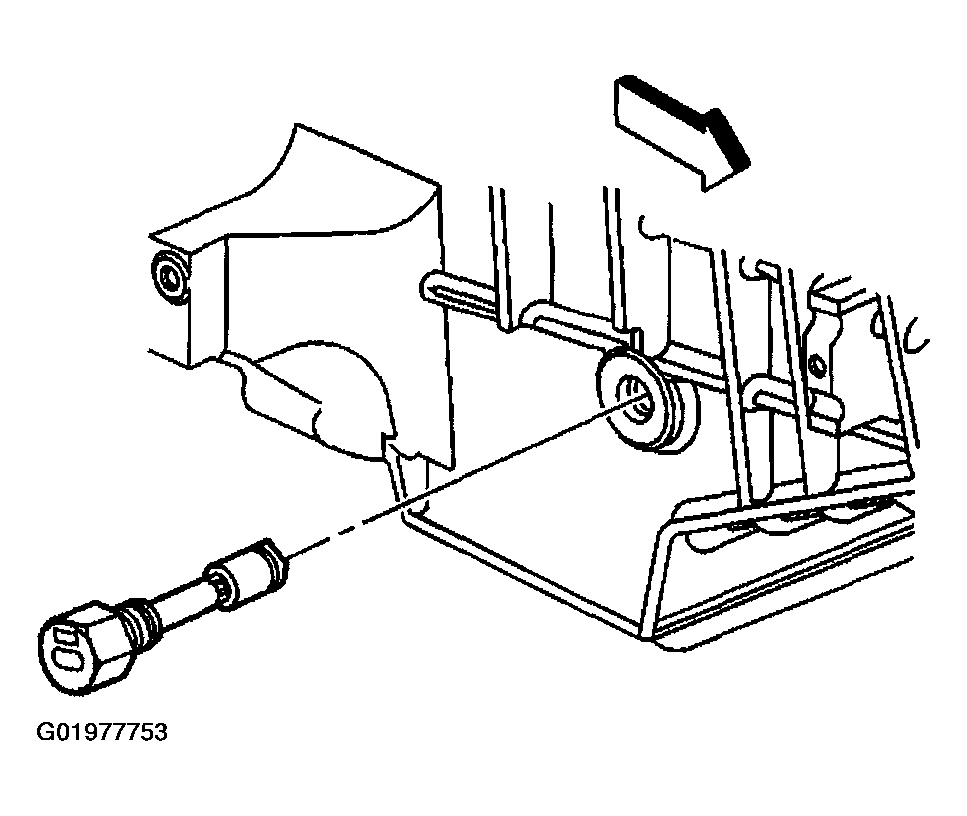

    Fig 1: Removing Engine Oil Level Sensor
    G01977753Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil pan bolts and nuts.

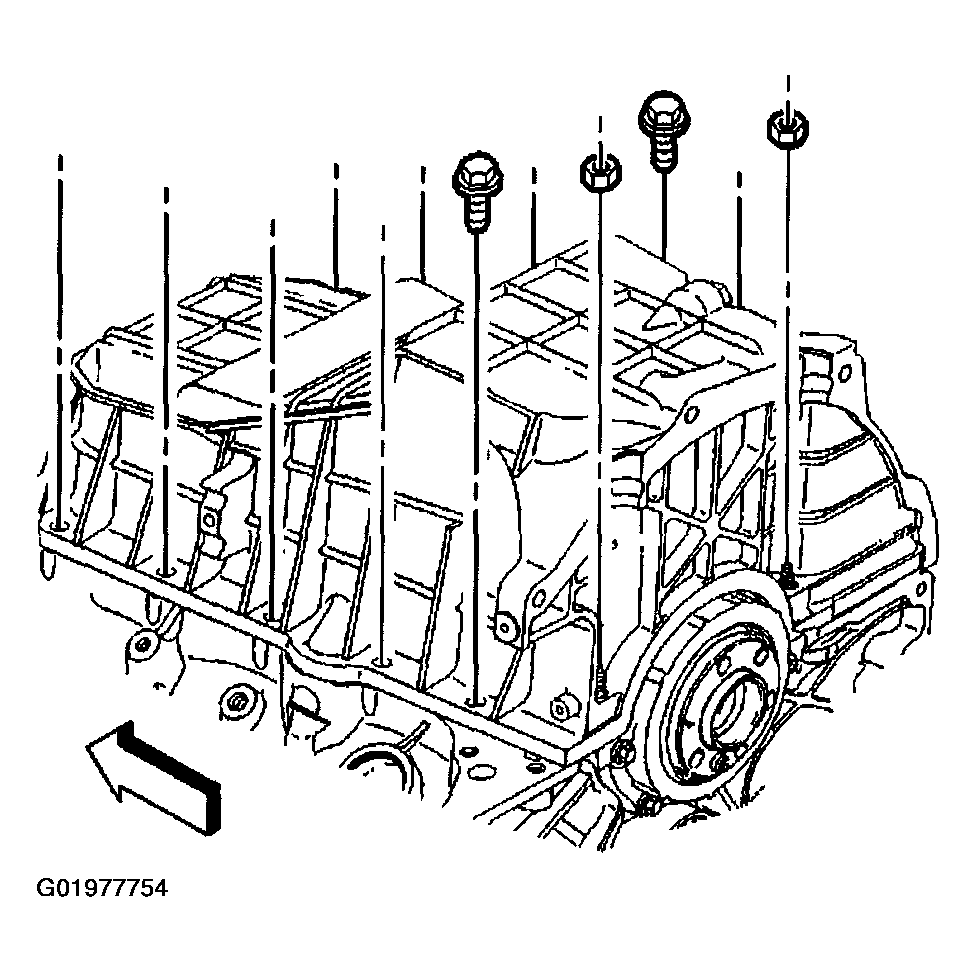

    Fig 2: Identifying Oil Pan Bolts & Nuts
    G01977754Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil pan.

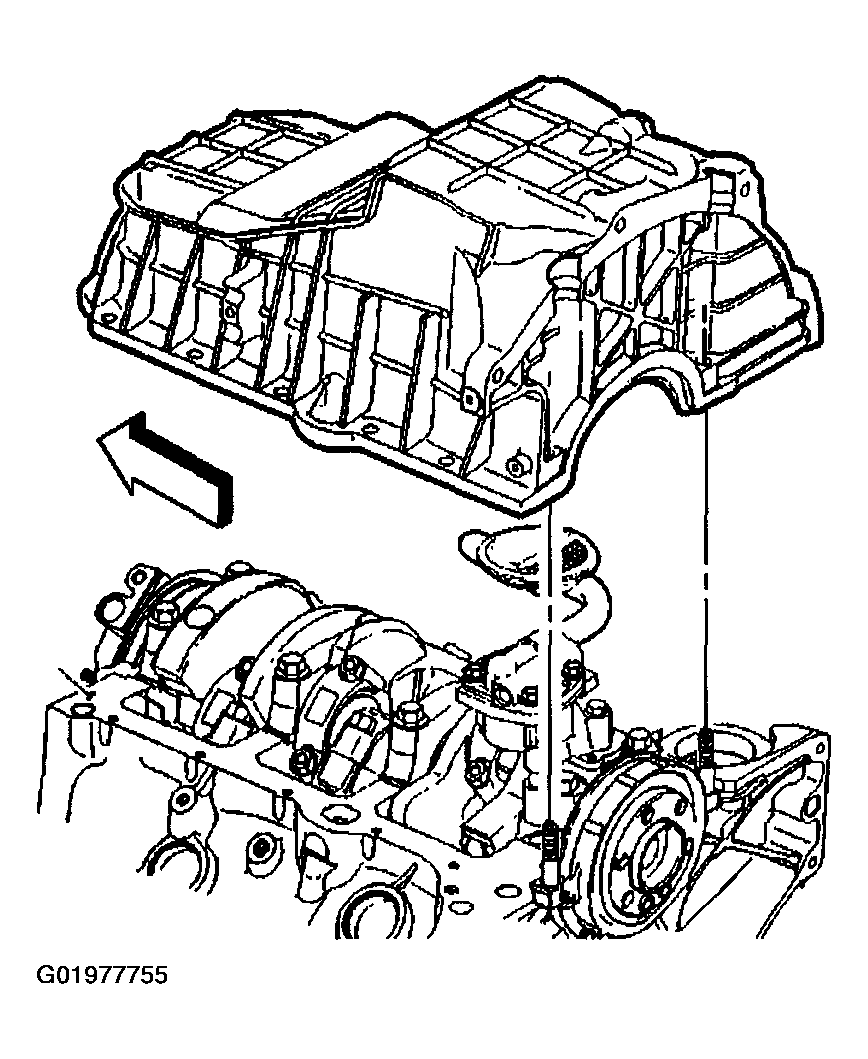

    Fig 3: Removing Oil Pan
    G01977755Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil pan gasket.
  5. Discard the oil pan gasket.

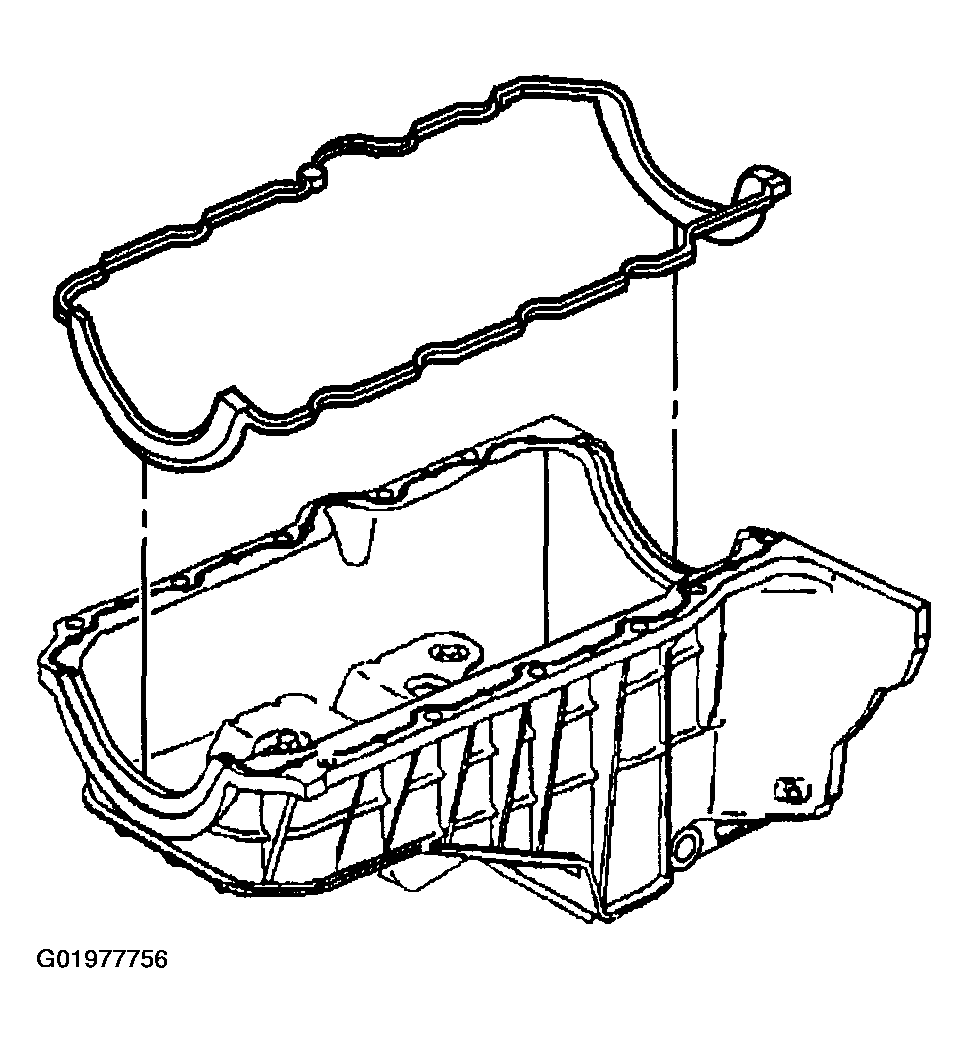

    Fig 4: Removing Oil Pan Gasket
    G01977756Courtesy of GENERAL MOTORS CORP.
