Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent, around the oil level indicator tube 13 mm (0.5 in) below the tube bead.
  2. Install the oil level indicator tube into the engine block. Rotate the oil level indicator tube into position.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the oil level indicator tube bolt.

    Tighten

    Tighten the oil level indicator tube bolt to 12 N.m (106 lb in).

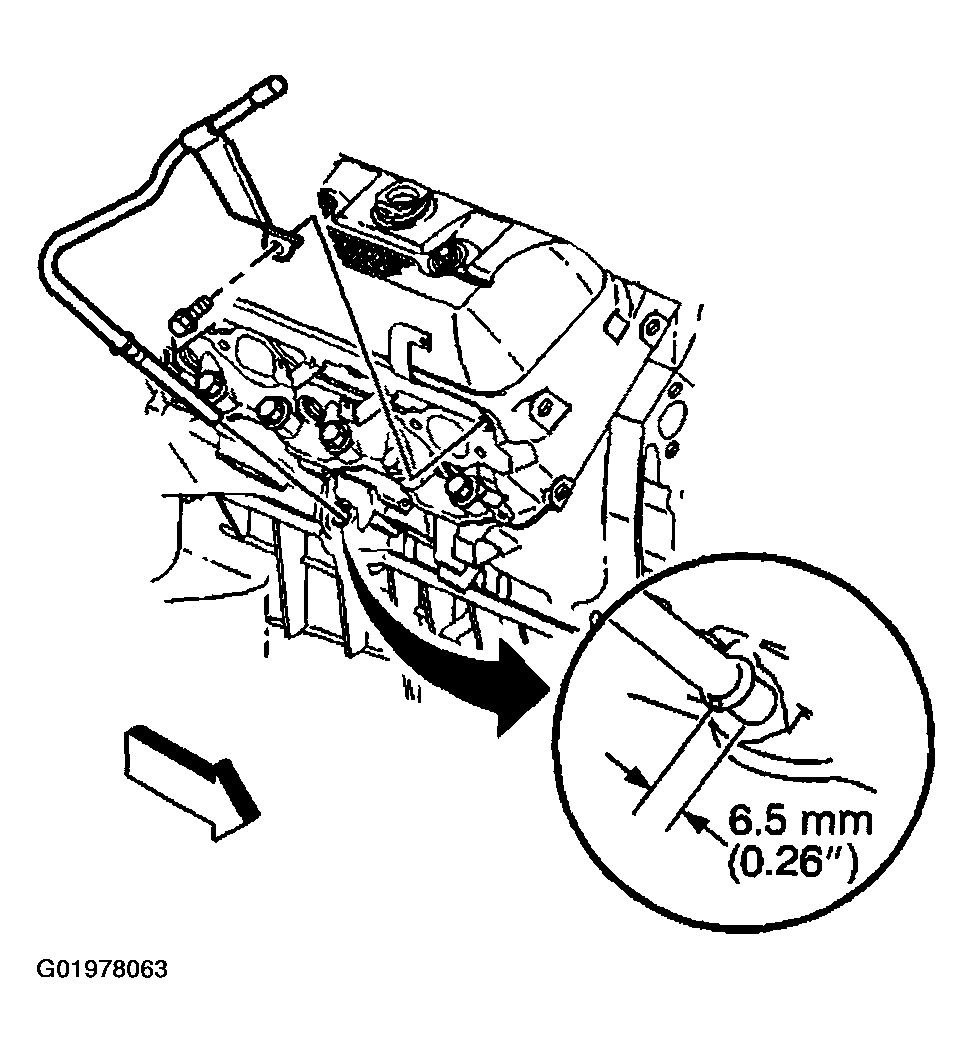

    Fig 1: Installing Oil Level Indicator Tube Bolt
    G01978063Courtesy of GENERAL MOTORS CORP.
  4. Install the oil level indicator into the oil level indicator tube, if required.

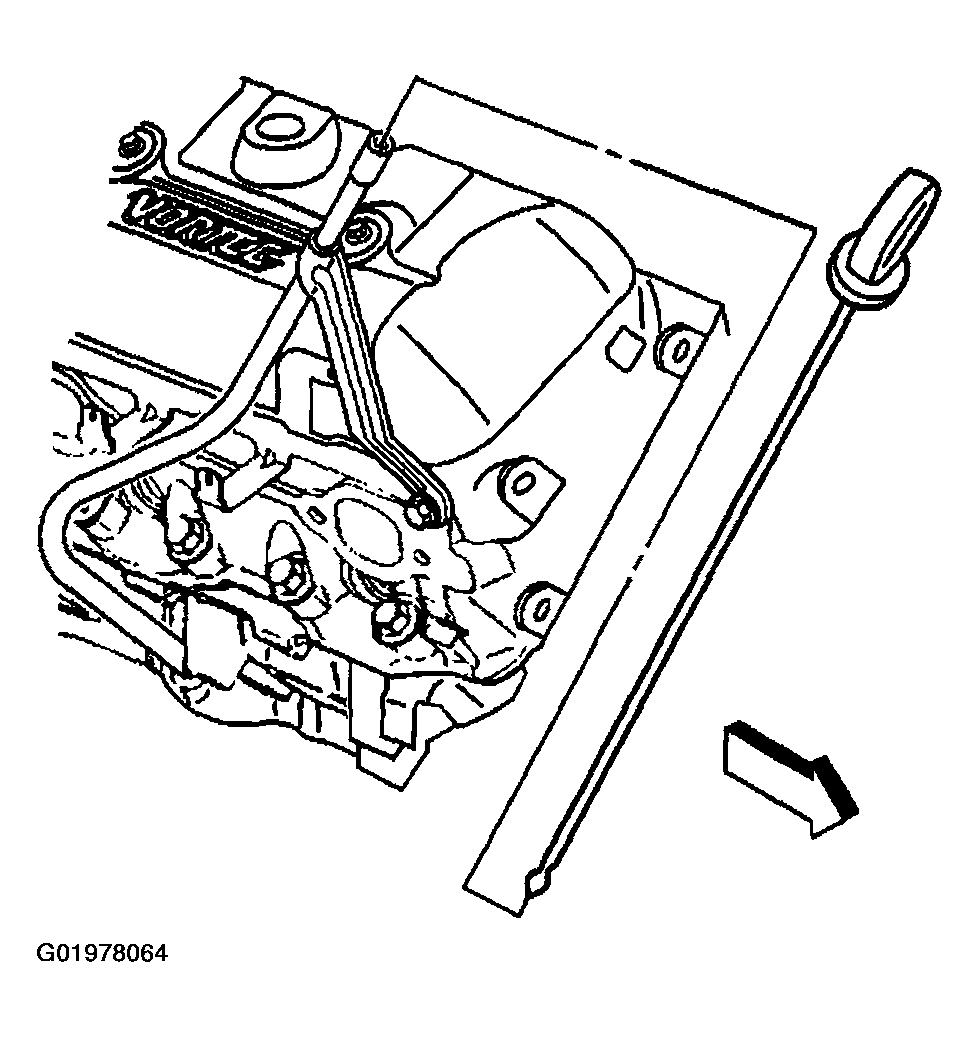

    Fig 2: Installing Oil Lever Indicator
    G01978064Courtesy of GENERAL MOTORS CORP.
