Measuring Connecting Rod Bearing Side Clearance

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a feeler gage between the connecting rod caps and measure the connecting rod side clearance. The proper connecting rod side clearance specification is 0.15-0.44 mm (0.006-0.017 in).
  2. Connecting rod side clearances may also be measured with a dial indicator set.

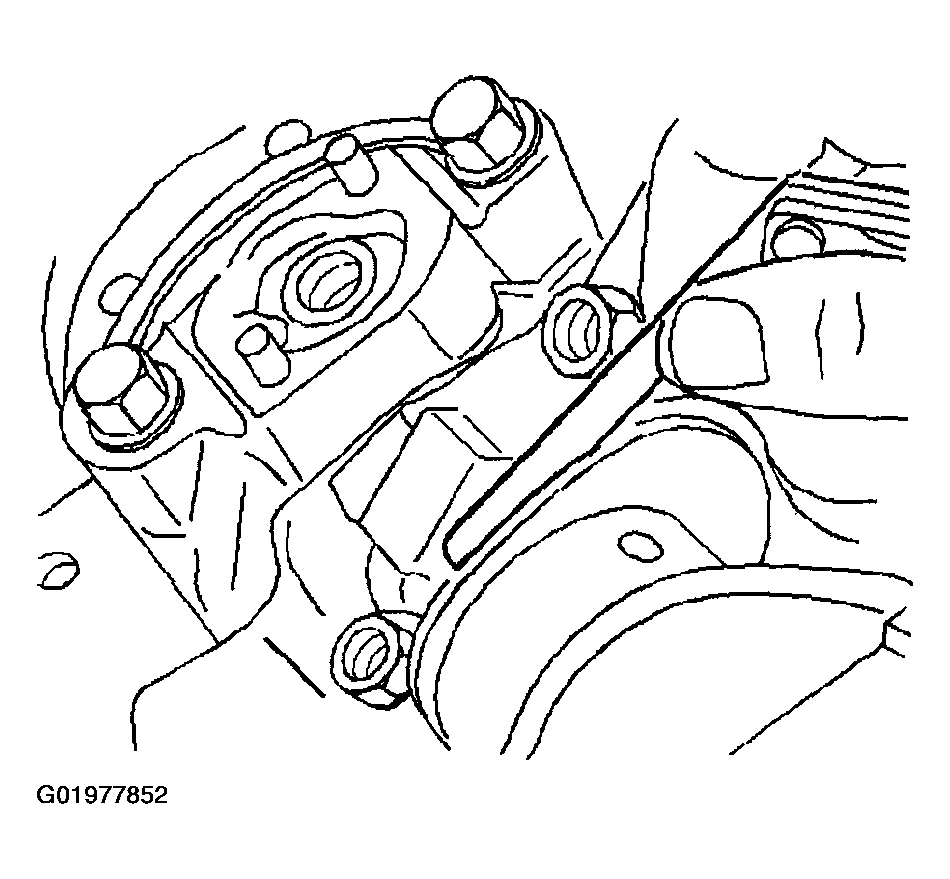

    Fig 1: Measuring Connecting Rod Side Clearance
    G01977852Courtesy of GENERAL MOTORS CORP.
