Engine Front Cover Removal

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft position sensor bolt.
  2. Remove the crankshaft position sensor.

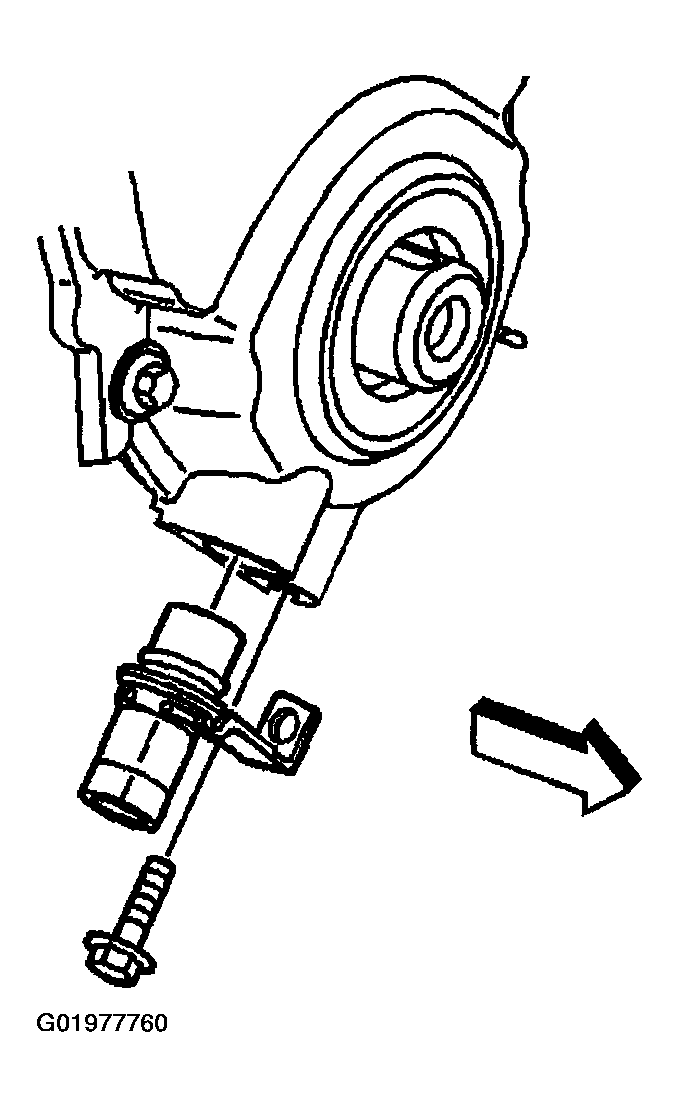

    Fig 1: Removing Crankshaft Position Sensor
    G01977760Courtesy of GENERAL MOTORS CORP.
  3. Remove the crankshaft position sensor seal, O-ring.
  4. Discard the crankshaft position sensor seal, O-ring.

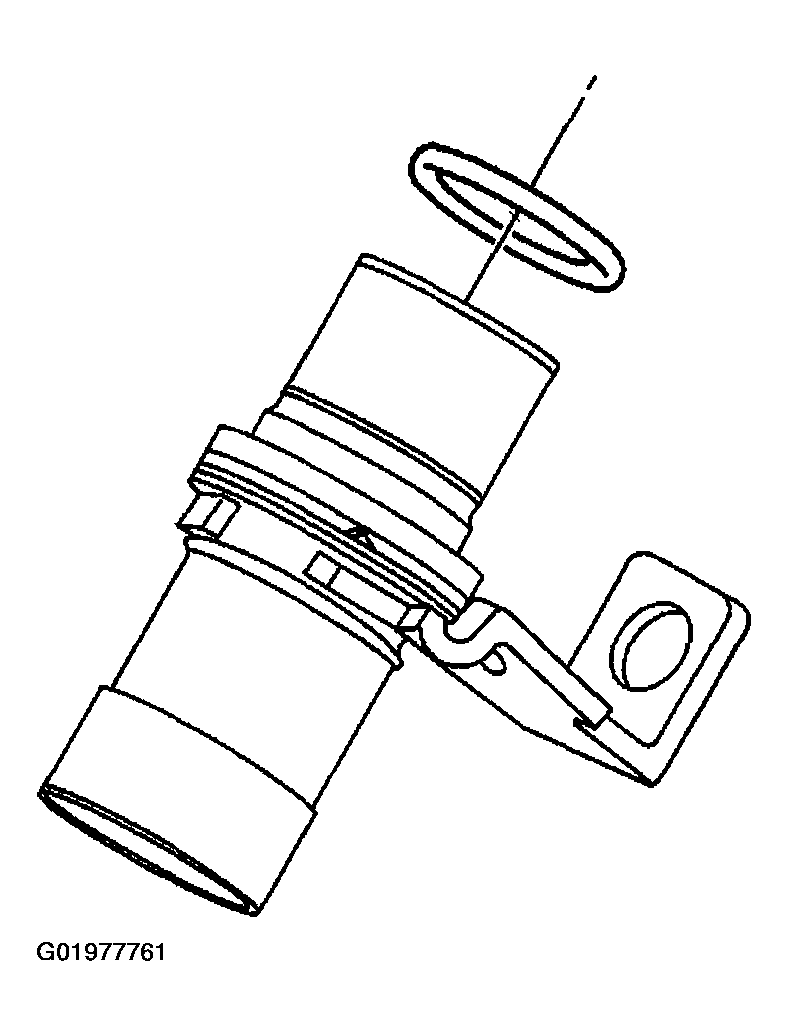

    Fig 2: Removing Crankshaft Position Sensor Seal
    G01977761Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine front cover bolts.

    Important:  After the composite engine front cover is removed do not reinstall the engine front cover. Always install a NEW engine front cover.

  6. Remove the engine front cover.
  7. Discard the engine front cover.

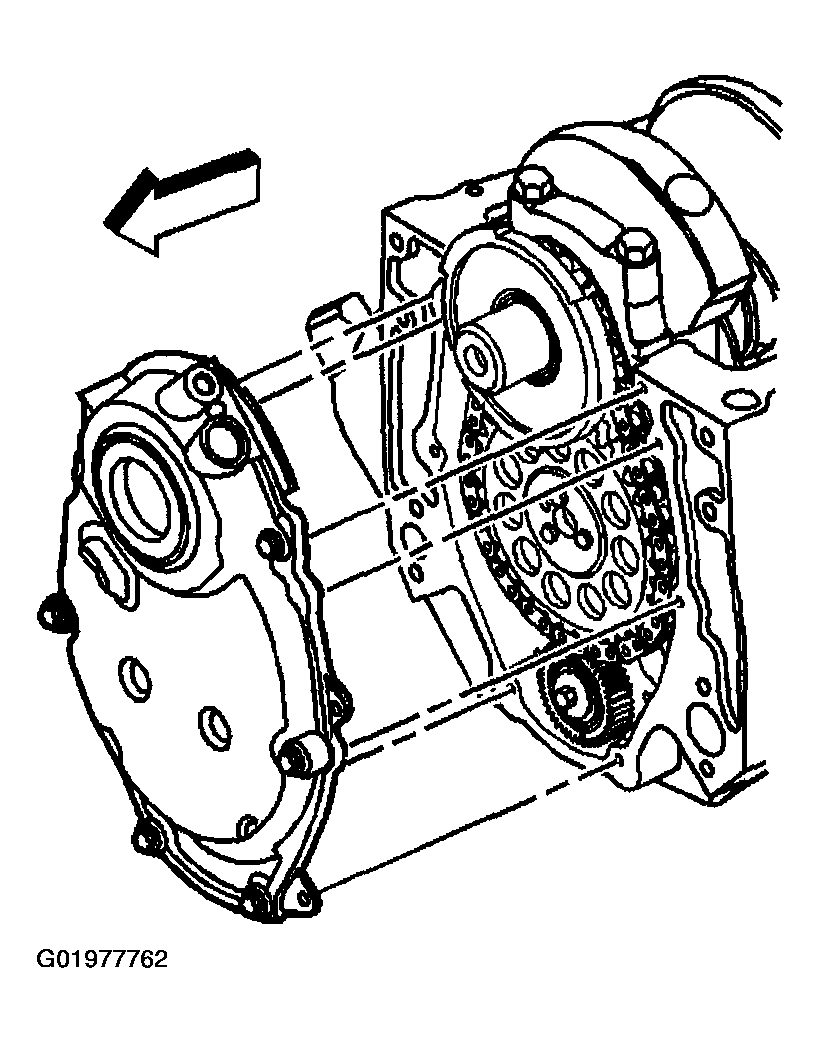

    Fig 3: Removing Engine Front Cover
    G01977762Courtesy of GENERAL MOTORS CORP.
