Distributor Removal

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition coil wire harness from the ignition coil and distributor cap.

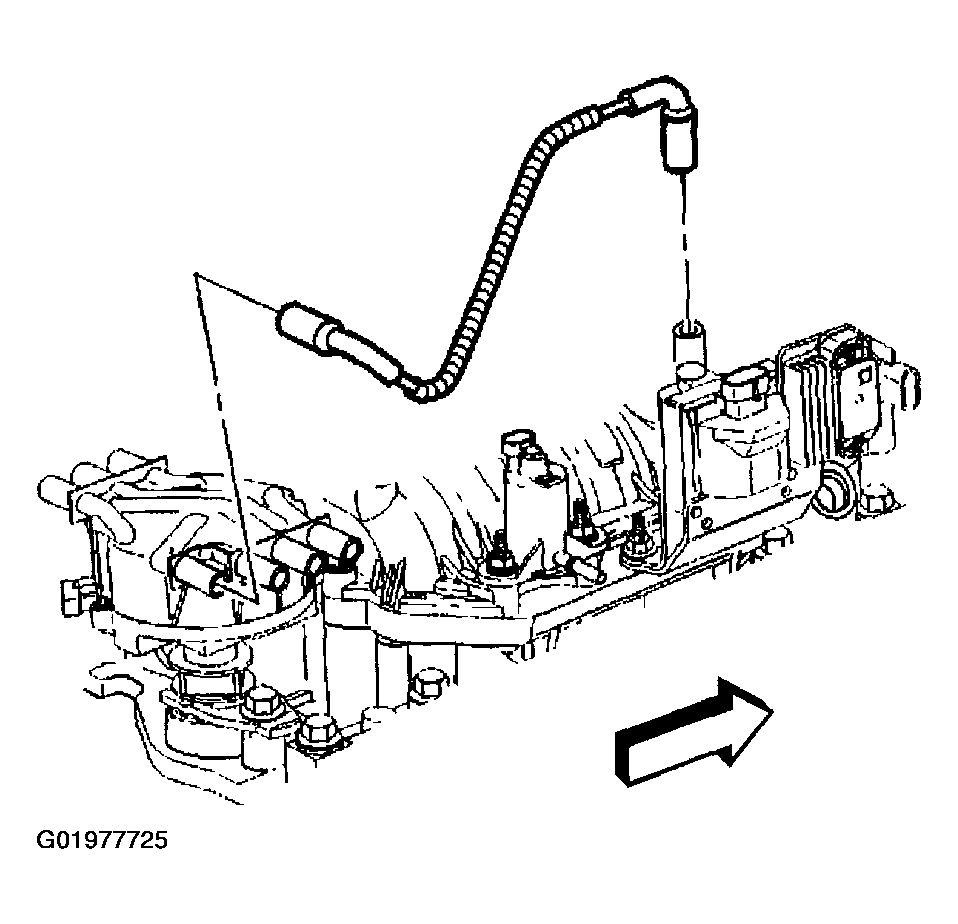

    Fig 1: Removing Ignition Coil Wire Harness
    G01977725Courtesy of GENERAL MOTORS CORP.
  2. Remove the distributor clamp bolt.
  3. Remove the distributor and the distributor clamp.

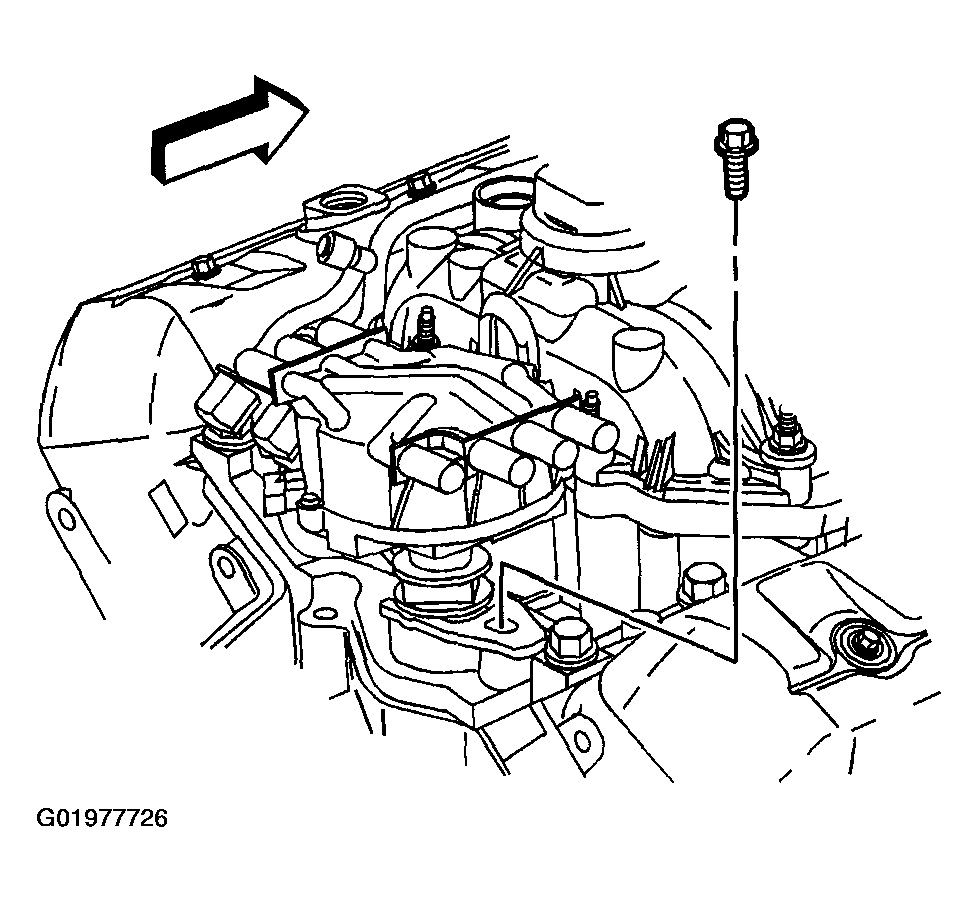

    Fig 2: Removing Distributor Clamp Bolt
    G01977726Courtesy of GENERAL MOTORS CORP.
  4. Remove the distributor gasket and discard.

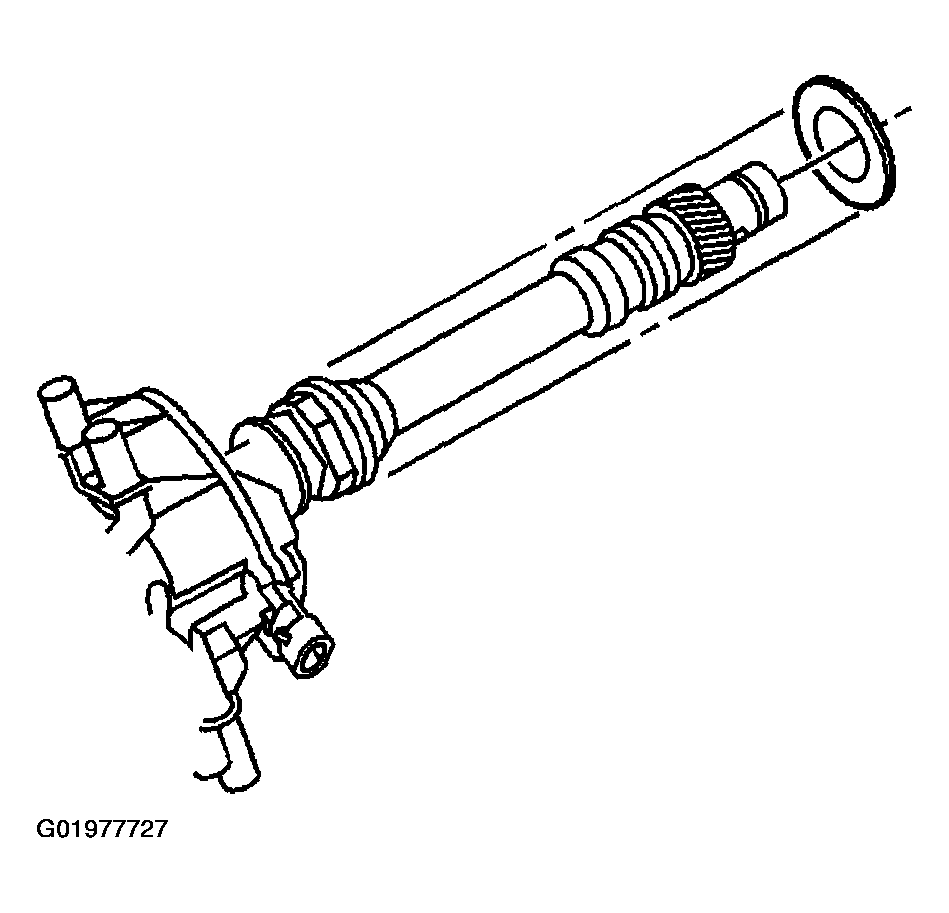

    Fig 3: Removing Distributor Gasket
    G01977727Courtesy of GENERAL MOTORS CORP.
