Cylinder Head Installation - Right

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 36660-A  Torque Angle Meter

  1. Clean the cylinder head gasket surfaces on the engine block.
  2. Inspect the cylinder head locator dowel pins for proper installation.

    The installation height should be 6.3-6.5 mm (0.248-0.256 in) (a).

  3. Clean the cylinder head gasket surfaces on the cylinder head.

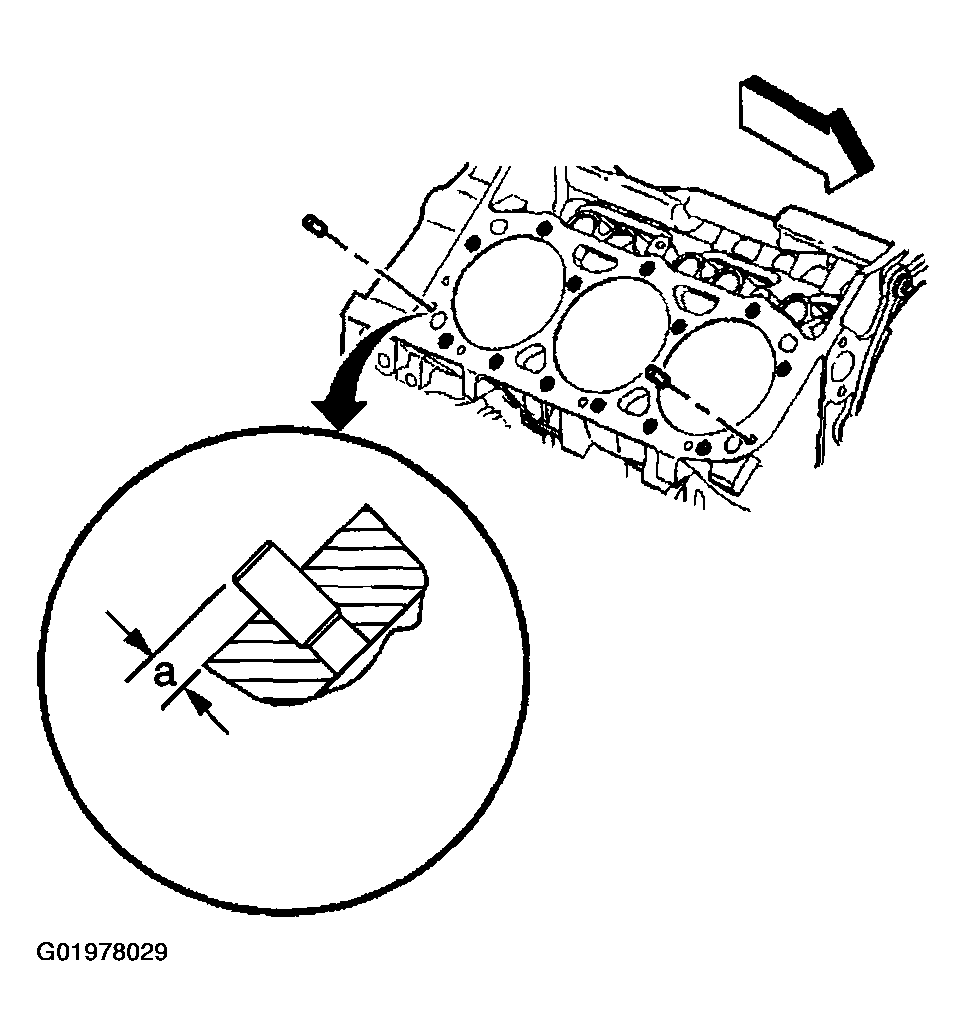

    Fig 1: Cleaning and Inspecting Cylinder Head Gasket
    G01978029Courtesy of GENERAL MOTORS CORP.

    Important:  Do not use any type sealer on the cylinder head gasket, unless specified.

  4. Install the NEW cylinder head gasket in position over the cylinder head locator dowel pins.

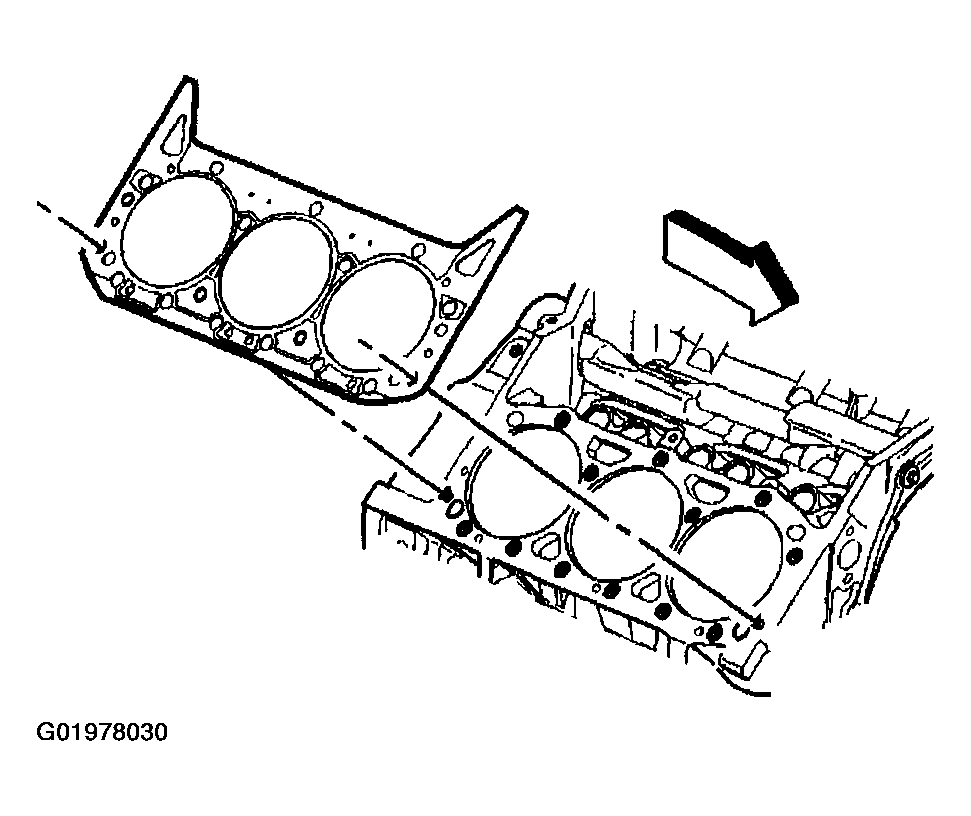

    Fig 2: Installing Cylinder Head Gasket
    G01978030Courtesy of GENERAL MOTORS CORP.
  5. Install the cylinder head onto the engine block.

    Guide the cylinder head carefully into place over the dowel pins and the cylinder head gasket.

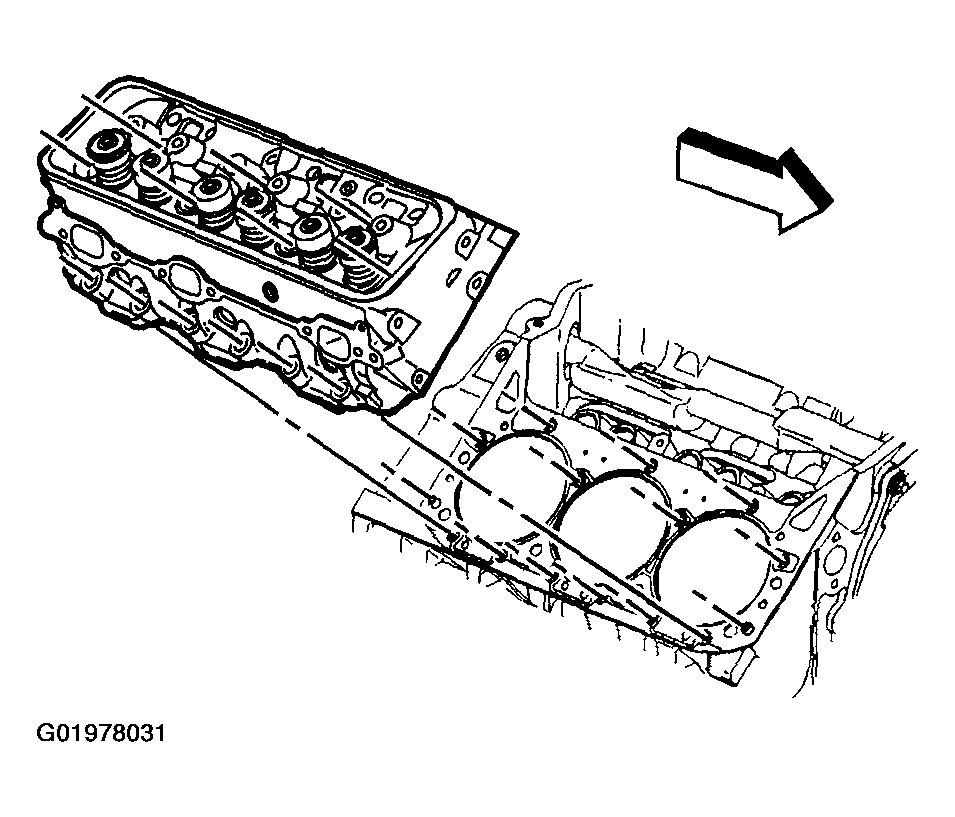

    Fig 3: Installing Cylinder Head
    G01978031Courtesy of GENERAL MOTORS CORP.
  6. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent, to the threads of the cylinder head bolts.
  7. Install the cylinder head bolts finger tight.

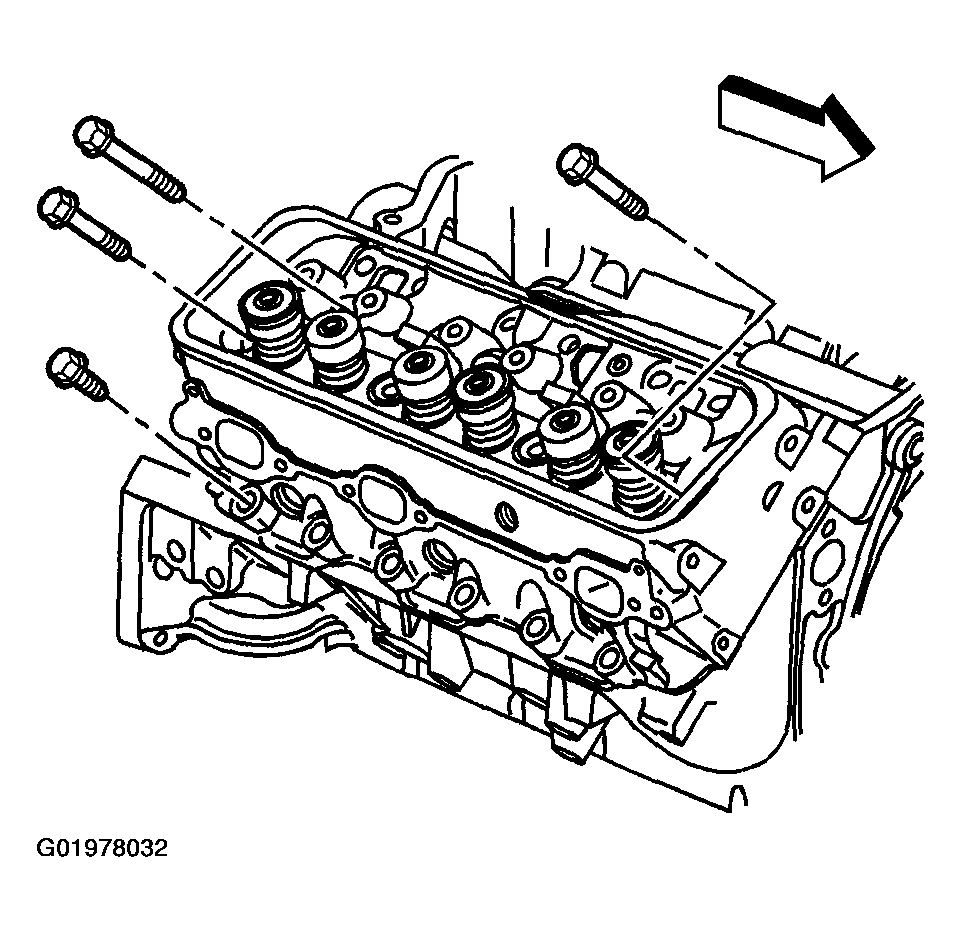

    Fig 4: Installing Cylinder Head Bolts
    G01978032Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  8. Tighten the cylinder head bolts in sequence on the first pass.

    Tighten

    Tighten the bolts in sequence on the first pass to 30 N.m (22 lb ft).

  9. Use the J 36660-A  in order to tighten the cylinder head bolts in sequence on the final pass.

    Tighten

    • Tighten the long bolts (1, 4, 5, 8, and 9) on the final pass in sequence to 75 degrees.
    • Tighten the medium bolts (12 and 13) on the final pass in sequence to 65 degrees.
    • Tighten the short bolts (2, 3, 6, 7, 10, and 11) on the final pass in sequence to 55 degrees.
      Fig 5: Cylinder Head Bolts Tightening Sequence
      G01978033Courtesy of GENERAL MOTORS CORP.
  10. Install the spark plug wire support and bolts.

    Tighten

    Tighten only the rear spark plug wire support bolt to 12 N.m (106 lb in).

  11. Remove the front spark plug wire support bolt.

    The front spark plug wire support bolt is used to fasten the oil level indicator tube, and will be installed within the oil level indicator tube installation procedure.

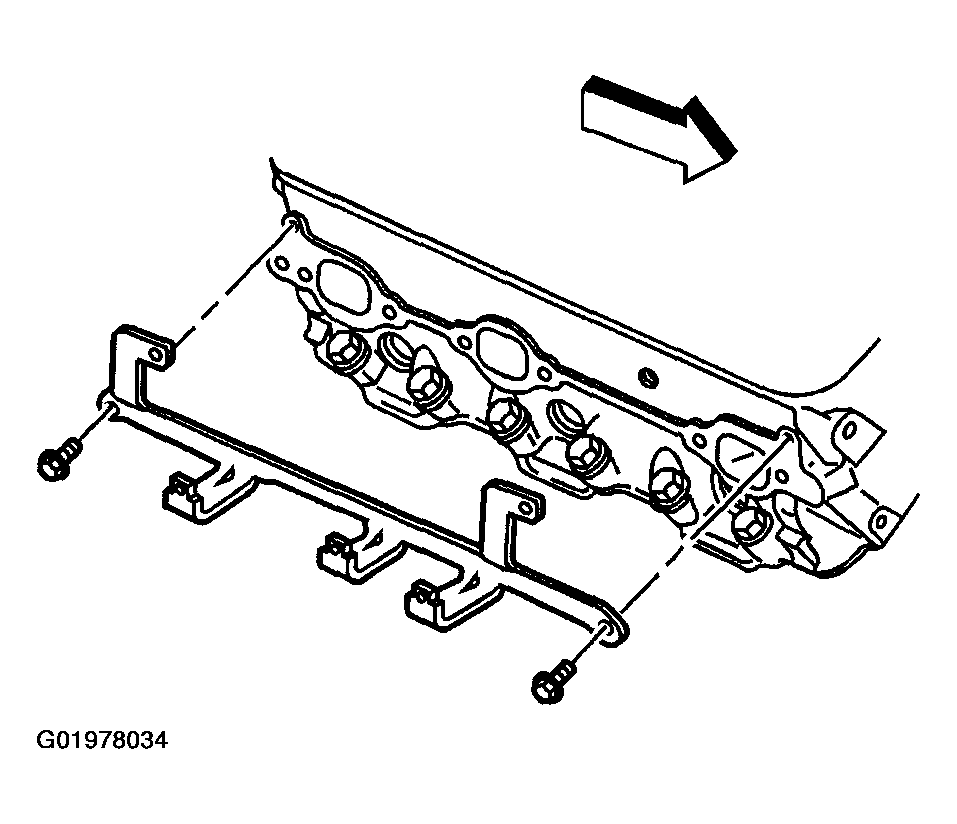

    Fig 6: Installing Spark Plug Wire Support
    G01978034Courtesy of GENERAL MOTORS CORP.
  12. Measure the NEW spark plugs for the proper gap. Adjust the spark plug gap if necessary.

    Specification

    Spark plug gap to 1.52 mm (0.060 in).

  13. Install the spark plugs.

    Tighten

    • Tighten the spark plugs for a USED cylinder head to 15 N.m (11 lb ft).
    • Tighten the spark plugs for the initial installation of a NEW cylinder head to 30 N.m (22 lb ft).

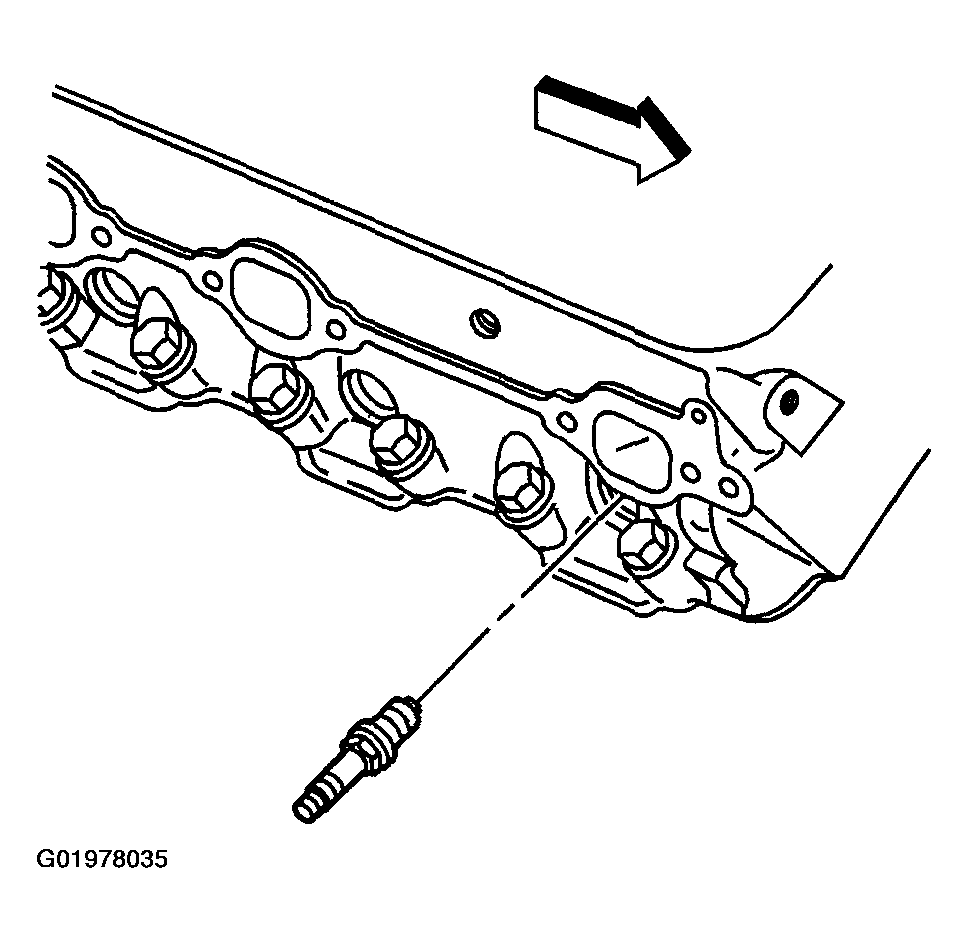

      Fig 7: Installing Spark Plugs
      G01978035Courtesy of GENERAL MOTORS CORP.
