Engine Identification

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

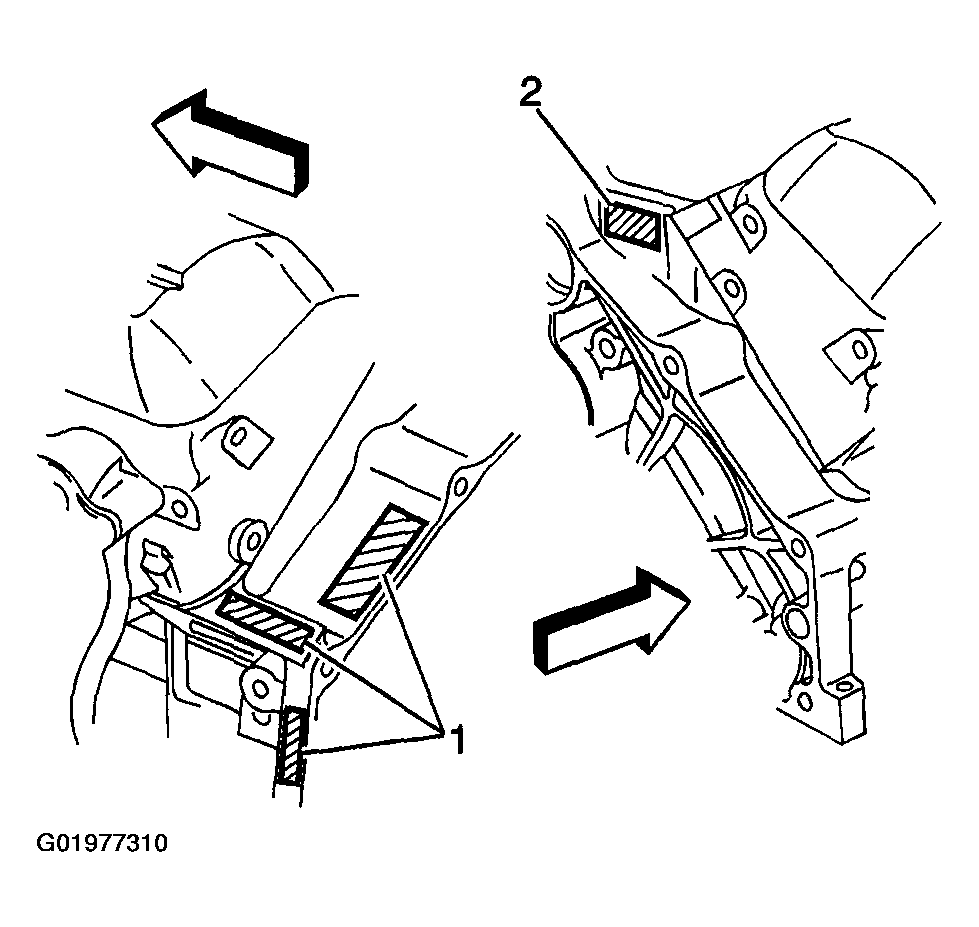

Fig 1: Engine Identification (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

The Vehicle Identification Number (VIN) Derivative is located on the left side rear of the engine block (1) or on the right side rear (2) and typically is a nine digit number stamped or laser etched onto the engine at the vehicle assembly plant.
- The first digit identifies the division.
- The second digit identifies the model year.
- The third digit identifies the assembly plant.
- The fourth through ninth digits are the last six digits of the Vehicle Identification Number (VIN).

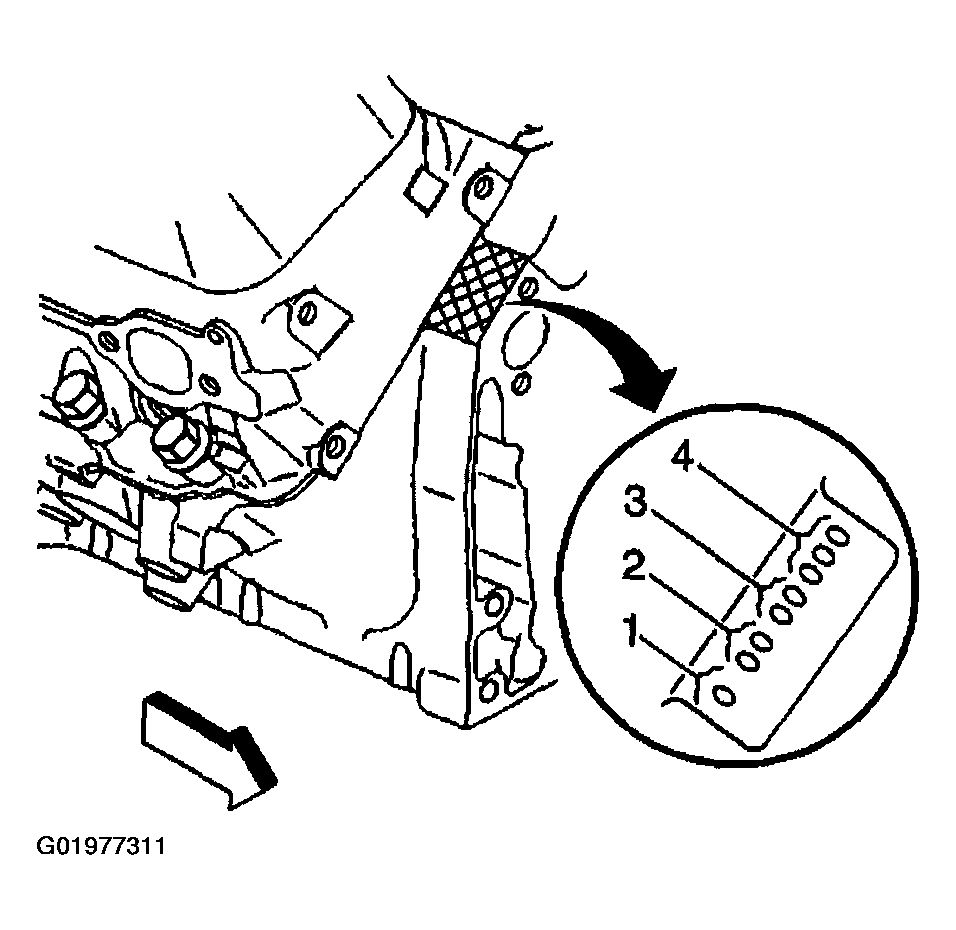

  Fig 2: Engine Identification (2 Of 3)
  Courtesy of GENERAL MOTORS CORP.
Engine built at the Tonawanda engine plant have the engine identification number located at the right front top of the engine block.
- The first digit (1) is the source code.
- The second and third digits (2) are the month of build.
- The forth and fifth digits (3) are the date of build.
- The sixth, seventh, and eighth digits (4) are the broadcast code.

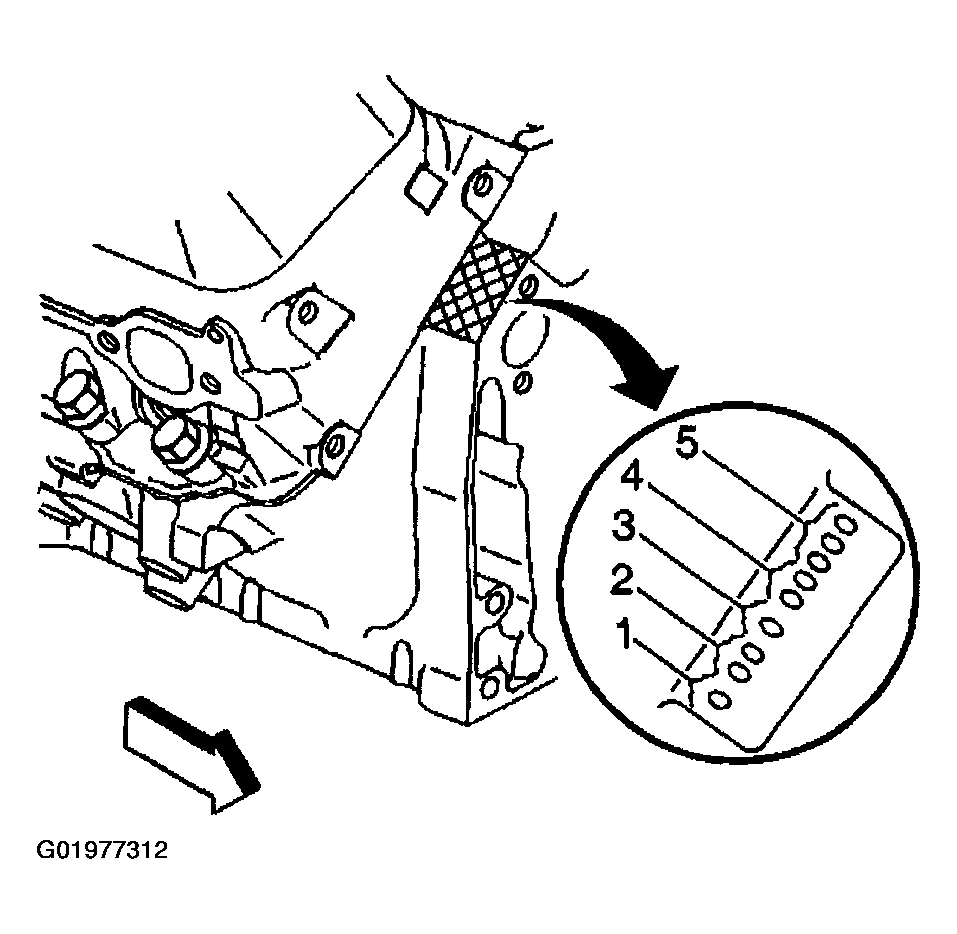

Fig 3: Engine Identification (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Engines built at the Romulus engine plant have the engine identification number located at the right front top of the engine block.
- The first digit (1) is the source code.
- The second and third digits (2) are the month of build.
- The fourth digit (3) is the hour of the build.
- The fifth and sixth digits (4) are the date of build.
- The seventh, eighth, and ninth digits (5) are the broadcast code.
