Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the right fender wheelhouse extension. Refer to WHEELHOUSE EXTENSION REPLACEMENT in Body Front End.
  3. Disconnect the engine oil pressure gauge sensor electrical connector (2).
    Fig 1: Disconnecting Engine Oil Pressure Gauge Sensor Electrical Connector
    G01977028Courtesy of GENERAL MOTORS CORP.
  4. Using the J 41712  remove the engine oil pressure gauge sensor.

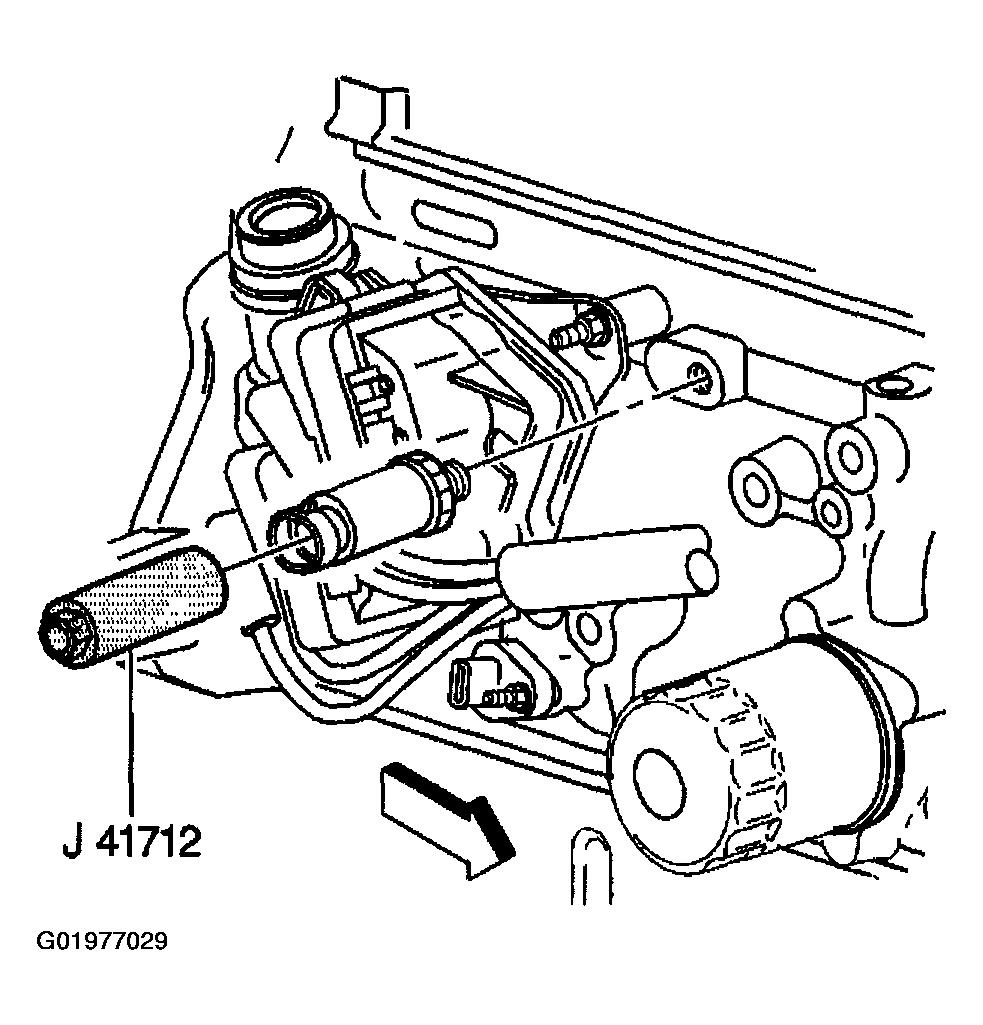

    Fig 2: Removing Engine Oil Pressure Gauge Sensor
    G01977029Courtesy of GENERAL MOTORS CORP.
