Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine front cover to the engine block.
  2. Ensure that the engine front cover gasket is properly installed in the groove in the engine front cover.
  3. Install the engine front cover by hand and engage it fully on the alignment dowel pins.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the engine front cover bolts.

    Tighten

    Tighten the engine front cover bolts to 11 N.m (97 lb in).

  5. Install the drive belt tensioner. Refer to DRIVE BELT TENSIONER REPLACEMENT  .
  6. Install the crankshaft balancer hub and the crankshaft pulley. Refer to CRANKSHAFT BALANCER AND HUB REPLACEMENT  .

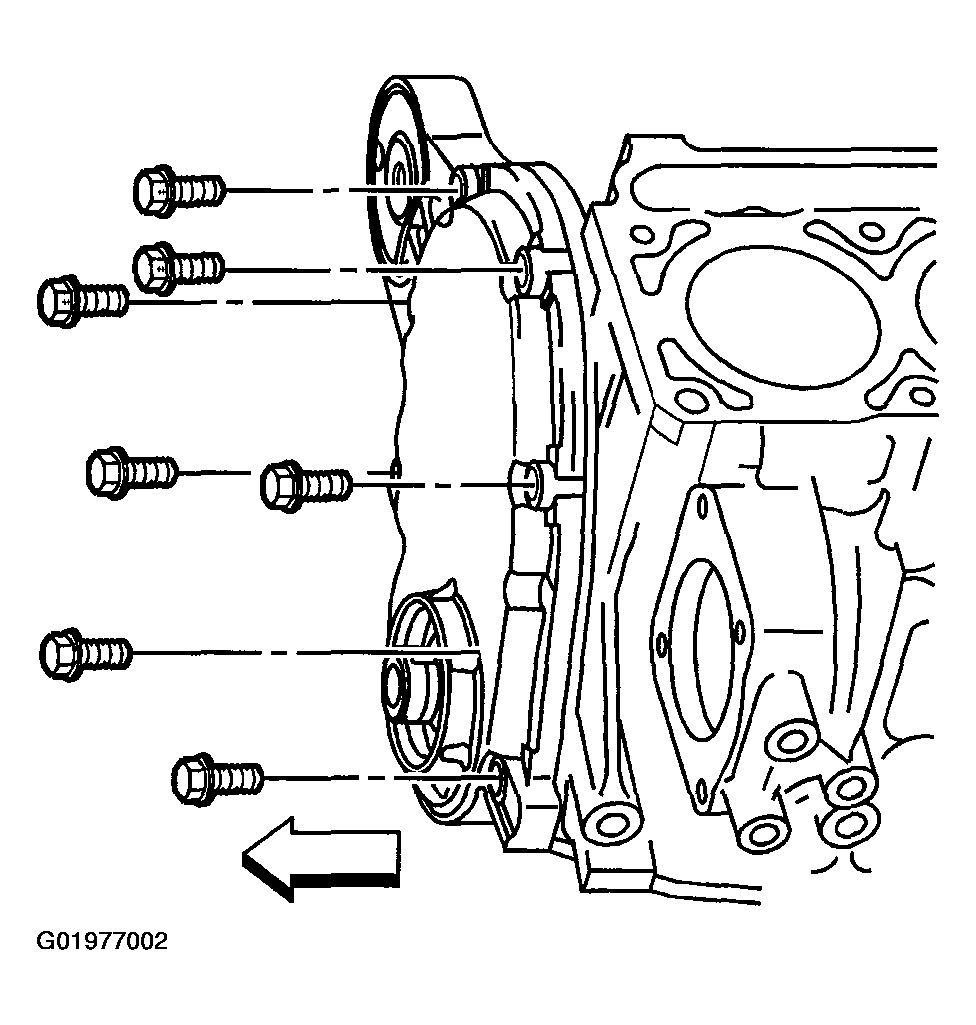

    Fig 1: Installing Engine Front Cover
    G01977002Courtesy of GENERAL MOTORS CORP.
