Water Pump Removal

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water pump drive pulley and bolts.
  2. Remove the water pump attaching bolts.

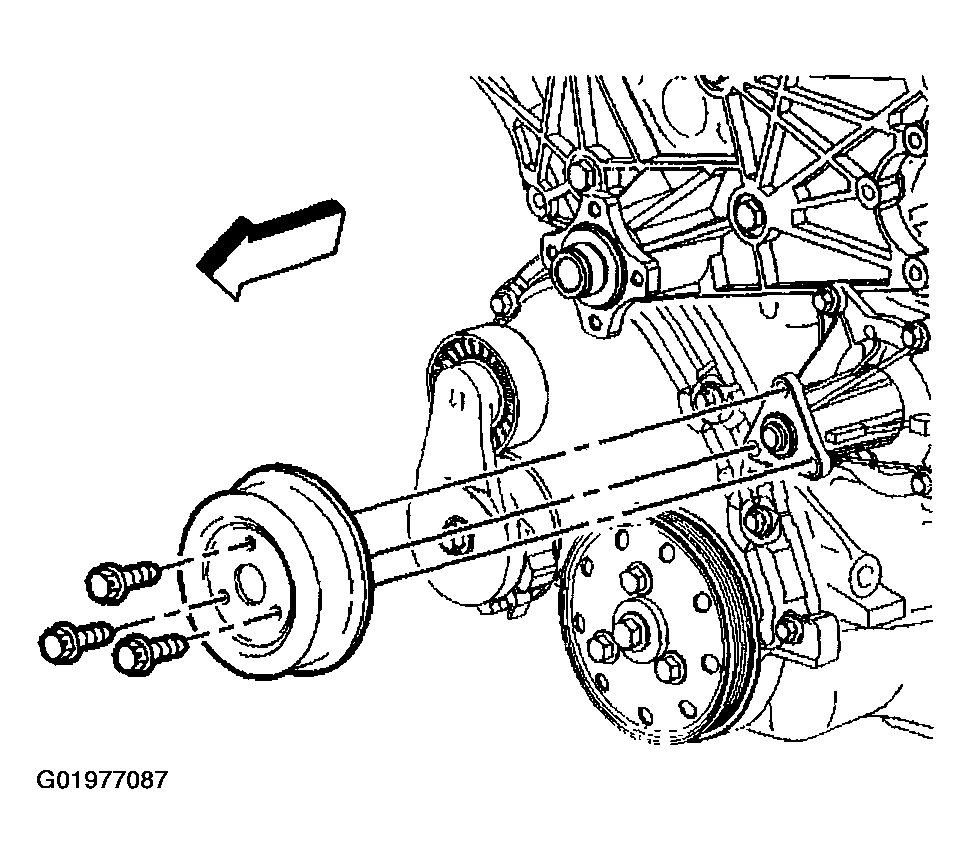

    Fig 1: Removing Water Pump Drive Pulley
    G01977087Courtesy of GENERAL MOTORS CORP.
  3. Remove the water pump.

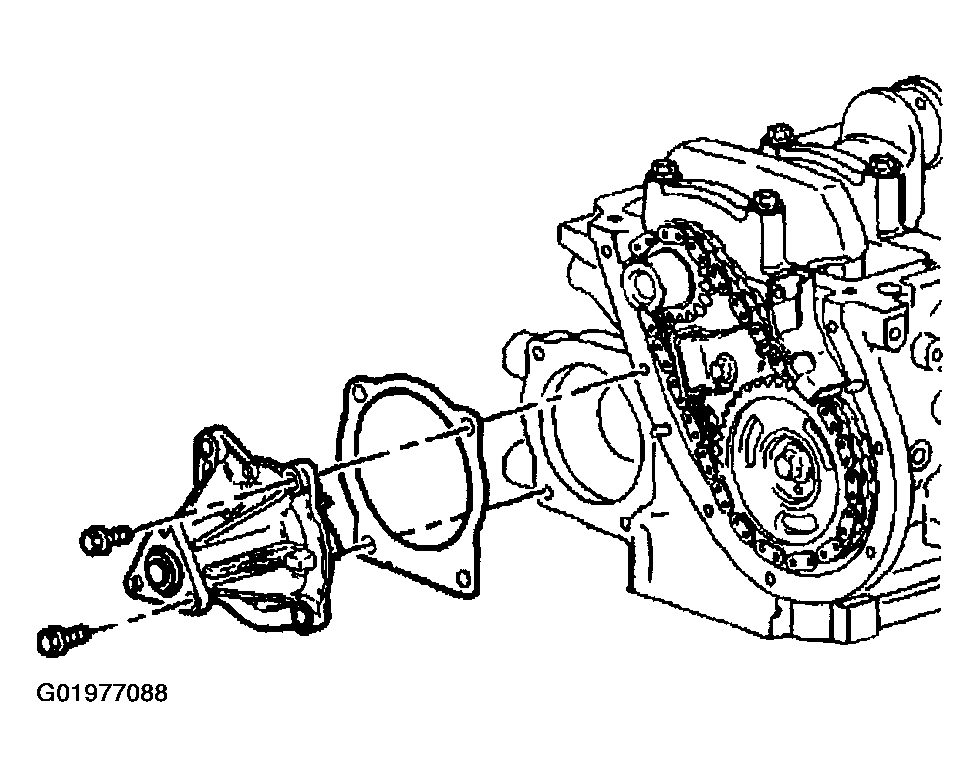

    Fig 2: Removing Water Pump
    G01977088Courtesy of GENERAL MOTORS CORP.
  4. Remove the water pump gasket.
    • Clean all sealing surfaces
    • Inspect all sealing surfaces for burrs or imperfections

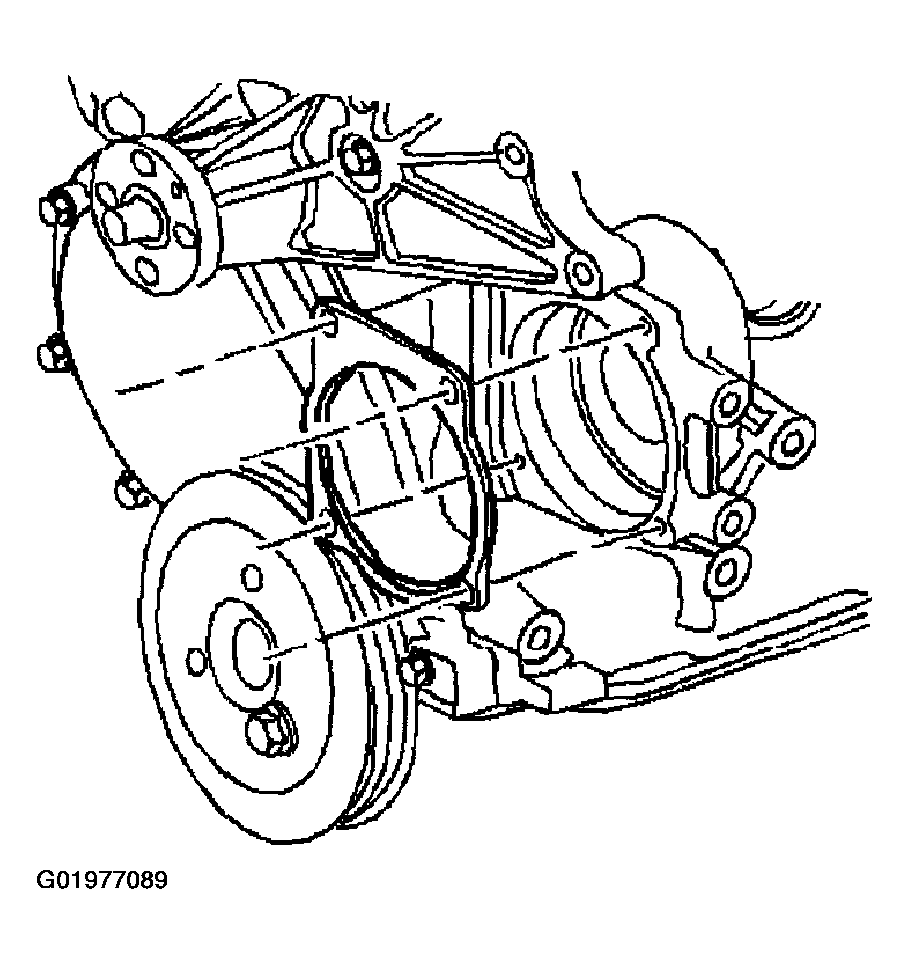

      Fig 3: Removing Water Pump Gasket
      G01977089Courtesy of GENERAL MOTORS CORP.
